Wago - 294-8022

WAGO

WAGO - 294-8022

Part number: 2948022

$1.20

Ships in manufacturer lead time. Contact us for an ETA.

2948022

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

WAGO component - equivalent to 2948022

Specifications

  • Primary brand: WAGO
  • GTIN code: 4050821098768
  • Order code / Manufacturer SKU: 294-8022
  • Manufacturer product status: Commercialized
  • Equivalent to: 2948022
  • EAN code: 4050821098768

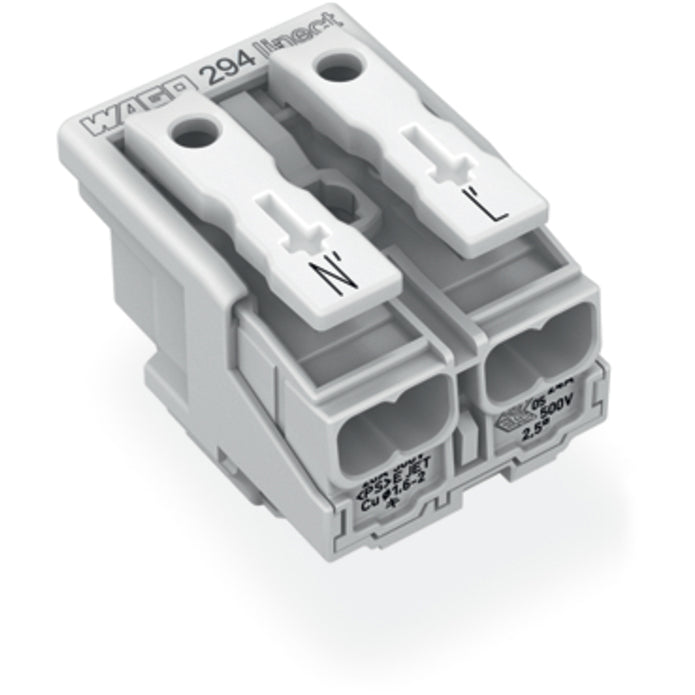

  • Manufacturer description: Lighting connector; push-button; external; for Linect; without ground contact; N'-L'; 2-pole; Cod. L; Lighting side for solid conductors; Inst. side for all conductor types; max. 2.5mm2; Surrounding air temperature max 85°C (T85); 2.5mm2; white
  • Location of origin: Switzerland
  • Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings -- Connection points|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60998-1|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 500V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 24A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (II / 2) Overvoltage category II / Pollution degree 2|Electrical data - Ratings per IEC/EN 2 - Ratings -- Connection points|Electrical data - Ratings per IEC/EN 2 - Ratings per -- IEC/EN 60998-2-2|Electrical data - Ratings per IEC/EN 2 - Rated voltage (II/2) -- 500V|Electrical data - Ratings per IEC/EN 2 - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN 2 - Rated current -- 24A|Electrical data - Ratings per IEC/EN 3 - Ratings -- Linectplug-in connection|Electrical data - Ratings per IEC/EN 3 - Ratings per -- IEC/EN 61984|Electrical data - Ratings per IEC/EN 3 - Rated voltage (II/2) -- 500V|Electrical data - Ratings per IEC/EN 3 - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN 3 - Rated current -- 16A|Connection data - Total number of potentials -- 2|Connection data - Number of connection types -- 4|Connection data - Connection 1 - Connection type 1 -- External 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Number of connection points -- 2|Connection data - Connection 1 - Actuation type -- Push-button|Connection data - Connection 1 - Solid conductor -- 0.5...2.5mm2 / 18...12 AWG|Connection data - Connection 1 - Solid conductor; push-in termination -- 0.5...2.5mm2 / 18...12 AWG|Connection data - Connection 1 - Stranded conductor -- 0.5...2.5mm2 / 18...14 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.5...2.5mm2 / 18...14 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.5...1.5mm2 / 18...16 AWG|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.5...1.5mm2 / 18...16 AWG|Connection data - Connection 1 - Fine-stranded conductor; with ferrule; push-in termination -- 0.5mm2 / 18 AWG|Connection data - Connection 1 - Strip length -- 8...9mm / 0.31...0.35"|Connection data - Connection 1 - Pole number -- 2|Connection data - Connection 2 - Connection type -- Internal 2|Connection data - Connection 2 - Connection technology -- PUSH WIRE|Connection data - Connection 2 - Number of connection points -- 1|Connection data - Connection 2 - Actuation type -- Push-in|Connection data - Connection 2 - Solid conductor -- 0.5...2.5mm2 / 18...14 AWG|Connection data - Connection 2 - Fine-stranded conductor; with insulated ferrule -- 0.5...1mm2 / 18...14 AWG|Connection data - Connection 2 - Fine-stranded conductor; with uninsulated ferrule -- 0.5...1.5mm2 / 18...16 AWG|Connection data - Connection 2 - Strip length -- 8...9mm / 0.31...0.35"|Connection data - Connection 3 - Connection type -- Internal 3|Connection data - Connection 3 - Connection technology -- PUSH WIRE|Connection data - Connection 3 - Number of connection points -- 1|Connection data - Connection 3 - Actuation type -- Push-in|Connection data - Connection 3 - Solid conductor -- 0.5...1.5mm2 / 18...16 AWG|Connection data - Connection 3 - Fine-stranded conductor; with insulated ferrule -- 0.5...0.75mm2 / 18 AWG|Connection data - Connection 3 - Fine-stranded conductor; with uninsulated ferrule -- 0.5...1mm2 / 18...14 AWG|Connection data - Connection 3 - Strip length -- 8...9mm / 0.31...0.35"|Connection data - Connection 4 - Connection type -- Internal 4|Connection data - Connection 4 - Connection technology -- PUSH WIRE|Connection data - Connection 4 - Number of connection points -- 1|Connection data - Connection 4 - Actuation type -- Push-in|Connection data - Connection 4 - Solid conductor -- 0.5...0.75mm2 / 18 AWG|Connection data - Connection 4 - Strip length -- 8...9mm / 0.31...0.35"|Physical data - Pin spacing -- 10mm / 0.394"|Physical data - Width -- 20mm / 0.787"|Physical data - Height -- 22.4mm / 0.882"|Physical data - Height from the surface -- 17mm / 0.669"|Physical data - Depth -- 27.3mm / 1.075"|Mechanical data - Technology -- Linect|Mechanical data - Marking -- N' L'|Material data - Color -- white|Material data - Material group -- IIIa|Material data - Insulation material (main housing) -- Polycarbonate (PC)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (ECu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.135MJ|Material data - Weight -- 6.6g|Environmental requirements - Temperature stability -- 120°C|Environmental requirements - T marking -- T85|Commercial data - Product Group -- 8 (Misc. Chassis Mount Blocks)|Commercial data - eClass 10.0 -- 27-14-11-06|Commercial data - eClass 9.0 -- 27-14-11-06|Commercial data - ETIM 9.0 -- EC001284|Commercial data - ETIM 8.0 -- EC001284|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 1000 pcs|Commercial data - Packaging type -- Foil|Commercial data - Country of origin -- CH|Commercial data - GTIN -- 4050821098768|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - REACH Candidate List Substance -- Perfluorobutane sulfonic acid (PFBS) and its salts|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption|Environmental Product Compliance - SCIP notification number (Austria) -- b4fc0703-228e-4a5a-9af3-68ce9d601216|Environmental Product Compliance - SCIP notification number (Belgium) -- 9df8b7af-881a-4b42-9168-25081c32c7d0|Environmental Product Compliance - SCIP notification number (Bulgaria) -- 9434578d-7a84-4371-9065-7e8fadb38209|Environmental Product Compliance - SCIP notification number (Czech Republic) -- b801b1e9-d46b-43ad-9f4c-9de0bd4f0d96|Environmental Product Compliance - SCIP notification number (Denmark) -- 7802eb64-d790-4d49-842c-a5b32f03876c|Environmental Product Compliance - SCIP notification number (Finland) -- 43a33ca9-8b49-4209-ac19-48d79435aa23|Environmental Product Compliance - SCIP notification number (France) -- 5db4455e-fbe0-4f7b-837a-0373496b56ab|Environmental Product Compliance - SCIP notification number (Germany) -- ec9aa4ab-b7e6-44d9-8410-119cfcd3b48f|Environmental Product Compliance - SCIP notification number (Hungary) -- ffed1d9b-9da9-4df7-8e0f-4ed8d719950a|Environmental Product Compliance - SCIP notification number (Italy) -- 96a02d43-6524-4da4-8fd4-5aed6e1753ff|Environmental Product Compliance - SCIP notification number (Netherlands) -- df1e5417-0112-46e5-8ec3-16f7c37a9630|Environmental Product Compliance - SCIP notification number (Poland) -- f14d1ad8-c238-43e2-999d-b95c58729939|Environmental Product Compliance - SCIP notification number (Romania) -- ee63c688-7345-46da-8525-28e02fea62c5|Environmental Product Compliance - SCIP notification number (Sweden) -- 8ceb5fd0-6ce4-4ac7-bf56-b5000f8a96cd|Other - Technology -- Linect
  • Level 1 category: Cabling systems
  • Level 2 category: Connectors & Inserts

Commercial data

  • Country of origin: CH
  • Customs tariff number: 85369010000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-06
  • eCl@ss 9.0: 27-14-11-06
  • ETIM 8.0: EC001284
  • ETIM 9.0: EC001284
  • GTIN: 4050821098768
  • Packaging type: Foil
  • Product Group: 8 (Misc. Chassis Mount Blocks)
  • PU (SPU): 1000 pcs

Connection data

  • Connection 1 - Actuation type: Push-button
  • Connection 1 - Connection technology: Push-in CAGE CLAMP®
  • Connection 1 - Connection type 1: External 1
  • Connection 1 - Fine-stranded conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
  • Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 0.5 mm² / 18 AWG
  • Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
  • Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
  • Connection 1 - Number of connection points: 2
  • Connection 1 - Pole number: 2
  • Connection 1 - Solid conductor: 0.5 … 2.5 mm² / 18 … 12 AWG
  • Connection 1 - Solid conductor; push-in termination: 0.5 … 2.5 mm² / 18 … 12 AWG
  • Connection 1 - Stranded conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
  • Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
  • Connection 2 - Actuation type: Push-in
  • Connection 2 - Connection technology: PUSH WIRE®
  • Connection 2 - Connection type: Internal 2
  • Connection 2 - Fine-stranded conductor; with insulated ferrule: 0.5 … 1 mm² / 18 … 14 AWG
  • Connection 2 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1.5 mm² / 18 … 16 AWG
  • Connection 2 - Number of connection points: 1
  • Connection 2 - Solid conductor: 0.5 … 2.5 mm² / 18 … 14 AWG
  • Connection 2 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
  • Connection 3 - Actuation type: Push-in
  • Connection 3 - Connection technology: PUSH WIRE®
  • Connection 3 - Connection type: Internal 3
  • Connection 3 - Fine-stranded conductor; with insulated ferrule: 0.5 … 0.75 mm² / 18 AWG
  • Connection 3 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 1 mm² / 18 … 14 AWG
  • Connection 3 - Number of connection points: 1
  • Connection 3 - Solid conductor: 0.5 … 1.5 mm² / 18 … 16 AWG
  • Connection 3 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
  • Connection 4 - Actuation type: Push-in
  • Connection 4 - Connection technology: PUSH WIRE®
  • Connection 4 - Connection type: Internal 4
  • Connection 4 - Number of connection points: 1
  • Connection 4 - Solid conductor: 0.5 … 0.75 mm² / 18 AWG
  • Connection 4 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
  • Number of connection types: 4
  • Total number of potentials: 2

Electrical data

  • Ratings per IEC/EN - Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
  • Ratings per IEC/EN - Nominal voltage (II/2): 500V
  • Ratings per IEC/EN - Rated current: 24A
  • Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
  • Ratings per IEC/EN - Ratings: Connection points
  • Ratings per IEC/EN - Ratings per: IEC/EN 60998-1
  • Ratings per IEC/EN 2 - Rated current: 24A
  • Ratings per IEC/EN 2 - Rated impulse withstand voltage (II/2): 4kV
  • Ratings per IEC/EN 2 - Rated voltage (II/2): 500V
  • Ratings per IEC/EN 2 - Ratings: Connection points
  • Ratings per IEC/EN 2 - Ratings per: IEC/EN 60998-2-2
  • Ratings per IEC/EN 3 - Rated current: 16A
  • Ratings per IEC/EN 3 - Rated impulse withstand voltage (II/2): 4kV
  • Ratings per IEC/EN 3 - Rated voltage (II/2): 500V
  • Ratings per IEC/EN 3 - Ratings: Linect® plug-in connection
  • Ratings per IEC/EN 3 - Ratings per: IEC/EN 61984

Environmental Product Compliance

  • REACH Candidate List Substance: Perfluorobutane sulfonic acid (PFBS) and its salts
  • RoHS Compliance Status: Compliant,No Exemption
  • SCIP notification number (Austria): b4fc0703-228e-4a5a-9af3-68ce9d601216
  • SCIP notification number (Belgium): 9df8b7af-881a-4b42-9168-25081c32c7d0
  • SCIP notification number (Bulgaria): 9434578d-7a84-4371-9065-7e8fadb38209
  • SCIP notification number (Czech Republic): b801b1e9-d46b-43ad-9f4c-9de0bd4f0d96
  • SCIP notification number (Denmark): 7802eb64-d790-4d49-842c-a5b32f03876c
  • SCIP notification number (Finland): 43a33ca9-8b49-4209-ac19-48d79435aa23
  • SCIP notification number (France): 5db4455e-fbe0-4f7b-837a-0373496b56ab
  • SCIP notification number (Germany): ec9aa4ab-b7e6-44d9-8410-119cfcd3b48f
  • SCIP notification number (Hungary): ffed1d9b-9da9-4df7-8e0f-4ed8d719950a
  • SCIP notification number (Italy): 96a02d43-6524-4da4-8fd4-5aed6e1753ff
  • SCIP notification number (Netherlands): df1e5417-0112-46e5-8ec3-16f7c37a9630
  • SCIP notification number (Poland): f14d1ad8-c238-43e2-999d-b95c58729939
  • SCIP notification number (Romania): ee63c688-7345-46da-8525-28e02fea62c5
  • SCIP notification number (Sweden): 8ceb5fd0-6ce4-4ac7-bf56-b5000f8a96cd

Environmental requirements

  • T marking: T85
  • Temperature stability: 120°C

Material data

  • Clamping spring material: Chrome-nickel spring steel (CrNi)
  • Color: white
  • Contact material: Electrolytic copper (ECu)
  • Contact plating: Tin
  • Fire load: 0.135MJ
  • Flammability class per UL94: V0
  • Insulation material (main housing): Polycarbonate (PC)
  • Material group: IIIa
  • Note (material data):
    Information on material specifications can be found here
  • Weight: 6.6g

Mechanical data

  • Marking: N' L'
  • Technology: Linect

Other

  • Technology: Linect

Physical data

  • Depth: 27.3 mm / 1.075 inches
  • Height: 22.4 mm / 0.882 inches
  • Height from the surface: 17 mm / 0.669 inches
  • Pin spacing: 10 mm / 0.394 inches
  • Width: 20 mm / 0.787 inches
