Wago - 704-5234

WAGO

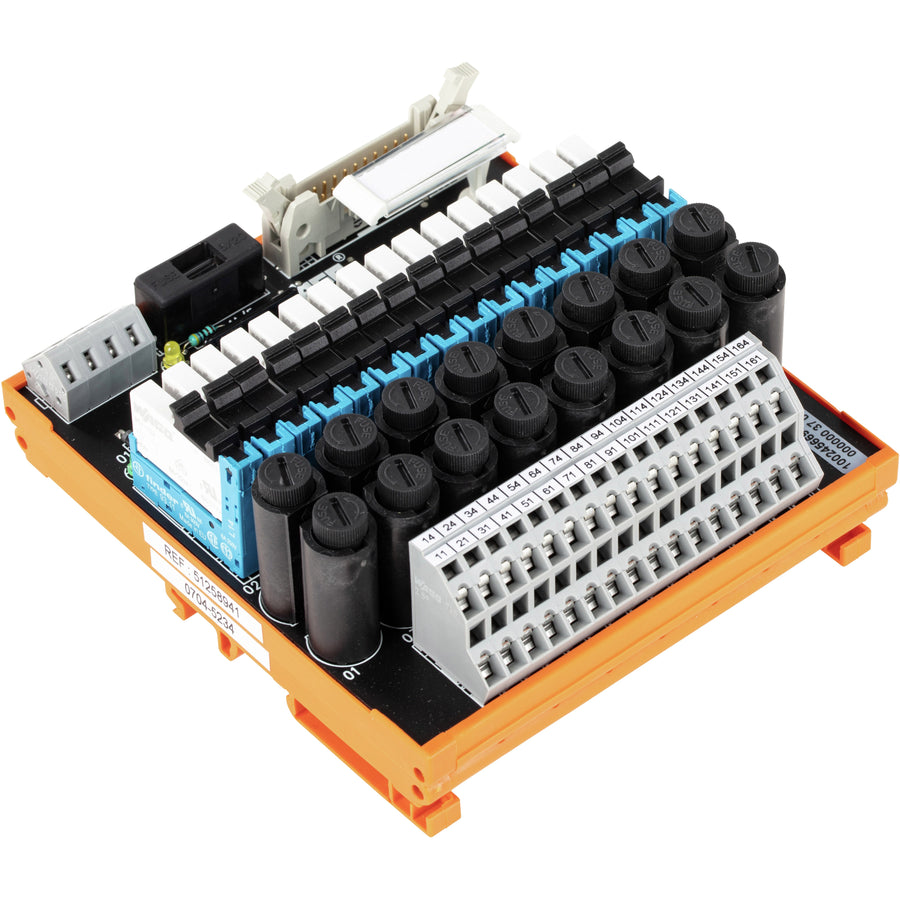

WAGO 704-5234 Rly. outputs interface module with output fus. - in mounting carrier

Part number: 60430348

$1,467.00

Ships in manufacturer lead time. Contact us for an ETA.

60430348

Request a quote

WAGO datasheet (PDF) View on wago.com PDF is served by WAGO's official datasheet service (wago.priintcloud.com).

Need help selecting this part? Contact an applications specialist →

Rly. outputs interface module with output fus. - in mounting carrier - WAGO (704 series) - 20-poles (20P) - supply voltage 21.6-26.4Vdc (24Vdc nom.) - with DIN 41651 20-pin male connector (system; vertical connection) + double-deck spring CAGE CLAMP 32-pin for 0.08...2.5mm2 cables (field) - DIN-35 rail mounting (115mm width) - rated for -25°C...+40°C ambient - equivalent to 7045234

Specifications

  • Primary brand: WAGO
  • Functions: Rly. outputs interface module
  • Design: output fus.|in mounting carrier
  • Poles: 20-poles (20P)
  • Supply voltage (DC): 21.6-26.4Vdc (24Vdc nom.)
  • Connection type: DIN 41651 20-pin male connector (system; vertical connection)|double-deck spring CAGE CLAMP 32-pin for 0.08...2.5mm2 cables (field)|spring CAGE CLAMP 4-pin for 0.08...2.5mm2 cables (supply)
  • Mounting mode: DIN-35 rail
  • Digital outputs: 16 x digital outputs (NO rly. contact type; 250Vac / 48Vdc)
  • Dimensions: H125mm x W115mm x D50mm
  • Net Width (mm): 115mm
  • Material: Silver-Tin (AgSnO) contacts
  • Ambient air temperature for operation: -25°C...+40°C
  • Ambient air temperature for storage: -40°C...+70°C
  • Humidity: ≤85% relative humidity (RH; non-condensing)
  • Customs Tariff Number: 85369010000
  • GTIN code: 4055143982733
  • ETIM code: EC002780
  • Order code / Manufacturer SKU: 704-5234
  • Manufacturer product status: Commercialized
  • Equivalent to: 7045234
  • EAN code: 4055143982733
  • Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (7(a))
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Automation components
  • Product title: Rly. outputs interface module - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85369010000
  • ECCN: NO US CLASSIFICATION
  • ETIM 8.0: EC002780
  • ETIM 9.0: EC002780
  • GTIN: 4055143982733
  • Packaging type: box
  • PU (SPU): 1 pcs

Compatibility

  • GE Fanuc - GE Fanuc 9030: IC693 MDL740|IC693 MDL742|IC693 MDL753
  • GE Fanuc - GE Fanuc RX3i: IC694 MDL753
  • Omron - Omron CJ1W: CJ1W-MD232|CJ1W-OD212|CJ1W-OD232|CJ1W-OD262
  • Rockwell - Rockwell Compact Logix: 1769 - OB16|1769 - OB16P|1769 - OB32|1769 - OB32T
  • Rockwell - Rockwell Control Logix: 1756 - OB16E|1756 - OB32
  • Schneider - Schneider Modicon M340: BMX DDO 1602|BMX DDO 3202K|BMX DDO 6402K|BMX DDM 3202K
  • Schneider - Schneider Modicon Quantum: 140 DDO 353 00|140 DDO 353 01|140 DDO 364 00|140 DVO 853 00
  • Schneider - Schneider Modicon TM3: TM3 DQ16T(G)|TM3 DQ16TK|TM3 DQ32TK
  • Schneider - Schneider TSX: TSX DSY 16T2|TSX DSY 32T2K|TSX DSY 64T2K|TSX DMY 28FK|TSX DMY 28RFK|TSX DSZ 32T2|TSX DMZ 28DT|TSX DMZ 28DTK|TSX DMZ 64DTK
  • Schneider - Schneider Twido: TM2 DDO 16TK|TM2 DDO 32TK
  • Siemens - Siemens ET200SP: 6ES7 132-6BH00-0AA0|6ES7 132-6BH00-2AA0|6ES7 132-6BH01-0BA0|6ES7 132-6BH01-2BA0
  • Siemens - Siemens S7-1500: 6ES7 511-1CK00-0AB0|6ES7 512-1CK00-0AB0|6ES7 522-1BH00-0AB0|6ES7 522-1BH01-0AB0|6ES7 522-1BH10-0AA0|6ES7 522-1BL00-0AB0|6ES7 522-1BL01-0AB0|6ES7 522-1BL10-0AA0|6ES7 522-1BP00-0AA0|6ES7 523-1BL00-0AA0
  • Siemens - Siemens S7-300: 6ES7 313-5BE01-0AB0|6ES7 313-5BG04-0AB0|6ES7 313-6BE01-0AB0|6ES7 313-6BF03-0AB0|6ES7 313-6CE01-0AB0|6ES7 313-6CF03-0AB0|6ES7 314-6BF01-0AB0|6ES7 314-6BG03-0AB0|6ES7 314-6CF01-0AB0|6ES7 314-6CG03-0AB0|6ES7 322-1BH01-0AA0|6ES7 322-1BH10-0AA0|6ES7 322-1BH80-0AA0|6ES7 322-1BL00-0AA0|6ES7 322-1BP00-0AA0|6ES7 322-1EH01-0AA0|6ES7 322-8BH01/8BH10-0AB0|6ES7 323-1BL00-0AA0
  • Siemens - Siemens S7-400: 6ES7 422-1BL00-0AA0
  • WAGO - WAGO I/O System 750: 750-1500
  • WAGO - WAGO I/O System 753: 753-530 (x2)

Connection data

  • Connection 1 - Connection type 1: System
  • Connection 1 - Mating direction: vertical
  • Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
  • Connection 1 - Pluggable connector: DIN 41651 connector; male connector
  • Connection 1 - Pole number 1: 20
  • Connection 2 - Connection type: Field
  • Connection 2 - Design 2: PCB terminal blocks (double-deck)
  • Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Connection 2 - Pole number 2: 32
  • Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Connection 2 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
  • Connection 2 - WAGO connector 2: WAGO 736 Series
  • Connection 3 - Connection type: Power supply
  • Connection 3 - Design 3: PCB terminal blocks
  • Connection 3 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Connection 3 - Pole number 3: 4
  • Connection 3 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
  • Connection 3 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
  • Connection 3 - WAGO connector 3: WAGO 236 Series

Electrical data

  • Inputs/outputs: 16-channel relay output
  • Limiting continuous current: 1 A
  • Mechanical life: 10 x 10⁶ switching operations
  • Nominal operating voltage: 24 VDC
  • Number of make/switch-on contacts: 1
  • Operating voltage range: ±10 %
  • Specialty functions: With output fuse
  • Status indicator: Green LED (channel)|Yellow LED (power supply)
  • Switching power (resistive) max.: AC 1250 VA; DC 50 W
  • Switching Voltage, Max.: 250 VAC; 48 VDC
  • WAGO Basic Relay: 857-152

Environmental Product Compliance

  • CAS-No.: 7439-92-1|79-94-7
  • REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 7(a)
  • SCIP notification number (Austria): d6628236-769a-4a91-8bba-94a3c04241d6
  • SCIP notification number (Belgium): 42c45577-9329-4858-ad5e-3630d6e33628
  • SCIP notification number (Bulgaria): 37f0af9b-9d28-4bf6-a168-07f131b6ca5e
  • SCIP notification number (Czech Republic): 4a25ef78-c834-4b01-8a1d-c78c7f4495cc
  • SCIP notification number (Denmark): 80c652c7-7a2c-4f55-9532-676292173a1c
  • SCIP notification number (Finland): caec1f88-ef00-4ab8-a572-1f75247eddca
  • SCIP notification number (France): 20d35508-fdcc-4f98-8b65-29cca56ddfaa
  • SCIP notification number (Germany): 7cd8b269-cc2a-43c7-b362-bdcbdb9287c0
  • SCIP notification number (Hungary): 2293c3e4-0bc4-42ed-b63a-be2d49d0f507
  • SCIP notification number (Italy): 800d1941-45de-49d8-84eb-957aa9e2f8da
  • SCIP notification number (Netherlands): 4292f514-e675-4800-bce9-68f0e2779509
  • SCIP notification number (Poland): 08c035f6-bf23-45e5-a7ef-2b5dbecaa014
  • SCIP notification number (Romania): 31fadea0-2297-4db0-9ffe-a5b6d55b638e
  • SCIP notification number (Sweden): 176931be-3102-44e3-af4e-e06142c39b14

Environmental requirements

  • Ambient temperature (operation): -25 … +40 °C
  • Ambient temperature (storage): -40 … +70 °C
  • Relative humidity: ≤ 85 % (non-condensing)

Material data

  • Contact material (relay): AgSnO2
  • Fire load: 0.613MJ
  • Weight: 393.4g

Mechanical data

  • Mounting type: DIN-35 rail

Physical data

  • Depth from upper-edge of DIN-rail: 50 mm / 1.969 inches
  • Height: 125 mm / 4.921 inches
  • Width: 115 mm / 5.133 inches

Safety and protection

  • Dielectric strength (control/load circuit) (AC, 1 min): 4 kVrms
  • Dielectric strength (load/load circuit) (AC, 1 min): 1 kVrms
  • Pollution degree: 2
  • Rated impulse withstand voltage: 0.8kV
  • Rated voltage: 50V
