WAGO - 726-541

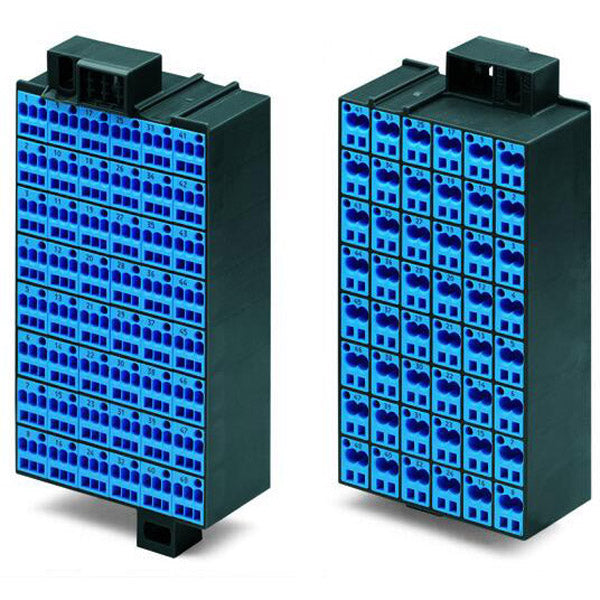

Marked matrix patchboard with 1-deck/level - Suitable for Ex I applications - with "1-48" marking - WAGO (726 series) - Blue module - 48 feed-through poles (48P) (6 columns x 8 points x 2 or 3 wires each) / 144-wires (clamps) - for 0.08mm2...1.5mm2 / for #28AWG...#16AWG - Rated current 10A - with CAGE CLAMP spring connections - Surface mounting - equivalent to 726541

Specifications

• Primary brand: WAGO
• Functions: Marked matrix patchboard
• Design: 1-deck/level|Suitable for Ex I applications
• Poles: 48 feed-through poles (48P) (6 columns x 8 points x 2 or 3 wires each)
• Rated current: (IEC) 10A
• Color: Blue module
• Connection capacity: 144-wires (clamps)
• Rated operating voltage (Ue): (IEC) 500V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...1.5mm2 fine stranded or solid conductors|for #28AWG...#16AWG fine stranded or solid conductors
• Mounting mode: Surface
• Dimensions: H132mm x W65.3mm x D36.5mm
• Material: Polyamide (PA) 66
• ETIM code: EC001604
• GTIN code: 4066966340242
• Customs Tariff Number: 85369010000
• eClass code: 27-24-26-08
• Order code / Manufacturer SKU: 726-541
• Manufacturer product status: Commercialized
• Equivalent to: 726541
• EAN code: 4044918980098
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7986|- CSA - CSA Group - C22.2 No. 158 - certificate 1101143|- KEMA/KEUR - DEKRA Certification B.V. - EN 60998 - certificate 71-127356|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Marking: "1-48"
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Marked matrix patchboard - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-08
• eCl@ss 9.0: 27-24-26-08
• ETIM 8.0: EC001604
• ETIM 9.0: EC001604
• GTIN: 4066966340242
• Packaging type: box
• PU (SPU): 10 (1) pcs

Connection data

• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Connection type 1: Page 1
• Connection 1 - Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Number of connection points: 3
• Connection 1 - Pole number: 48
• Connection 1 - Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Strip length: 8 … 10 mm / 0.31 … 0.39 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Connection 2 - Connection type: Side 2
• Connection 2 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 2 - Number of connection points: 2
• Connection 2 - Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 10A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: dark gray
• Fire load: 6.555MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Module color: blue
• Note (material data):
  Information on material specifications can be found here

• Weight: 273.7g

Mechanical data

• Marking: 1 … 48

Physical data

• Depth: 36.5 mm / 1.437 inches
• Height: 132 mm / 5.197 inches
• Width: 65.3 mm / 2.571 inches
