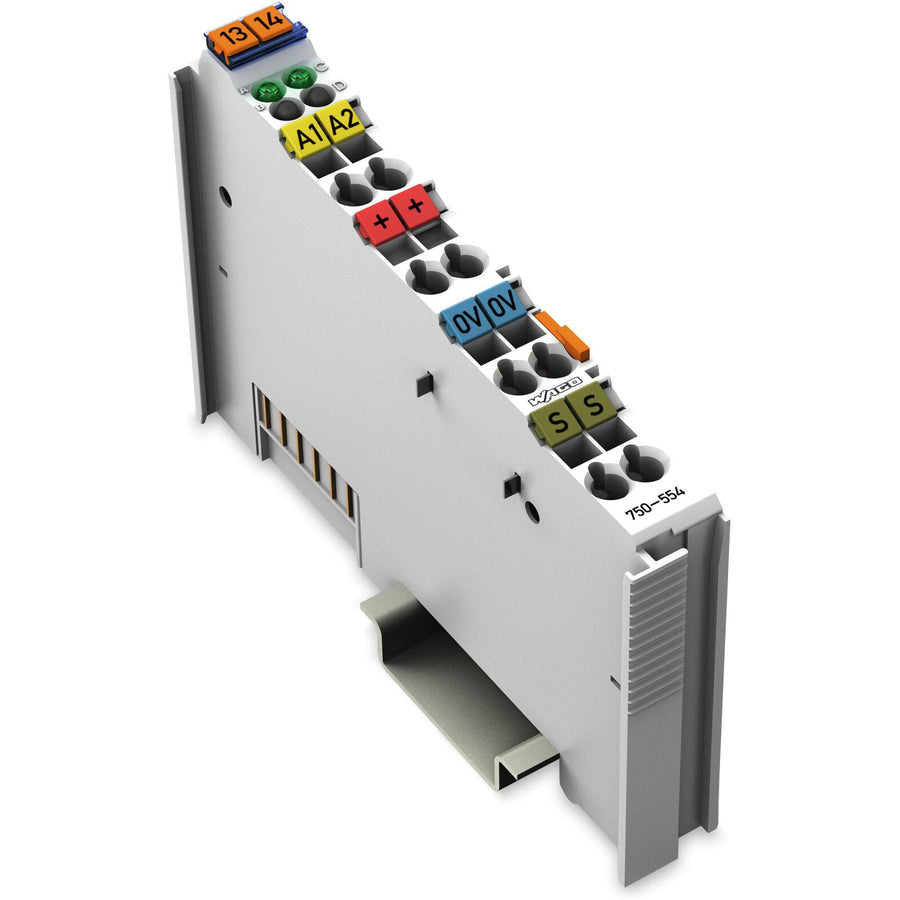

WAGO - 750-554

Standard analog output slice unit module - WAGO (750 series) - 2AO; 4-20mA - 2I/O [2AO (2 x analog outputs (4-20mA / 12-bits / 2ms conversion time; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750554

Specifications

• Primary brand: WAGO
• Functions: Standard analog output slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (A/C) green -- Function AO 1 / AO 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog outputs: 2 x analog outputs (4-20mA / 12-bits / 2ms conversion time; 2-wire)
• Measurement accuracy: +-0.1% (measuring error)|+-0.015% (temperature error)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 70mA (5Vdc; system supply)
• eClass code: 27-24-26-01
• ETIM code: EC001596
• GTIN code: 4045454393663
• Customs Tariff Number: 85389099990
• Order code / Manufacturer SKU: 750-554
• Manufacturer product status: Commercialized
• Equivalent to: 750554
• EAN code: 4045454393663
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AOM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard analog output slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4045454393663
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^®
• Connection type 1: Inputs/Outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 35f566e8-d312-42ff-b4a6-1f8c2b60751e
• SCIP notification number (Belgium): a404b2ad-7af1-40f9-b56a-8718cc931dbf
• SCIP notification number (Bulgaria): cecdce1f-f941-4c5a-9bc0-cfb02191a273
• SCIP notification number (Czech Republic): 85d34d70-6be0-4fa3-96a3-3e33f73aed8d
• SCIP notification number (Denmark): 37d773df-f136-4b2f-b0ce-1767ce3b1d51
• SCIP notification number (Finland): 13cf3d49-621f-4999-a455-f0d2089b0c35
• SCIP notification number (France): 568a51b4-c456-4a1f-89d6-505b002b39ec
• SCIP notification number (Germany): 7d041857-376b-439f-bb98-9198fedcd5e4
• SCIP notification number (Hungary): d9b0ce0c-3638-4ec6-8755-3ac5976027eb
• SCIP notification number (Italy): a374cd64-575d-40d9-9489-21872f8a9141
• SCIP notification number (Netherlands): 4bc0c674-9882-41a6-b2a6-36059cdd07ed
• SCIP notification number (Poland): c5d33d70-50a4-4c03-8a60-f63738426648
• SCIP notification number (Romania): 4502bac5-72d4-477b-b3cd-dc95431aefcc
• SCIP notification number (Sweden): c4d07446-a92f-44ee-9391-1702f52b6c79

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.028MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 50g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Actuator connection: 2 x (2-wire)
• Conversion time (typ.): 2ms
• Current consumption (5 V system supply): 70mA
• Data width: 2 x 16-bit data; 2 x 8-bit control/status (optional)
• Indicators: LED (A, C) green: Function AO 1, AO 2
• Isolation: 500 V system/field
• Linearity: ±10 µA
• Load impedance (current output): ≤ 600 Ω
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.1%
• Number of analog outputs: 2
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Output error, deviation (max.) of the upper-range value: 0.1%
• Resolution [bit]: 12bits
• Signal type: Current
• Signal type (current): 4 … 20 mADC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the output range value: 0.015%/K
• Temperature error (max.) of the upper-range value: 0.015%/K
• Total number of channels (module): 2
