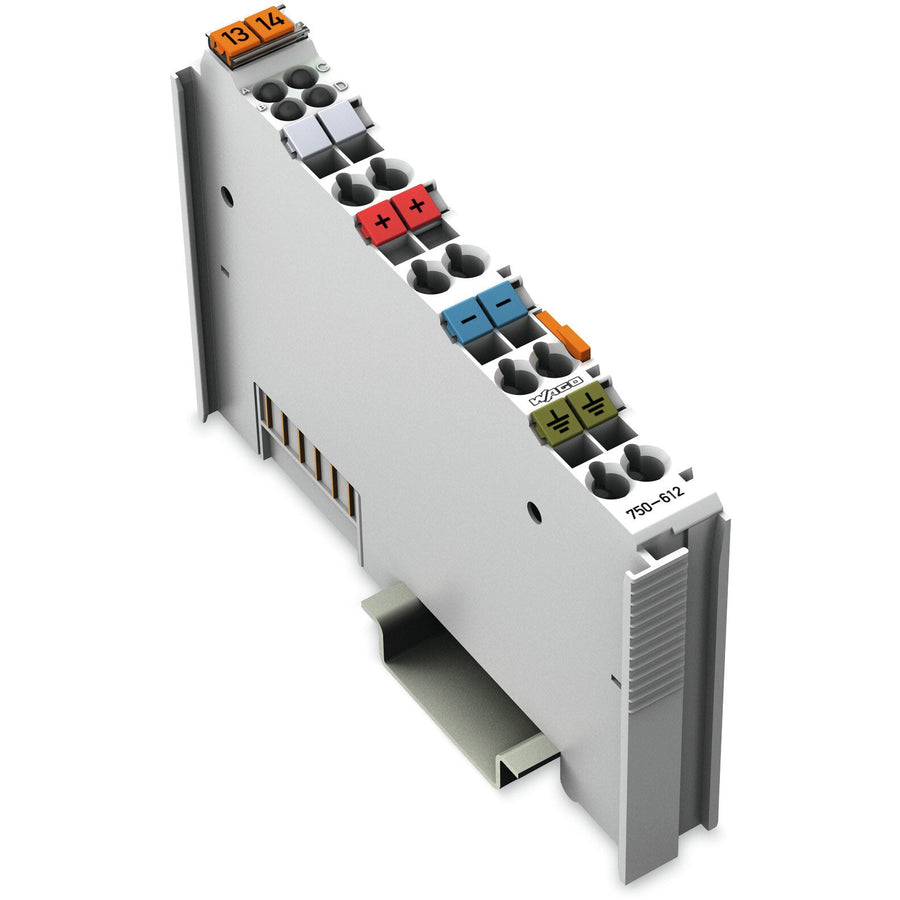

WAGO - 750-612

Part number: 750-612

$40.47

Ships in manufacturer lead time. Contact us for an ETA.

750-612

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

I.O. power supply module - DNV approved - WAGO (750 series) - 10A output - supply voltage 195.5-253Vac (230Vac nom.)/195.5-253Vdc (230Vdc nom.) - with CAGE CLAMP spring connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750612

Specifications

  • Primary brand: WAGO
  • Functions: I.O. power supply module
  • Design: DNV approved
  • Supply voltage (AC): 195.5-253Vac (230Vac nom.)
  • Supply voltage (DC): 195.5-253Vdc (230Vdc nom.)
  • Rated current: 10A
  • Connection type: CAGE CLAMP spring connections
  • Mounting mode: DIN-35 rail
  • Dimensions: H100mm x W12mm x D69.8mm
  • Net Width (mm): 12mm
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
  • Customs Tariff Number: 85389091890
  • GTIN code: 4045454393793
  • eClass code: 27-24-26-10
  • ETIM code: EC001600
  • Order code / Manufacturer SKU: 750-612
  • Manufacturer product status: Commercialized
  • Equivalent to: 750612
  • EAN code: 4045454393793
  • Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-SPP750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Automation components
  • Level 2 category: Programmable Logic Controllers & components
  • Level 3 category: Power supply units for PLCs
  • Product title: I.O. power supply module - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85389091890
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-24-26-10
  • eCl@ss 9.0: 27-24-26-10
  • ETIM 8.0: EC001600
  • ETIM 9.0: EC001600
  • GTIN: 4045454393793
  • Packaging type: box
  • Product Group: 15 (I/O System)
  • PU (SPU): 1 pcs

Connection data

  • Connectable conductor materials: Copper
  • Connection technology: field supply: 6 x CAGE CLAMP®
  • Connection type 1: Field supply
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

  • Ambient temperature (operation): 0 … +55 °C
  • Ambient temperature (storage): -40 … +85 °C
  • EMC emission of interference: per EN 61000-6-4, marine applications
  • EMC immunity to interference: per EN 61000-6-2, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
  • Operating altitude: 0 … 2000 m / 0 … 6562 ft
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25ppm
  • Pollution degree: 2 per IEC 61131-2
  • Protection type: IP20
  • Relative humidity (without condensation): 95%
  • Shock resistance: 15g per IEC 60068-2-27
  • Vibration resistance: 4g per IEC 60068-2-6

Material data

  • Color: light gray
  • Conformity marking: CE
  • Fire load: 1.211MJ
  • Housing material: Polycarbonate; polyamide 6.6
  • Weight: 43.6g

Mechanical data

  • Mounting type: DIN-35 rail

Physical data

  • Depth: 69.8 mm / 2.748 inches
  • Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
  • Height: 100 mm / 3.937 inches
  • Width: 12 mm / 0.472 inches

Technical data

  • Current carrying capacity (power jumper contacts): 10A
  • Number of outgoing power jumper contacts: 3
  • Signal type: Voltage
  • Signal type (voltage): 0 … 230 VAC/DC
  • Supply voltage (field): 230 VAC/DC (-15 … +10 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission (field-side supply voltage only) via spring contact
  • Supply voltage (system): 5 VDC; via data contacts
