WAGO - 750-626

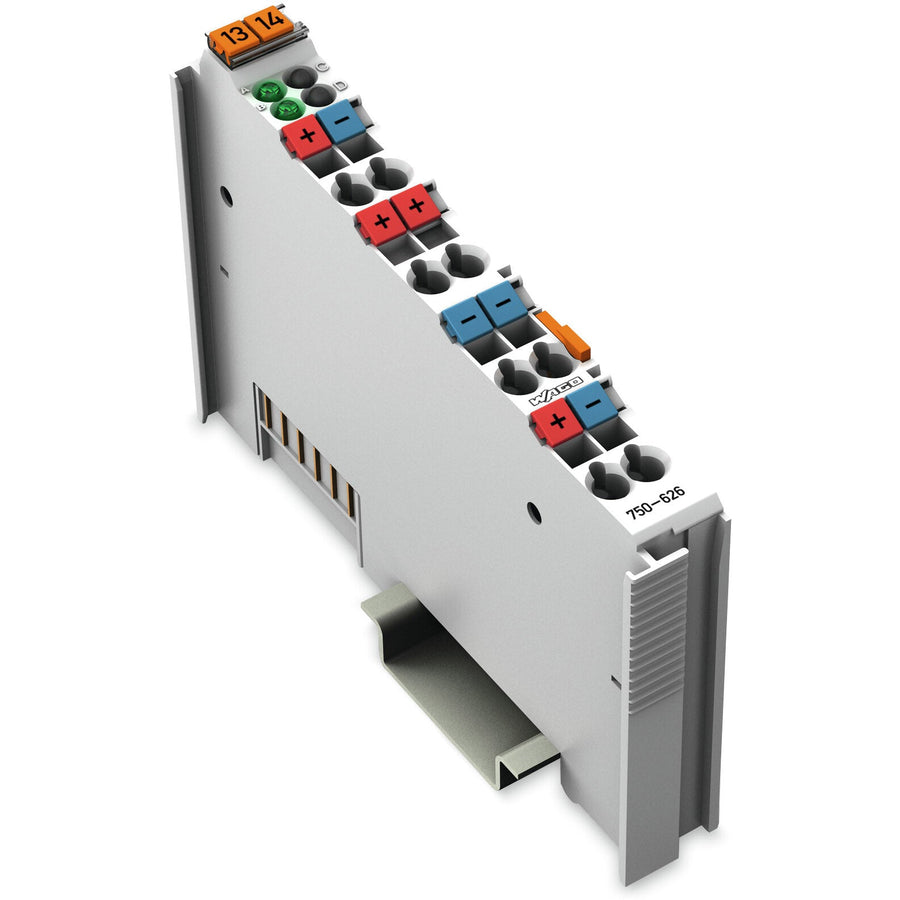

Supply filter - WAGO (750 series) - Supply Filter; 24Vdc - supply voltage 24Vdc - Rated current 10A - with Push-in spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - equivalent to 750626

Specifications

• Primary brand: WAGO
• Functions: Supply filter
• Supply voltage (DC): 24Vdc
• Display: LED (A/B) green -- operating voltage status -- system / power jumper contacts
• Rated current: 10A
• Connection type: Push-in spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Customs Tariff Number: 85389091890
• GTIN code: 4045454393977
• eClass code: 27-24-26-10
• ETIM code: EC001600
• Order code / Manufacturer SKU: 750-626
• Manufacturer product status: Commercialized
• Equivalent to: 750626
• EAN code: 4045454393977
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-IDE750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- KTL - Korea Testing Laboratory - KOSHA Article 34 / IEC60079-0 - certificate 21-KA4BO-0554X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Electrical components
• Level 2 category: Electrical circuits protection
• Level 3 category: Surge Protection Devices (SPD)
• Product title: Supply filter - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389091890
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-10
• eCl@ss 9.0: 27-24-26-10
• ETIM 8.0: EC001600
• ETIM 9.0: EC001600
• GTIN: 4045454393977
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: field supply: 4 x CAGE CLAMP^®
• Connection technology: system supply: 4 x CAGE CLAMP^®
• Connection type 1: System/field supply
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 67c0c0b1-7384-4b47-a2e5-4c27138899d5
• SCIP notification number (Belgium): df0f77b2-d61d-4ad6-a3b3-f7711ef98d42
• SCIP notification number (Bulgaria): 2d06e6ca-d722-4510-b42c-65e6403fa9d5
• SCIP notification number (Czech Republic): a68e4cdd-5f5a-418b-8e5e-e803e77fca65
• SCIP notification number (Denmark): 64efa0c4-e047-4e42-be2c-7ac2c5682a5f
• SCIP notification number (Finland): 1d58eed1-1e70-4a5c-b275-94ef51c4b0e6
• SCIP notification number (France): 4e0a8b03-54ed-4246-ae5c-7b0f6059a324
• SCIP notification number (Germany): 44af5fb9-ca85-4975-b391-63f66ebec7da
• SCIP notification number (Hungary): 96033c53-5b69-4a96-822d-d0cd90af0ac2
• SCIP notification number (Italy): cf47825e-5dc0-4974-bde0-53ea3b2effe4
• SCIP notification number (Netherlands): aae1ec69-6acb-4163-9a02-4744f8d8f656
• SCIP notification number (Poland): 2e19eca4-0e0c-4291-a245-0b850a9e3ac2
• SCIP notification number (Romania): 4edd15ad-8a94-49aa-bbc0-cf5351cee8b9
• SCIP notification number (Sweden): caf61d73-0270-4183-8472-a7cf01e7c216

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.368MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 49.6g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current carrying capacity (power jumper contacts): 10A
• Current via system voltage (max.): 1.5 A (1 A up to hardware version 04)
• Indicators: LED (A, B) green: operating voltage status: system, power jumper contacts
• Number of outgoing power jumper contacts: 2
• Signal type: Voltage
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP^® connection; transmission via spring contact); External fusing required: 10 A slow
• Supply voltage (system): 24 VDC (-25 … +30 %); Via pluggable connector (CAGE CLAMP^® connection); External backup fuse required: 2 A (time delay)
