Part number: 750-658

$686.00

Ships in manufacturer lead time. Contact us for an ETA.

750-658

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

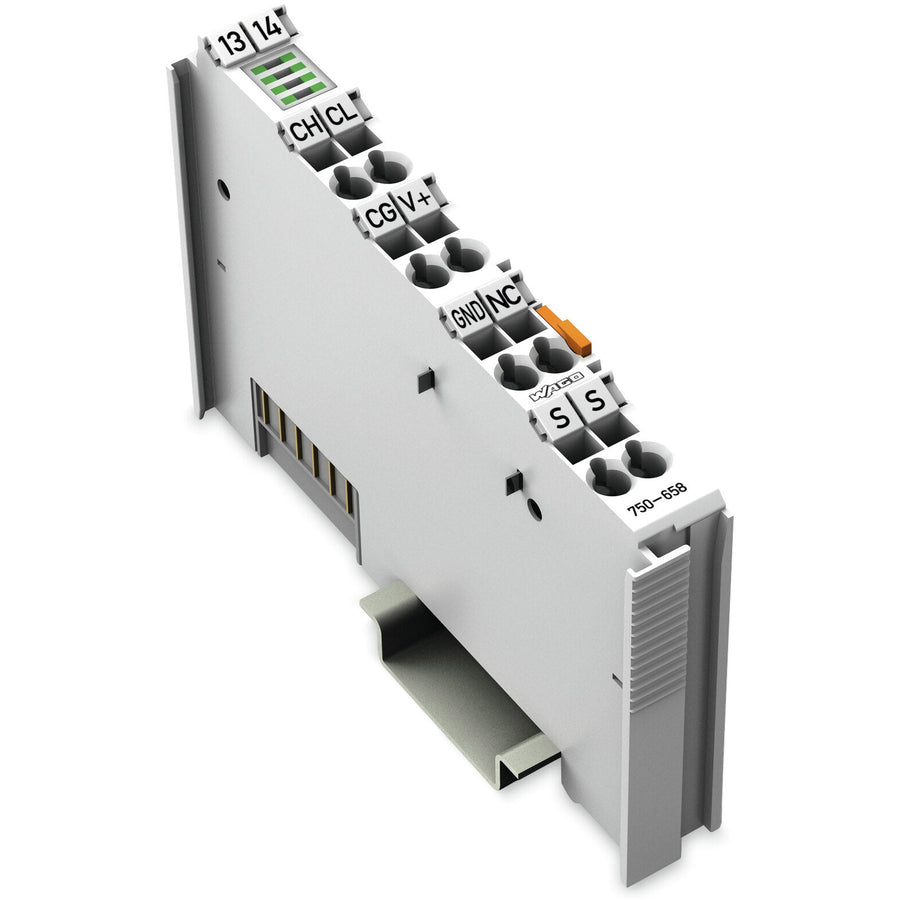

Communications slice module - WAGO (750 series) - CAN Gateway - 10kbit/s-800kbit/s - with CANopen communication capability - supply voltage 5Vdc (supplied by system) - with 7 x CAGE CLAMP spring connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750658

Specifications

  • Primary brand: WAGO
  • Functions: Communications slice module
  • Supply voltage (DC): 5Vdc (supplied by system)
  • Display: LED (A/B/F) red/green -- CAN status / CAN-Rx / CAN-Tx|LED (E) green -- local data bus RUN|LED (H) red -- Int. Error
  • Connection type: 7 x CAGE CLAMP spring connections
  • Mounting mode: DIN-35 rail
  • Speed: 10kbit/s-800kbit/s
  • Dimensions: H100mm x W12mm x D67.8mm
  • Net Width (mm): 12mm
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
  • Current consumption: 50mA (5Vdc; system supply)|12mA (field supply; no external load)
  • eClass code: 27-24-26-05
  • GTIN code: 4050821642084
  • ETIM code: EC001601
  • Customs Tariff Number: 85389099990
  • Order code / Manufacturer SKU: 750-658
  • Manufacturer product status: Commercialized
  • Equivalent to: 750658
  • EAN code: 4050821642084
  • Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- EN 61131-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- EN 61131-2|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-MSM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Automation components
  • Level 2 category: Programmable Logic Controllers & components
  • Level 3 category: Communication units
  • Product title: Communications slice module - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85389099990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-24-26-05
  • eCl@ss 9.0: 27-24-26-05
  • ETIM 8.0: EC001601
  • ETIM 9.0: EC001601
  • GTIN: 4050821642084
  • Packaging type: box
  • Product Group: 15 (I/O System)
  • PU (SPU): 1 pcs

Connection data

  • Connectable conductor materials: Copper
  • Connection technology: inputs/outputs: 7 x CAGE CLAMP®
  • Connection type 1: Inputs/Outputs
  • Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
  • Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

  • CAS-No.: 11120-22-2|1303-86-2|1317-36-8|7439-92-1
  • REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Lead silicate
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
  • SCIP notification number (Austria): 9ac097f3-f099-4554-ae6b-f0409701ad66
  • SCIP notification number (Belgium): 9f465926-b375-4b27-ba5c-3f40258d0c0c
  • SCIP notification number (Bulgaria): fbe39b20-7ad4-446a-875e-026b4d9fe1a1
  • SCIP notification number (Czech Republic): 13b122e5-8101-41c4-9227-68540c9d8771
  • SCIP notification number (Denmark): 37e5b7df-bb0b-4f5f-bf59-4b84b1a10249
  • SCIP notification number (Finland): c59e0042-1a9e-440b-ba5a-05abc5bf8a48
  • SCIP notification number (France): a005d60a-17b2-43e6-a574-2e3a234979a9
  • SCIP notification number (Germany): 68a55f95-447c-4086-b607-fe8d0b8fd018
  • SCIP notification number (Hungary): 587e7d7c-33c9-45a9-8156-469d3e3bc98d
  • SCIP notification number (Italy): 7d603274-d8f3-4d90-9bf3-6571dc568af1
  • SCIP notification number (Netherlands): 7c093ea1-3a99-44fb-b8be-63b96b1b832e
  • SCIP notification number (Poland): bf6b3a80-908d-431e-9845-02dc1cbce2a7
  • SCIP notification number (Romania): 5a86cf21-363e-42de-a5b4-bafffc6228b5
  • SCIP notification number (Sweden): 80ac087c-c12b-4875-b4d5-90fbca43cb61

Environmental requirements

  • Ambient temperature (operation): 0 … +55 °C
  • Ambient temperature (storage): -40 … +85 °C
  • EMC emission of interference: per EN 61000-6-3, EN 61131-2, marine applications
  • EMC immunity to interference: per EN 61000-6-2, EN 61131-2, marine applications
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
  • Operating altitude: 0 … 2000 m / 0 … 6562 ft
  • Permissible H2S contaminant concentration at a relative humidity 75 %: 10ppm
  • Permissible SO2 contaminant concentration at a relative humidity 75 %: 25ppm
  • Pollution degree: 2 per IEC 61131-2
  • Protection type: IP20
  • Relative humidity (without condensation): 95%
  • Shock resistance: 15g per IEC 60068-2-27
  • Vibration resistance: 4g per IEC 60068-2-6

Material data

  • Color: light gray
  • Conformity marking: CE
  • Fire load: 0.967MJ
  • Housing material: Polycarbonate; polyamide 6.6
  • Weight: 51g

Mechanical data

  • Mounting type: DIN-35 rail

Physical data

  • Depth: 67.8 mm / 2.669 inches
  • Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
  • Height: 100 mm / 3.937 inches
  • Width: 12 mm / 0.472 inches

Technical data

  • Current carrying capacity (power jumper contacts): 10A
  • Current consumption (5 V system supply): 50mA
  • Current consumption, field supply (module with no external load): 12mA
  • Data width: Configurable to 8, 12, 16, 20, 24, 32, 40, 48 bytes; incl. control/status byte
  • Device-specific: Operating modes: Sniffer mode, transparent mode, mapped mode
  • Indicators: LED (A, B, F) red/green: CAN status, CAN-Rx, CAN-Tx; LED (E) green: local data bus RUN; LED (H) red: Int. Error
  • Isolation: 500 V system/supply
  • Number of incoming power jumper contacts: 2
  • Number of inputs: 1 (CAN interface)
  • Number of outgoing power jumper contacts: 2
  • Supply voltage (field): 24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
  • Supply voltage (system): 5 VDC; via data contacts
  • Transmission modes: 10 kbit/s; 20 kbit/s; 50 kbit/s; 125 kbit/s; 250 kbit/s; 500 kbit/s; 800 kbit/s (auto-baudrate); Data formats: per 2.0 A standard (11-bit ID); per 2.0 B extended (29-bit ID)
