WAGO - 750-8212

Programmable Logic Controller (PLC) CPU unit - WAGO (PFC200 series) - PFC200; G2; 2ETH RS - ARM Cortex-A8 1GHz - with 512MB memory (RAM) + 4GB internal memory (flash) - 250 x connections per node + 64 x field devices connection capability - with Modbus RTU + Modbus TCP + Ethernet/IP + EtherCAT + RS-232 + RS-485 communication capability - supply voltage 18-31.2Vdc via wiring (24Vdc nom.) - with 2 x RJ45 connectors (fieldbus) + 9-pin D-sub connector (serial port) - DIN-35 rail mounting (78.6mm width) - with SD and SDHC card slot (up to 32GB) - IP20 - rated for 0°C...+55°C ambient - replaces obsolete component(s) 750-8101/000-010 / 750-8202 / 750-8202/000-011 / 750-8202/000-012 / 750-8202/000-022 / 750-882 / 750-884 / 750-884/000-008 - equivalent to 7508212

Specifications

• Primary brand: WAGO
• Functions: Programmable Logic Controller (PLC) CPU unit|MQTT|DHCP|DNS|NTP|FTP|FTPS|SNMP|HTTP|HTTPS|SSH|Configuration options|- CODESYS V3|- CODESYS Library|- e!COCKPIT|- e!RUNTIME library|- WAGO-I/O-CHECK|- Web-Based Management
• Supply voltage (DC): 18-31.2Vdc via wiring (24Vdc nom.)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (SYS; RUN; I/O; U1...U7) red/green/orange -- Status of system / program / local data bus / status programmable by user (can be used via CODESYS library)|LED (A; B) green -- Status of system power supply / field supply
• Processor type: ARM Cortex-A8 1GHz
• Programming languages: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)|Programming environment|- CODESYS V3.5 Firmware Release 23 or higher|- e!COCKPIT (based on CODESYS V3) up to Firmware Release 22|- WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) up to Firmware Release 22
• Memory capacity: 512MB memory (RAM)|4GB internal memory (flash)|128kB non-volatile memory (hardware)|128kB non-volatile memory (software)|16MB (program memory; CODESYS V2)|32MB (program memory; CODESYS V3)|64MB (data memory; CODESYS V2)|128MB (data memory; CODESYS V3)
• Connection capacity: 250 x connections per node|64 x field devices

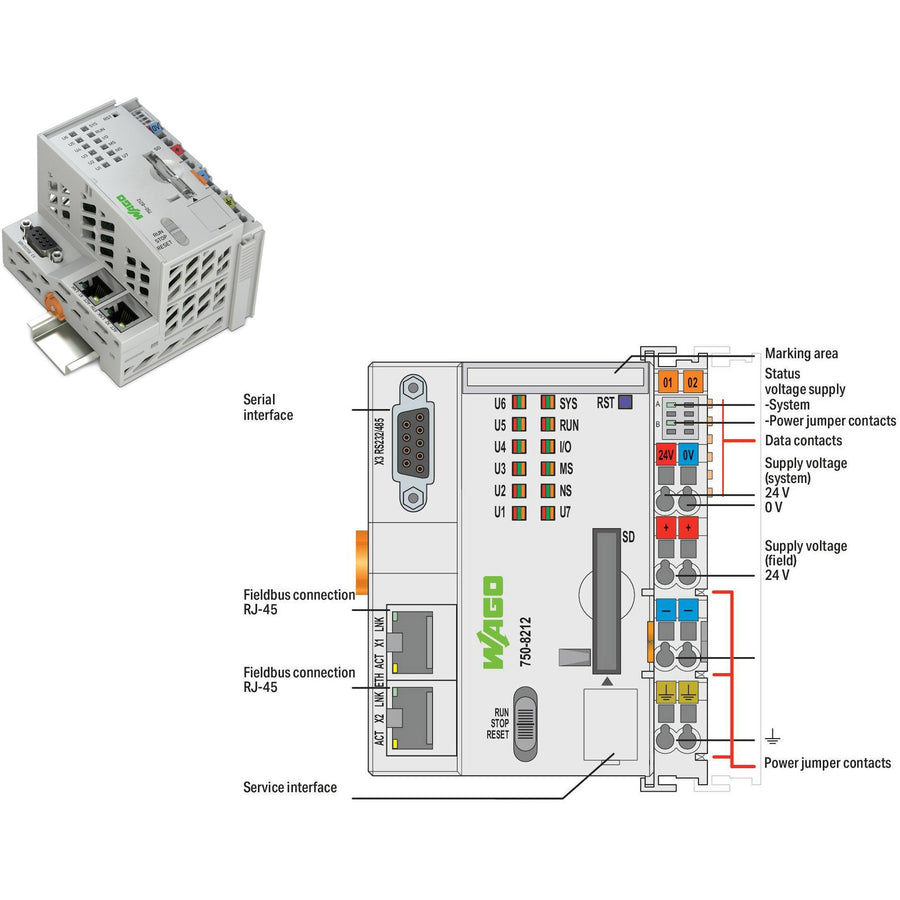

• Connection type: 2 x RJ45 connectors (fieldbus)|9-pin D-sub connector (serial port)|CAGE CLAMP 2-pin (system supply)|CAGE CLAMP 6-pin (field supply)
• Mounting mode: DIN-35 rail
• Speed: 10Mbit/s|100Mbit/s
• Dimensions: H100mm x W78.6mm x D71.9mm
• Net Width (mm): 78.6mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 550mA (24Vdc; at nominal load)|1700mA (system supply)
• GTIN code: 4055143758789
• ETIM code: EC000236
• Customs Tariff Number: 85371091990
• eClass code: 27-24-26-07
• Order code / Manufacturer SKU: 750-8212
• Manufacturer product status: Commercialized
• Equivalent to: 7508212
• Replaces: 750-8101/000-010|750-8202|750-8202/000-011|750-8202/000-012|750-8202/000-022|750-882|750-884|750-884/000-008
• EAN code: 4055143758789
• Compliant with standard(s): Telecontrol protocols|- IEC 60870 (additional license)|- IEC 61850 (additional license as Client or Server)|- DNP3 (additional license)|CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-PFC750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 66711/A0|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- KTL - Korea Testing Laboratory - KOSHA Article 34 / IEC60079-0 - certificate 21-KA4BO-0557X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Storage type: SD and SDHC card slot (up to 32GB)
• Operating System (OS): Real-time Linux (with PREEMPT_RT patch)
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: CPU Units
• Product title: Programmable Logic Controller (PLC) CPU unit - WAGO (PFC200 series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85371091990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-07
• eCl@ss 9.0: 27-24-26-07
• ETIM 8.0: EC000236
• ETIM 9.0: EC000236
• GTIN: 4055143758789
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: communication/fieldbus: Modbus (TCP, UDP): 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 interface: 1 x D-sub 9 socket
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection technology: field supply: 6 x CAGE CLAMP^®
• Connection technology: system supply: 2 x CAGE CLAMP^®
• Connection type 1: System/field supply
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|693-98-1|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|2-methylimidazole|Diboron trioxide|Lead|Lead monoxide|Perfluorobutane sulfonic acid (PFBS) and its salts
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): cdb3fb17-40de-4401-b69f-a4eba7617a35
• SCIP notification number (Belgium): 9df949dc-8215-49fb-bc3d-b8138adf3d54
• SCIP notification number (Bulgaria): 5e2cc238-0b57-44f5-841a-914b9a9106db
• SCIP notification number (Czech Republic): 6f2ec62b-b1d7-41fd-bd08-53f1f066579b
• SCIP notification number (Denmark): dda30b2f-13b4-4ba2-8217-5f0911ac8064
• SCIP notification number (Finland): bfb94d6c-4452-4dc4-98bf-4cf30aeedaf9
• SCIP notification number (France): db8dc1da-3777-4580-86fe-b255678ad3e9
• SCIP notification number (Germany): cdb9d8e9-1c7c-4cb5-82a9-d1a354436f8c
• SCIP notification number (Hungary): f8f5a668-40a0-464c-b631-0b54aaa609d9
• SCIP notification number (Italy): 3e3ff0a4-e76c-467a-a261-16166081f0f4
• SCIP notification number (Netherlands): 610f023d-547b-4525-a177-7f59d1b13f66
• SCIP notification number (Poland): 03c368e7-1dea-4f72-9fd1-9476580f0177
• SCIP notification number (Romania): 37a892a9-87c6-421a-9519-f669f4cd6102
• SCIP notification number (Sweden): 88ce2c4e-8c0c-411c-a562-f03f7e9471cd

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 2.523MJ
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Mounting type: DIN-35 rail
• Operating altitude: without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Mechanical data

• Color: light gray
• Conformity marking: CE
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 214.8g

Physical data

• Depth: 71.9 mm / 2.831 inches
• Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
• Height: 100 mm / 3.937 inches
• Width: 78.6 mm / 3.094 inches

Technical data

• Communications: Modbus TCP master/slave|Modbus (UDP), WagoAppPlcModbus Library|Modbus (RTU), WagoAppPlcModbus Library|ETHERNET|EtherNet/IP^TM Adapter (slave)|EtherNet/IP^TM Scanner|EtherCAT® Master|OPC UA Server/Client|OPC UA Pub/Sub (can be installed later)|MQTT|RS-232 serial interface|RS-485 interface|BACnet/IP, requires an additional license|Telecontrol protocols, requires an additional license
• Configuration options: CODESYS V3|e!COCKPIT|WAGO-I/O-CHECK|Web-Based Management|e!RUNTIME library|CODESYS Library
• CPU: Cortex A8; 1 GHz
• Current carrying capacity (power jumper contacts): 10A
• Data memory: CODESYS V2: 64 MB; CODESYS V3: 128 MB
• ETHERNET protocols: DHCP|DNS|NTP|FTP|FTPS|SNMP|HTTP|HTTPS|SSH
• Indicators: LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply
• Input and output process image (internal) max.: 1000 words/1000 words
• Input and output process image (Modbus®) max.: CODESYS V2: 1000 words/1000 words; CODESYS V3: 32000 words/32000 words
• Input current (typ.) at nominal load (24 V): 550mA
• Internal memory (flash): 4096MB
• Isolation: 500 V system/field
• Main memory (RAM): 512MB
• Memory card slot: Push-push mechanism; Cover lid (sealable)
• Non-volatile hardware memory: 128Kbytes
• Non-volatile software memory: 128Kbytes|128.Kbytes
• Number of modules per node (max.): 250
• Number of modules without a bus extension (max.): 64
• Number of outgoing power jumper contacts: 3
• Operating system: Real-time Linux (with PREEMPT_RT patch)
• Program memory: CODESYS V2: 16 MB; CODESYS V3: 32 MB
• Programming environment: CODESYS V3.5, Firmware Release 23 or higher|e!COCKPIT (based on CODESYS V3) up to Firmware Release 22|WAGO-I/O-PRO V2.3 (based on CODESYS V2.3), up to Firmware Release 22
• Programming languages per IEC 61131-3: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP^® connection)
• Telecontrol protocols: IEC 60870 (additional license as slave or master)|IEC 61850 (additional license as Client or Server)|DNP3 (additional license as Slave or Master)
• Total current (system supply): 1,700mA
• Transmission medium (communication/fieldbus): ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Transmission rate: ETHERNET: 10/100 Mbit/s
• Type of memory card: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
• Visualization: Web-Visu
