WAGO - 750-832

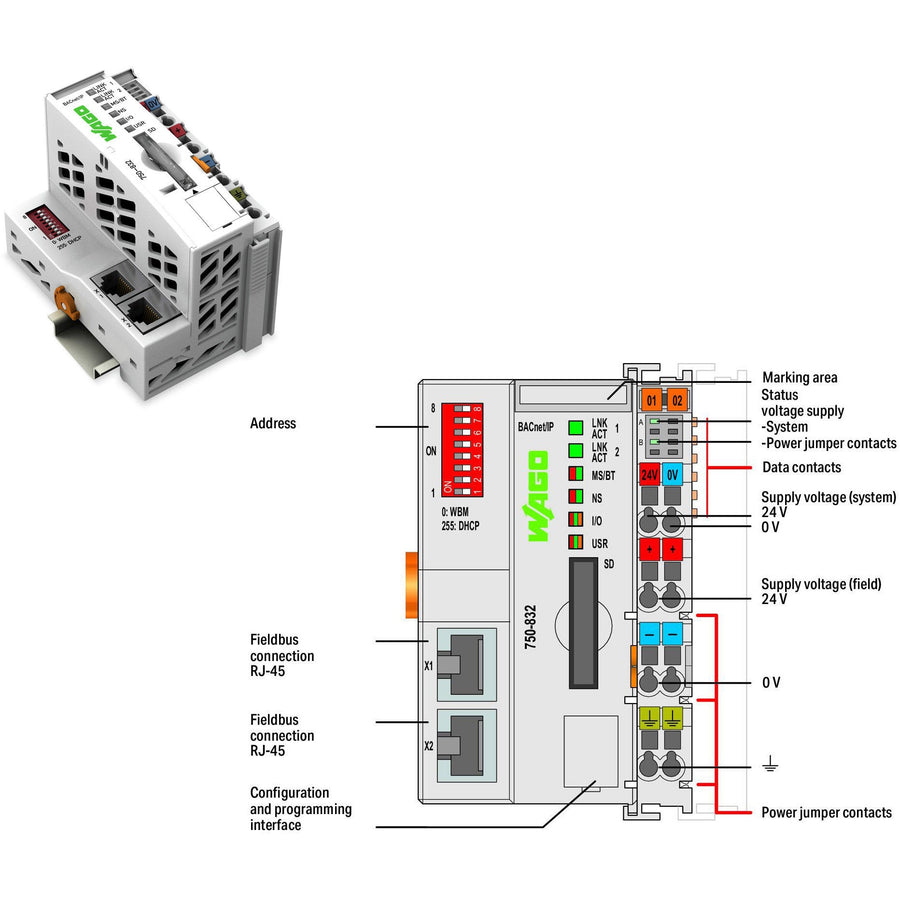

Programmable Logic Controller (PLC) CPU unit - Gen.4 - WAGO (750 series) - Controller BACnet/IP; G4; 2xETH; SD - 32-bit processor - 250 x connections per node + 64 x field devices connection capability - with Modbus TCP + Ethernet + BACnet/IP communication capability - supply voltage 18-31.2Vdc via wiring (24Vdc nom.) - with 2 x RJ45 connectors (fieldbus) - DIN-35 rail mounting (61.5mm width) - with SD and SDHC card slot (up to 32GB) - IP20 - rated for 0°C...+55°C ambient - replaces obsolete component(s) 750-831 - equivalent to 750832

Specifications

• Primary brand: WAGO
• Functions: Programmable Logic Controller (PLC) CPU unit|HTTP|BootP|DHCP|DNS|SNTP|FTP|SNMP|Configuration options|- WAGO-I/O-CHECK|- BACnet Configurator|- Web-Based Management
• Design: Gen.4
• Supply voltage (DC): 18-31.2Vdc via wiring (24Vdc nom.)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (LINK/ACT) green -- Network connection via ports 1...2|LED (MS/BT; NS) red/green -- Status of node/BACnet / network|LED (I/O; USR) red/green/orange -- Local data bus status / status programmable by user|LED (A; B) green -- Status of system power supply / field supply
• Processor type: 32-bit processor
• Programming languages: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)|Programming environment|- WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Memory capacity: 32kB non-volatile memory (software)|8MB (program memory)|8MB (data memory)
• Connection capacity: 250 x connections per node|64 x field devices
• Connection type: 2 x RJ45 connectors (fieldbus)|CAGE CLAMP 2-pin (system supply)|CAGE CLAMP 6-pin (field supply)
• Mounting mode: DIN-35 rail
• Speed: 10Mbit/s|100Mbit/s
• Dimensions: H100mm x W61.5mm x D71.9mm
• Net Width (mm): 61.5mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 500mA (24Vdc; at nominal load)|440mA (5Vdc; system supply)|1700mA (system supply)
• ETIM code: EC000236
• GTIN code: 4055143888561
• Customs Tariff Number: 85371091990
• Order code / Manufacturer SKU: 750-832
• Manufacturer product status: Commercialized
• Replaces: 750-831
• Equivalent to: 750832
• EAN code: 4055143888561
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-3|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-PFC750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Approvals for marine applications|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|Protocol and fieldbus specific certificates|- BACnet - WSP Cert - certificate Listing information BTL-30464|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Storage type: SD and SDHC card slot (up to 32GB)
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: CPU Units
• Product title: Programmable Logic Controller (PLC) CPU unit - WAGO (750 series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85371091990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000236
• ETIM 9.0: EC000236
• GTIN: 4055143888561
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: communication/fieldbus: BACnet/IP: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection technology: field supply: 6 x CAGE CLAMP^®
• Connection technology: system supply: 2 x CAGE CLAMP^®
• Connection type 1: System/field supply
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): ec5f0e96-7501-4211-be8a-192fa75d829c
• SCIP notification number (Belgium): d48fb674-ecab-4a17-9416-d40af95661e5
• SCIP notification number (Bulgaria): 481b6b3e-6d69-43e5-bf26-7f94f1aedec9
• SCIP notification number (Czech Republic): 5778effb-5e7a-4998-acde-062cb1e7e4b7
• SCIP notification number (Denmark): 28f67fe3-001e-4741-8b5d-bed2ab8f3a2b
• SCIP notification number (Finland): 1803eeb4-49e8-4300-bde9-f2ec52863363
• SCIP notification number (France): 5b0a7fcb-9a93-48fa-9db9-b04d0df35e87
• SCIP notification number (Germany): e96108de-fdcf-42cf-ae3c-b027d1f6505c
• SCIP notification number (Hungary): 02788357-ba60-4349-8a43-639be6ae1149
• SCIP notification number (Italy): c9012bd0-07f3-444e-b984-e508a0139eef
• SCIP notification number (Netherlands): 0e0f2b7e-0b00-401d-b3a4-d6c4ef3078b7
• SCIP notification number (Poland): bd0347d6-221d-47ee-bd2f-f41b1d525deb
• SCIP notification number (Romania): ae6710d5-1bde-4ba6-98a8-d0b6d0cbcd98
• SCIP notification number (Sweden): cf148ad1-16ba-4fa0-b5d5-97968bfa247b

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-3
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 2.47MJ
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Mounting type: DIN-35 rail
• Operating altitude: without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Mechanical data

• Conformity marking: CE
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 151.8g

Notes

• Note:

  The WAGO BACnet Configurator can be downloaded for free at www.wago.com.

Physical data

• Depth: 71.9 mm / 2.831 inches
• Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
• Height: 100 mm / 3.937 inches
• Width: 61.5 mm / 2.421 inches

Technical data

• Communications: BACnet/IP|Modbus (TCP, UDP)
• Configuration options: WAGO-I/O-CHECK|BACnet Configurator|Web-Based Management
• CPU: 32 bits
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 440mA
• Data memory: 8 MB
• Device-specific: BACnet device profile: B-BC (BACnet building controller); BACnet revision: 12
• ETHERNET protocols: HTTP(S)|BootP|DHCP|DNS|SNTP|FTP(S)|SNMP
• Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS/BT, NS) red/green: Status of node/BACnet, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: Status of system power supply, field supply
• Input and output process image (fieldbus) max.: 1020 words/1020 words
• Input current (typ.) at nominal load (24 V): 500mA
• Isolation: 500 V system/field
• Memory card slot: Push-push mechanism; Cover lid (sealable)
• Non-volatile software memory: 32Kbytes
• Number of modules per node (max.): 250
• Number of modules without a bus extension (max.): 64
• Number of outgoing power jumper contacts: 3
• Power supply efficiency (typ.) at nominal load (24 V): 90%
• Program memory: 8 MB
• Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Programming languages per IEC 61131-3: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP^® connection)
• Total current (system supply): 1,700mA
• Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Transmission performance: Class D per EN 50173
• Transmission rate: 10/100 Mbit/s
• Type of memory card: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
• Visualization: Web-Visu
