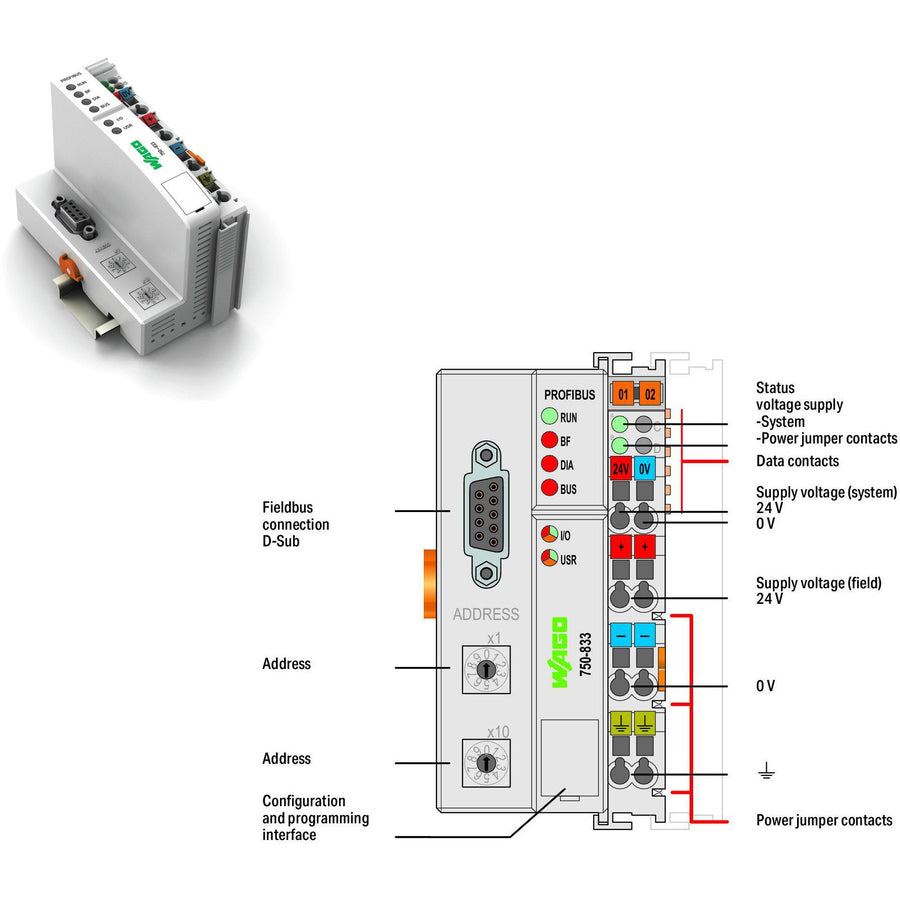

WAGO - 750-833

Programmable Logic Controller (PLC) CPU unit - WAGO (750 series) - 16-bit processor - 63 x connections per node + 96 x fieldbus mode on the controller (master) connection capability - with PROFIBUS communication capability - supply voltage 18-31.2Vdc via wiring (24Vdc nom.) - with 9-pin D-sub connector (fieldbus) - DIN-35 rail mounting (71.1mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750833

Specifications

• Primary brand: WAGO
• Functions: Programmable Logic Controller (PLC) CPU unit|Configuration options|- GSD device description file|- WAGO-I/O-CHECK
• Supply voltage (DC): 18-31.2Vdc via wiring (24Vdc nom.)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (RUN) green -- Fieldbus initialization|LED (BF; DIA; BUS) red -- communication error / external diagnostics / configuration|LED (I/O; USR) red/green/orange -- Local data bus status / status programmable by user|LED (A; B) green -- Status of system power supply / field supply
• Processor type: 16-bit processor
• Programming languages: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)|Programming environment|- WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Memory capacity: 8kB non-volatile memory (software)|128kB (program memory)|64kB (data memory)|244bytes (fieldbus input and output memory)
• Connection capacity: 63 x connections per node|96 x fieldbus mode on the controller (master)
• Connection type: 9-pin D-sub connector (fieldbus)|CAGE CLAMP 2-pin (system supply)|CAGE CLAMP 6-pin (field supply)
• Mounting mode: DIN-35 rail
• Speed: 9.6kbit/s-12Mbit/s
• Dimensions: H100mm x W50.5mm x D71.1mm
• Net Width (mm): 71.1mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 500mA (24Vdc; at nominal load)|200mA (5Vdc; system supply)|1800mA (system supply)
• eClass code: 27-24-26-07
• Customs Tariff Number: 85371091990
• GTIN code: 4045454527075
• ETIM code: EC000236
• Order code / Manufacturer SKU: 750-833
• Manufacturer product status: Commercialized
• Equivalent to: 750833
• EAN code: 4045454527075
• Compliant with standard(s): CE|EN 50170|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-PFC750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: CPU Units
• Product title: Programmable Logic Controller (PLC) CPU unit - WAGO (750 series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85371091990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-07
• eCl@ss 9.0: 27-24-26-07
• ETIM 8.0: EC000236
• ETIM 9.0: EC000236
• GTIN: 4045454527075
• Packaging type: box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: communication/fieldbus: PROFIBUS: 1 x D-Sub 9 socket
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection technology: field supply: 6 x CAGE CLAMP^®
• Connection technology: system supply: 2 x CAGE CLAMP^®
• Connection type 1: System/field supply
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 12060-00-3|1303-86-2|1317-36-8|25550-51-0|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Diboron trioxide|Lead|Lead monoxide|Lead titanium oxide (PbTiO3)
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Bulgaria): 9a69ea66-5706-4a91-a6f4-1740c22f2b9c
• SCIP notification number (Czech Republic): 402117a9-b5d3-43c8-80e1-893dad99944a

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 3.036MJ
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Mounting type: DIN-35 rail
• Operating altitude: without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Mechanical data

• Color: light gray
• Conformity marking: CE
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 186.9g

Notes

• Note:

  Note: Configuration files required (GSD)!

  The GSD files can be downloaded for free at www.wago.com.

Physical data

• Depth: 71.1 mm / 2.799 inches
• Depth from upper-edge of DIN-rail: 63.9 mm / 2.516 inches
• Height: 100 mm / 3.937 inches
• Width: 50.5 mm / 1.988 inches

Technical data

• Bus segment length (max.): 1200 m
• Communications: PROFIBUS
• Configuration options: GSD device description file|WAGO-I/O-CHECK
• CPU: 16 bits
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 200mA
• Cycle time: < 3 ms for 1000 bit instructions/ 256 digital I/O
• Data memory: 64 KB
• Indicators: LED (RUN) green: Fieldbus initialization, LED (BF, DIA, BUS) red: communication error, external diagnostics, configuration; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
• Input and output process image (fieldbus) max.: 244 bytes/244 bytes
• Input current (typ.) at nominal load (24 V): 500mA
• Isolation: 500 V system/field
• Memory for fieldbus input variables (max.): 244Byte
• Memory for fieldbus output variables (max.): 244Byte
• Non-volatile software memory: 8Kbytes
• Number of fieldbus nodes on master (max.): 96
• Number of I/O points: 6,000
• Number of modules per node (max.): 63
• Number of modules without a bus extension (max.): 63
• Number of outgoing power jumper contacts: 3
• Power supply efficiency (typ.) at nominal load (24 V): 87%
• Program memory: 128 KB
• Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Programming languages per IEC 61131-3: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)
• Standard: EN 50170
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP^® connection)
• Total current (system supply): 1,800mA
• Transmission medium (communication/fieldbus): Cu cable per EN 50170
• Transmission rate: 9.6 kBd … 12 MBd
• Transmission time: typ. 1 ms (10 controllers; each 32 digital I/O and 12 Mbaud) max. 3.3 ms
• Visualization: none
