WAGO - 750-890

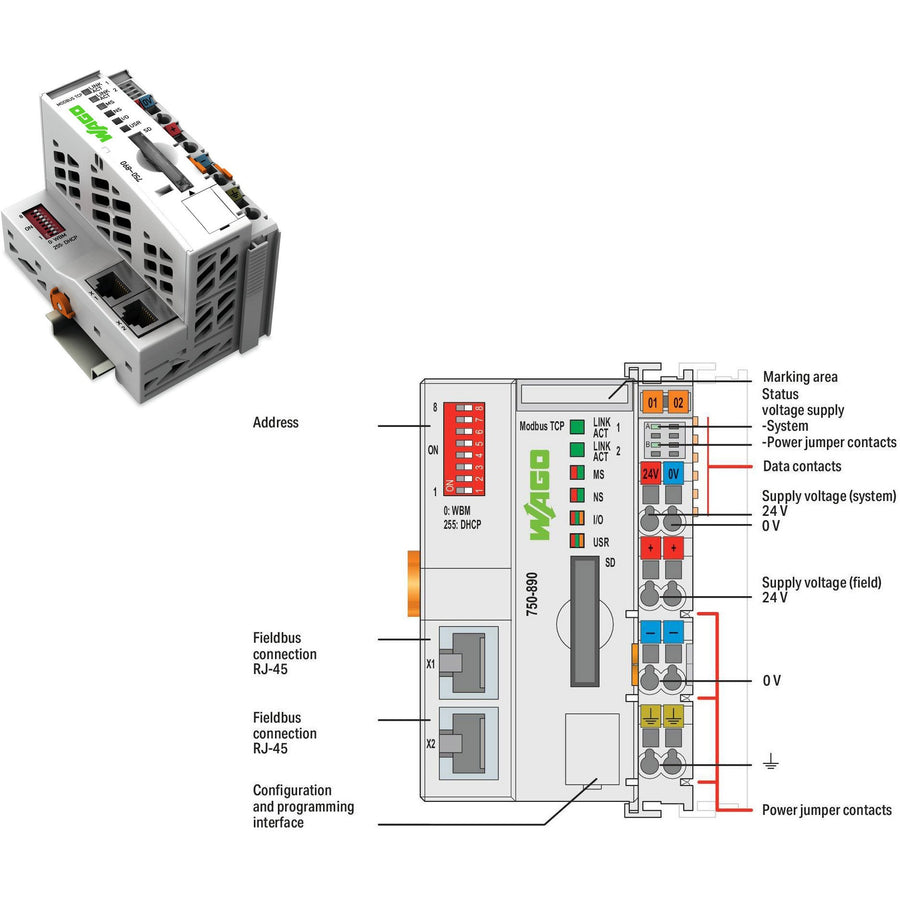

Programmable Logic Controller (PLC) CPU unit - Gen.4 - WAGO (750 series) - Controller Modbus TCP; G4; 2ETH SD - 32-bit processor - 250 x connections per node + 64 x field devices connection capability - with Modbus TCP + Ethernet communication capability - supply voltage 18-31.2Vdc via wiring (24Vdc nom.) - with 2 x RJ45 connectors (fieldbus) - DIN-35 rail mounting (61.5mm width) - with SD and SDHC card slot (up to 32GB) - IP20 - rated for 0°C...+55°C ambient - replaces obsolete component(s) 750-880 - equivalent to 750890

Specifications

• Primary brand: WAGO
• Functions: Programmable Logic Controller (PLC) CPU unit|HTTP|BootP|DHCP|DNS|SNTP|FTP|SNMP|Configuration options|- WAGO-I/O-CHECK|- Web-Based Management|- CODESYS Library
• Design: Gen.4
• Supply voltage (DC): 18-31.2Vdc via wiring (24Vdc nom.)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (LINK/ACT) green -- Network connection via ports 1...2|LED (MS; NS) red/green -- Status of node / network|LED (I/O; USR) red/green/orange -- Local data bus status / status programmable by user|LED (A; B) green -- Status of system power supply / field supply
• Processor type: 32-bit processor
• Programming languages: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)|Programming environment|- WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Memory capacity: 32kB non-volatile memory (software)|8MB (program memory)|8MB (data memory)
• Connection capacity: 250 x connections per node|64 x field devices
• Connection type: 2 x RJ45 connectors (fieldbus)|CAGE CLAMP 2-pin (system supply)|CAGE CLAMP 6-pin (field supply)
• Mounting mode: DIN-35 rail
• Speed: 10Mbit/s|100Mbit/s
• Dimensions: H100mm x W61.5mm x D71.9mm
• Net Width (mm): 61.5mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 500mA (24Vdc; at nominal load)|440mA (5Vdc; system supply)|1700mA (system supply)
• ETIM code: EC000236
• GTIN code: 4055143821407
• eClass code: 27-24-26-07
• Customs Tariff Number: 85371091990
• Order code / Manufacturer SKU: 750-890
• Manufacturer product status: Commercialized
• Replaces: 750-880
• Equivalent to: 750890
• EAN code: 4055143821407
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-PFC750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 66711/A0|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Storage type: SD and SDHC card slot (up to 32GB)
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: CPU Units
• Product title: Programmable Logic Controller (PLC) CPU unit - WAGO (750 series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85371091990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-07
• eCl@ss 9.0: 27-24-26-07
• ETIM 8.0: EC000236
• ETIM 9.0: EC000236
• GTIN: 4055143821407
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: communication/fieldbus: Modbus (TCP, UDP): 2 x RJ-45
• Connection technology: device configuration: 1 x Male connector; 4-pole
• Connection technology: field supply: 6 x CAGE CLAMP^®
• Connection technology: system supply: 2 x CAGE CLAMP^®
• Connection type 1: System/field supply
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): a178a5e7-7aff-4ef8-abf5-f8d37107fe10
• SCIP notification number (Belgium): d9ecd297-2f9a-4d3e-9968-c066008f9a1b
• SCIP notification number (Bulgaria): 931be9f0-8b76-4c63-9255-96fc8ab3940a
• SCIP notification number (Czech Republic): d54b0132-d8dc-4522-a9ea-6037babd5cf8
• SCIP notification number (Denmark): 18c3a65f-467a-4c68-90af-a4d79db320c0
• SCIP notification number (Finland): 6add2a83-d722-4a88-9153-284078e24d59
• SCIP notification number (France): 1718cffd-7b94-4ff9-a003-84a3867e7824
• SCIP notification number (Germany): bf462bbd-4a5f-4400-9344-76aabf6a6cb0
• SCIP notification number (Hungary): b1f5ec24-598d-4315-94c3-b90084e3b0eb
• SCIP notification number (Italy): 6eb37179-69b5-4b2d-a8c6-d3427e2fcd1a
• SCIP notification number (Netherlands): 9dd050c8-1497-49f0-8d72-1e37f6972b4a
• SCIP notification number (Poland): 6f5382a3-a622-4087-94cb-2096b6aaf456
• SCIP notification number (Romania): f06ffb8c-98ba-4fbf-becc-ae69d9daa2aa
• SCIP notification number (Sweden): c020dade-472e-4dd5-87ec-4779356cd263

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 2.47MJ
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Mounting type: DIN-35 rail
• Operating altitude: without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Mechanical data

• Conformity marking: CE
• Housing material: Polycarbonate; Polyamide 6.6
• Weight: 151.6g

Physical data

• Depth: 71.9 mm / 2.831 inches
• Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
• Height: 100 mm / 3.937 inches
• Width: 61.5 mm / 2.421 inches

Technical data

• Communications: Modbus (TCP, UDP)
• Configuration options: WAGO-I/O-CHECK|Web-Based Management|CODESYS Library
• CPU: 32 bits
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 440mA
• Data memory: 8 MB
• ETHERNET protocols: HTTP(S)|BootP|DHCP|DNS|SNTP|FTP(S)|SNMP
• Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
• Input and output process image (fieldbus) max.: 1020 words/1020 words
• Input current (typ.) at nominal load (24 V): 500mA
• Isolation: 500 V system/field
• Memory card slot: Push-push mechanism; Cover lid (sealable)
• Non-volatile software memory: 32Kbytes
• Number of modules per node (max.): 250
• Number of modules without a bus extension (max.): 64
• Number of outgoing power jumper contacts: 3
• Power supply efficiency (typ.) at nominal load (24 V): 90%
• Program memory: 8 MB
• Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Programming languages per IEC 61131-3: Instruction List (IL)|Ladder Diagram (LD)|Function Block Diagram (FBD)|Continuous Function Chart (CFC)|Structured Text (ST)|Sequential Function Chart (SFC)
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP^® connection)
• Total current (system supply): 1,700mA
• Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Transmission performance: Class D per EN 50173
• Transmission rate: 10/100 Mbit/s
• Type of memory card: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO's memory card)
• Visualization: Web-Visu
