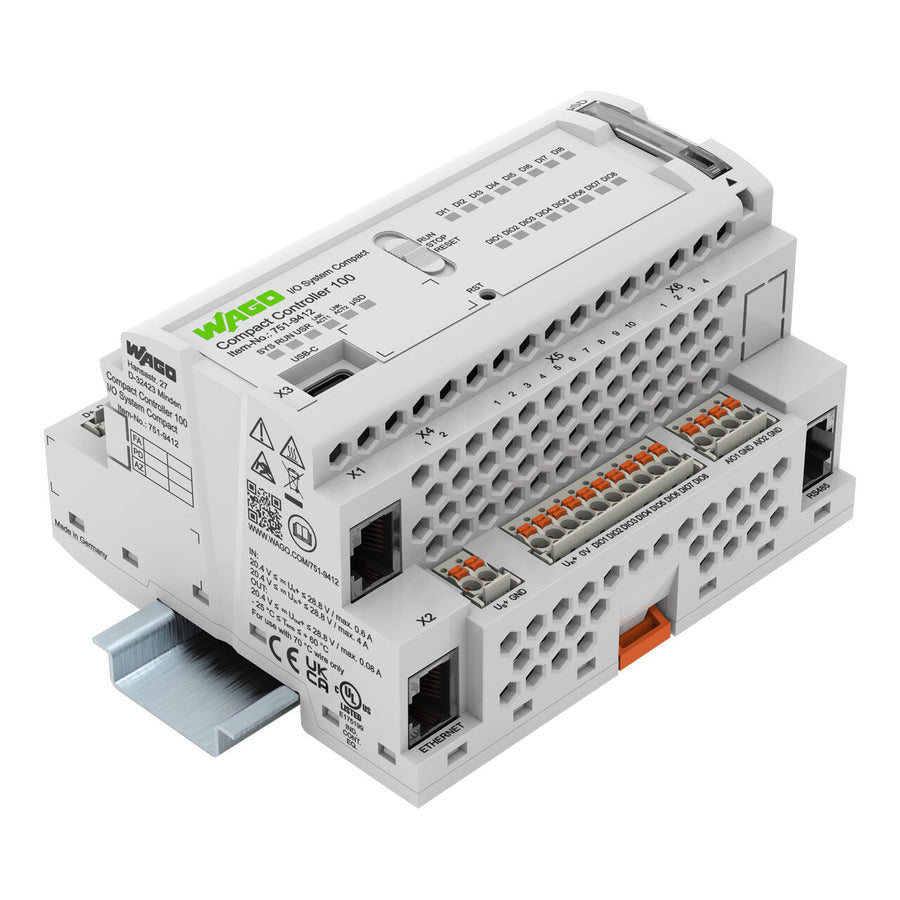

WAGO 751-9412 Compact Controller 100 Secure (Image: WAGO)

WAGO

WAGO 751-9412 Compact Controller 100 Secure

Part number: 751-9412

$1,585.00

Ships in manufacturer lead time. Contact us for an ETA.

751-9412

Request a quote

WAGO datasheet (PDF) View on wago.com PDF is served by WAGO's official datasheet service (wago.priintcloud.com).

Need help selecting this part? Contact an applications specialist →

WAGO Compact Controller 100 Secure (751-9412): a compact DIN-rail PLC with 22 on-board I/O, two ETHERNET ports and two RS-485 interfaces, with firmware developed per IEC 62443-4-2 and CRA ready. Programmed in CODESYS V3.5. Telecontrol protocols are not part of the IEC 62443-4-2 certification and require an additional license.

Specifications

  • Item number: 751-9412
  • Description: Compact Controller 100; 8DI 8DIO 2AI 2AIO 2NI/PT 2RS485; 2 x ETHERNET; SD; Secure
  • Security: Developed per IEC 62443-4-2; CRA ready
  • CPU: 2 x Cortex A7; 650 MHz
  • Operating system: Linux (Yocto distribution) with PREEMPT_RT
  • Main memory (RAM): 512 MB
  • Internal memory (flash): 4096 MB
  • Program / data memory: 32 MB / 128 MB
  • Memory card: microSD up to 32 GB (push-push slot)
  • Digital I/O: 8 digital inputs (Type 3 per EN 61131-2); 8 configurable digital inputs/outputs, 500 mA per output
  • Analog I/O: 2 analog inputs (0-10 V, ±10 V, 0/4-20 mA; 16 bits); 2 configurable analog inputs/outputs (outputs 12 bits)
  • RTD inputs: 2 (Pt100/Pt200/Pt500/Pt1000, Ni100/Ni120/Ni1000, potentiometer)
  • Communications: Modbus TCP, Modbus RTU, OPC UA Server/Client, RS-485, MQTT and SNMP (via IIoT library)
  • ETHERNET protocols: DHCP, DNS, HTTPS, SSH, WDA, OAuth2, LDAP, IPsec
  • Interfaces: 2 x RJ-45 ETHERNET (10/100 Mbit/s); RS-485: 1 x RJ-45 and 1 x 4-pole Push-in CAGE CLAMP connector; 1 x USB Type C (device mode)
  • Programming: CODESYS V3.5; IEC 61131-3 IL, LD, CFC, ST, SFC; included licenses: Control Basic M, Communication S/M 2048 Tags, Visualization S 128 data points, IIoT Libraries
  • Visualization: Web-Visu
  • Supply voltage: 24 VDC (-15 … +20 %), system and field; system current max. 600 mA
  • Isolation: 1250 V DC (1 min) between system and field level (digital outputs)
  • Conductors: 0.2 … 1.5 mm² / 24 … 14 AWG, solid or fine-stranded copper; strip 8-9 mm
  • Dimensions (W x H x D): 108 x 90 x 55 mm (4.252 x 3.543 x 2.165 in)
  • Mounting: DIN-35 rail, any position
  • Ambient temperature: -25 … +60 °C operation; -25 … +80 °C storage
  • Protection / pollution: IP20; pollution degree 2
  • Humidity / altitude: 95 % RH non-condensing; 0 … 2000 m
  • Weight: 205 g
  • Conformity: CE; UKCA
  • GTIN: 4066966806373
  • Country of origin: Germany
  • Customs tariff number: 85371091990
  • ECCN: NO US CLASSIFICATION
