WAGO - 753-400

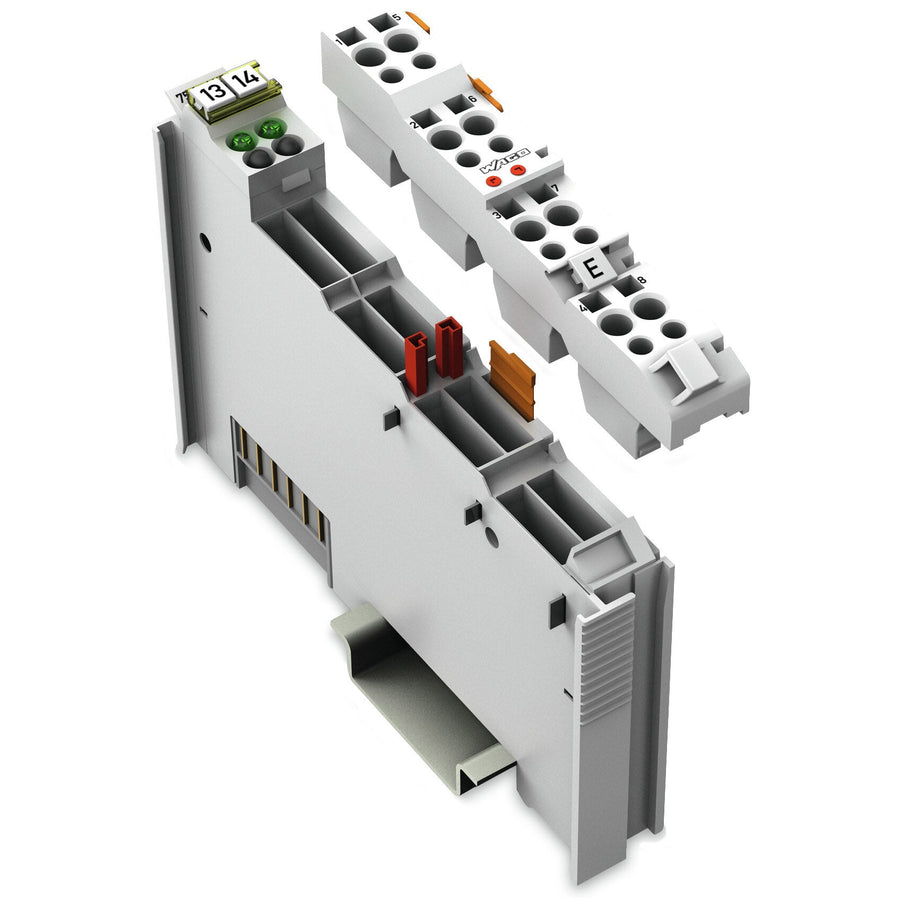

Pluggable DC digital input slice unit module - WAGO (753 series) - 2DI; 24Vdc; 3ms - 2I/O [2DI (2 x digital inputs (24Vdc transistor; high-side switching; 2-wire / 3-wire / 4-wire; 3ms filter))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 753400

Specifications

• Primary brand: WAGO
• Functions: Pluggable DC digital input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Display: LED (A/C) green -- Status DI 1 / DI 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Digital inputs: 2 x digital inputs (24Vdc transistor; high-side switching; 2-wire / 3-wire / 4-wire; 3ms filter)|Digital inputs voltage ranges -3...+5Vdc (OFF) / 15-30Vdc (ON)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 3.7mA (5Vdc; system supply)
• ETIM code: EC001599
• Customs Tariff Number: 85389099990
• eClass code: 27-24-26-04
• Order code / Manufacturer SKU: 753-400
• Manufacturer product status: Commercialized
• Equivalent to: 753400
• EAN code: 4045454424312
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-4|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 13453/E0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Pluggable DC digital input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^® (inputs)
• Connection type 1: Input
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 3a452de4-ff48-4a13-9cfc-9c5e0c10737e
• SCIP notification number (Belgium): 4e047b96-4228-46c1-a2ba-8ce22a5575da
• SCIP notification number (Bulgaria): 1fdfe5b4-466d-43ec-b7c8-1ae8e4c79230
• SCIP notification number (Czech Republic): fe5da6cb-f219-4dcd-baa5-3e3385e7344b
• SCIP notification number (Denmark): 6f03b2ec-a1f2-4364-950f-9c3e913e5105
• SCIP notification number (Finland): 1fbc6837-20cf-43a9-a351-5d23b95031b9
• SCIP notification number (France): e687c212-5c0d-4ab6-97a4-fcabb20a32f2
• SCIP notification number (Germany): 2546325f-c9a3-4262-984c-a60a9baaea17
• SCIP notification number (Hungary): c9f402b3-f9df-4163-803f-28277175a6f4
• SCIP notification number (Italy): d2525f43-757b-41ba-9218-d81d62bd4d5a
• SCIP notification number (Netherlands): 8e0400d7-554b-4751-867f-0e3712ba36b6
• SCIP notification number (Poland): bdf81789-e93a-4f5e-8f9d-7f4a49dbbf5d
• SCIP notification number (Romania): 5fe9dbfb-fdf5-44bd-8f7e-24f31fd9eb99
• SCIP notification number (Sweden): 7f2855e4-45e3-457c-a016-1147e58a19b7

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.071MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 37g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: pluggable

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 3.7mA
• Indicators: LED (A, C) green: Status DI 1, DI 2
• Input characteristic: high-side switching
• Input current per channel for signal (1) typ.: 4.5mA
• Input data width (internal) max.: 2bits
• Input filter (digital): 3ms
• Isolation: 500 V system/field
• Number of digital inputs: 2
• Number of incoming power jumper contacts: 3
• Number of outgoing power jumper contacts: 3
• Sensor connection: 2 x (2-wire, 3-wire, 4-wire)
• Sensor supply: 24 VDC
• Signal type: Digital
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Total number of channels (module): 2
• Voltage range for signal (0): −3 … +5 VDC
• Voltage range for signal (1): 15 … 30 VDC
