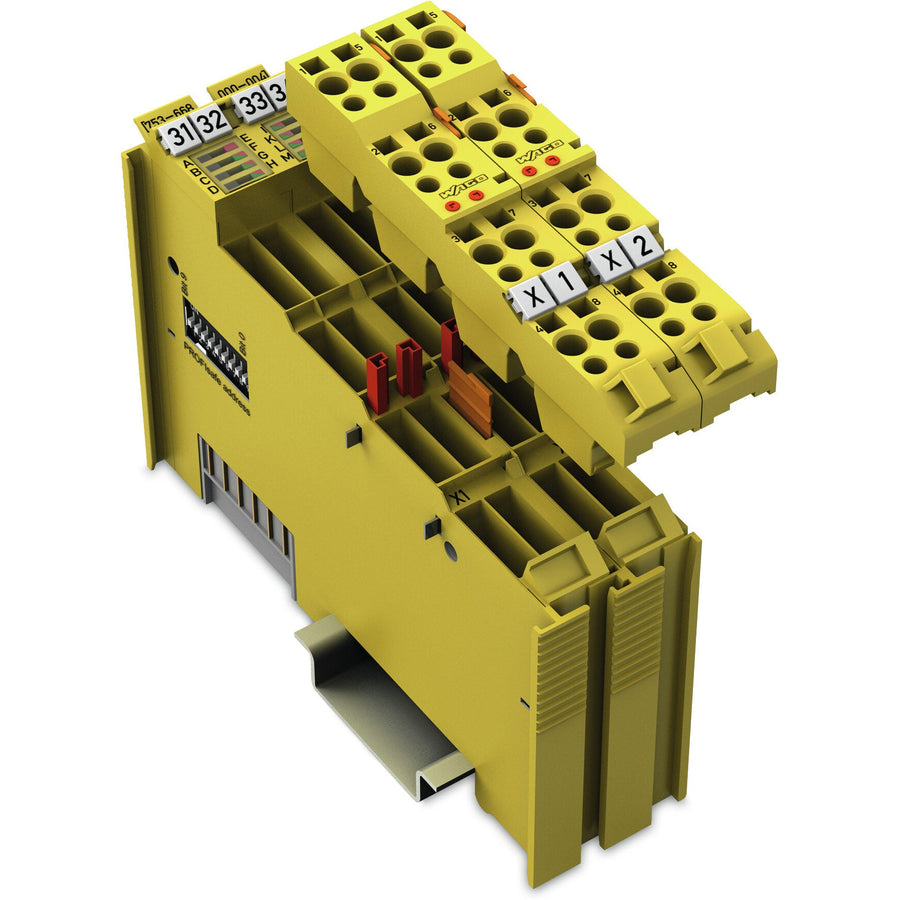

Pluggable fail-safe / safety analog input slice unit module - Safety SIL3/Cat4/Ple or SIL2/Cat2/Pld - WAGO (753 series) - 4FAI 0/4-20 mA Diff PROFIsafe - 4I/O [4AI (2 x analog inputs (0-20mA / 4-20mA; Differential; 16-bits; 2-wire / 3-wire / 4-wire))] - with PROFIsafe communication capability - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (24mm width) - IP20 - rated for 0°C...+55°C ambient - compliant with IEC61508-1; IEC61508-2; IEC61508-3; IEC61508-4; IEC61508-5; IEC61508-6; IEC61508-7; EN ISO13849-1; EN 62061 - equivalent to 753668000004

Specifications

• Primary brand: WAGO
• Functions: Pluggable fail-safe / safety analog input slice unit module|Configuration options|- PROFIsafe address adjustable via DIP switch or engineering software
• Supply voltage (DC): 5Vdc (supplied by system)|20.4-31.2Vdc (SELV/PELV) adjustable suppl. to field sensing devices
• Display: LED (E) red|LED (F-H) red/green -- Diagnostics|LED (I-M) red/green -- Input/output status
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 2 x analog inputs (0-20mA / 4-20mA; Differential; 16-bits; 2-wire / 3-wire / 4-wire)
• Measurement accuracy: +-0.05% (measuring error)|+-0.006% (temperature error)
• Dimensions: H100mm x W24mm x D69mm
• Net Width (mm): 24mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 120mA (5Vdc; system supply)|40mA (field supply; no external load)
• Customs Tariff Number: 85389099990
• ETIM code: EC001596
• GTIN code: 4055143899819
• Order code / Manufacturer SKU: 753-668/000-004
• Manufacturer product status: Commercialized
• Equivalent to: 753668000004
• EAN code: 4055143899819
• Compliant with standard(s): IEC61508-1|IEC61508-2|IEC61508-3|IEC61508-4|IEC61508-5|IEC61508-6|IEC61508-7|EN ISO13849-1|EN 62061|CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|- EN 61000-6-7 (FS)|EMC emission of interference|- EN 61000-6-4|- marine applications|- EN 61000-6-3|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|Approvals for functional safety|- Prod. Safety Funct. Safety - TUV Rheinland Industrie Service GmbH - certificate No. 968/EZ 247.18/21|- Profi-Safe - Siemens AG/ComDeC - certificate Z20240|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Class: Safety SIL3/Cat4/Ple or SIL2/Cat2/Pld
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Safety components
• Level 2 category: Safety I-O Units
• Product title: Pluggable fail-safe / safety analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• GTIN: 4055143899819
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 16 x CAGE CLAMP^®
• Connection type 1: Inputs/outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|693-98-1|7439-92-1|79-94-7|80-05-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|2-methylimidazole|4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 9cf7962e-7bd2-46a7-a8bb-c39be0e01483
• SCIP notification number (Belgium): 401c1395-fe63-4862-86de-fcededd8482a
• SCIP notification number (Bulgaria): ecd820ee-df78-45a6-909b-149423faecd9
• SCIP notification number (Czech Republic): d6a7321f-84a5-4956-a335-3a2bfe8c2c48
• SCIP notification number (Denmark): 42bdcc58-8248-4f4c-8496-3e6462c47e67
• SCIP notification number (Finland): 2f798dde-d3df-45f6-8b11-80961a8cb837
• SCIP notification number (France): af6c42ea-8cd4-4211-8f7e-6ccd543b3821
• SCIP notification number (Germany): c42f65d1-71f9-413e-8315-0fc8515f5441
• SCIP notification number (Hungary): 3a1901e6-68c1-44e6-a7d3-a82edd57c65f
• SCIP notification number (Italy): e54d70b1-4d61-4236-a8bd-215afcee7616
• SCIP notification number (Netherlands): 3cf93b02-4c28-4c38-a2d9-fa8b176eb0f4
• SCIP notification number (Poland): 443b4f6f-f2ea-4b8d-a873-da8ed5b815c8
• SCIP notification number (Romania): 988a0613-4eb1-40d0-b161-ae135596aa6e
• SCIP notification number (Sweden): 40307f7f-21c3-4529-ad8f-217c99b8db7b

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-4, marine applications, EN 61000-6-3
• EMC immunity to interference: per EN 61000-6-2, marine applications, EN 61000-6-7 (FS)
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27

Functional Safety

• Achievable safety classes: SIL 3; Category 4, PLe (two-channel); SIL 2; Category 2; PLd (one-channel)
• Safety standards: IEC 61508-1 … -7; EN ISO 13849-1; EN 62061

Material data

• Conformity marking: CE
• Fire load: 1.665MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 84.2g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note:

  Pluggable connectors and coding fingers (753 Series) are not included.

Physical data

• Depth: 69 mm / 2.717 inches
• Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
• Height: 100 mm / 3.937 inches
• Width: 24 mm / 0.945 inches

Technical data

• Common-mode voltage (max.): 60V
• Configuration options: PROFIsafe address adjustable via DIP switch or engineering software
• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 120mA
• Current consumption, field supply (module with no external load): 40mA
• Device-specific: Common mode rejection: typ. 87 dB; Sampling frequency: 100 Hz, 60 Hz, 50 Hz, 10 Hz; Configurable; Interference frequency suppression: 38 dB at 50 Hz/60 Hz; Safety accuracy: 1.25 % of upper-range value (single-channel); 1.58 % of upper-range value (two-channel)
• Indicators: LED (E) red, LED (F-H) red/green: Diagnostics; LED (I-M) red/green: Input/output status
• Isolation: 500 V system/field
• Load impedance: 300 Ω
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: 0.05%
• Number of analog inputs: 4
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Output current (module): 1.5A
• Output current per channel: 1.5A
• Protocols: PROFIsafe V2.6 (PROFINET) and V2.4 (PROFIBUS, PROFINET)
• Resolution [bit]: 16bits
• Sensor connection: 4 x (2-wire, 3-wire, 4-wire)
• Sensor supply: Outputs L1 … L4
• Signal characteristics: Differential
• Signal type: Current
• Signal type (current): 0 … 20 mA; 4 … 20 mA
• Supply voltage (field): 24 VDC, SELV/PELV (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Total number of channels (module): 4
