WAGO - 769-102

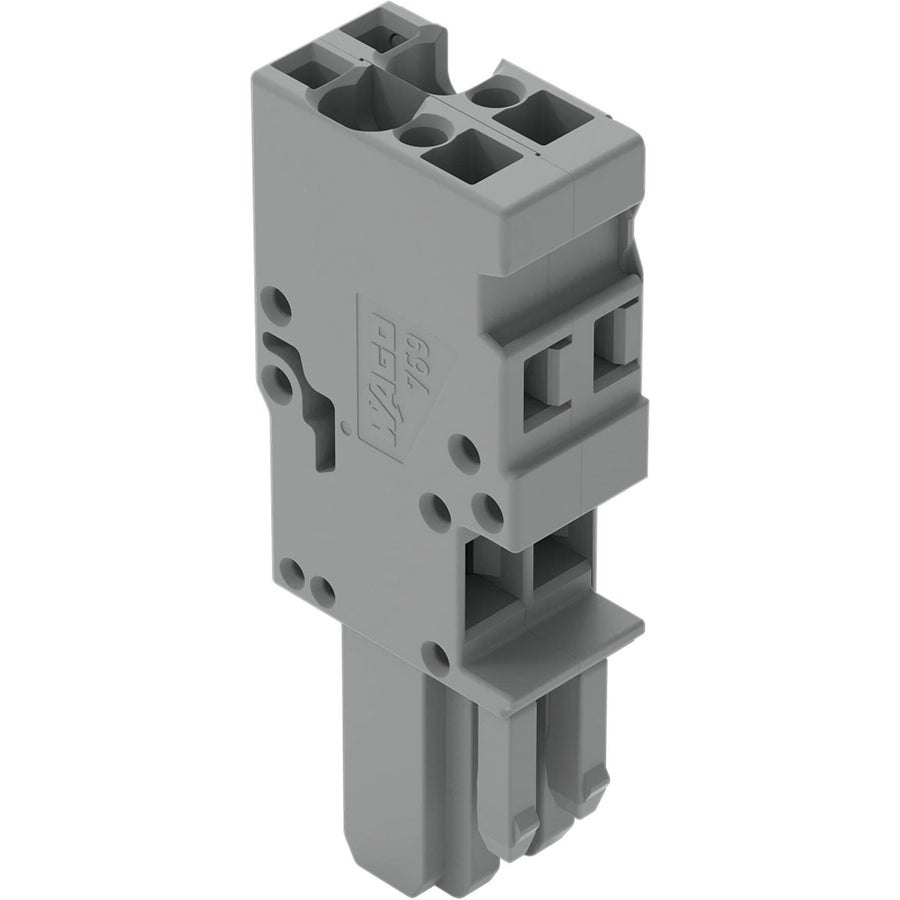

1-conductor female plug - pin spacing 5mm - WAGO (769 X-COM series) - 2-poles (2P) - 4mm2 nominal cross-section - for 0.08mm2...4mm2 / for #28AWG...#12AWG - Rated current 32A - Gray color - Rated current 32A - with CAGE CLAMP spring connections - Plug-in mounting (10mm width) - equivalent to 769102

Specifications

• Primary brand: WAGO
• Functions: 1-conductor female plug
• Design: pin spacing 5mm
• Poles: 2-poles (2P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: 32A|(IEC) 32A
• Color: Gray
• Rated operating voltage (Ue): (IEC) 500V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...4mm2 conductors|for #28AWG...#12AWG conductors|4mm2 nominal cross-section
• Mounting mode: Plug-in
• Dimensions: W10mm
• Net Width (mm): 10mm
• Material: Polyamide (PA) 66|Halogen-free materials
• eClass code: 27-14-11-06
• GTIN code: 4044918471329
• ETIM code: EC001284
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 769-102
• Manufacturer product status: Commercialized
• Equivalent to: 769102
• EAN code: 4044918471329
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7626|- CCA - DEKRA Certification B.V. - EN 61984 - certificate 2190419.02|- CCA - DEKRA Certification B.V. - IEC 61984 - certificate NL-47799/A1|- CSA - CSA Group - C22.2 - certificate 1101144|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2190419.01|- UL - Underwriters Laboratories Inc. - UL 1977 - certificate E 45171|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: 1-conductor female plug - WAGO (X-COM series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4044918471329
• Packaging type: box
• Product Group: 18 (X-COM-System)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm² / 12 AWG
• Connection 1 - Pole number: 2
• Connection 1 - Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Total number of potentials: 2

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 61984

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.141MJ
• Flammability class per UL94: V0
• Halogen-free: Yes
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 6.2g

Mechanical data

• Anti-rotation protection: Yes
• Direct ground contact to DIN-rail/drilled hole/housing: No
• Marking level: Side marking
• Variable coding: Yes

Notes

• Safety Information: According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.

Physical data

• Depth: 18.3 mm / 0.72 inches
• Height: 45.2 mm / 1.78 inches
• Module width: 5 mm / 0.197 inches
• Width: 10 mm / 0.394 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Female connector/socket
• Mismating protection: No
• Plugging without loss of pin spacing: Yes
