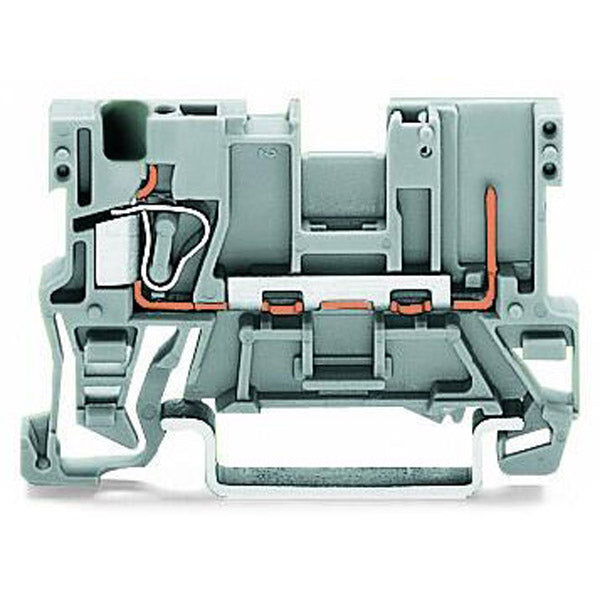

WAGO - 769-176

Carrier feed-through/thru terminal block with 1-deck/level + center marking slot - WAGO (769 X-COM series) - Gray - 1 feed-through pole (1P) / 2-wires (1 clamp + 1 plug-in pin) (1+1) - 4mm2 nominal cross-section - for 0.08mm2...4mm2 / for #28AWG...#12AWG - Rated current 32A - with CAGE CLAMP spring connections + Plug-in pin connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5mm width) - equivalent to 769176

Specifications

• Primary brand: WAGO
• Functions: Carrier feed-through/thru terminal block
• Design: 1-deck/level|center marking slot
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 32A|(UL) 20A|(CSA) 20A
• Color: Gray
• Connection capacity: 2-wires (1 clamp + 1 plug-in pin) (1+1)
• Rated operating voltage (Ue): (IEC) 500V|(UL) 300V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections|Plug-in pin connections
• Cross-section: for 0.08mm2...4mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors|4mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H52.5mm x W5mm x D28.5mm
• Net Width (mm): 5mm
• Material: Polyamide (PA) 66
• ETIM code: EC000897
• Customs Tariff Number: 85366990990
• GTIN code: 4045454871697
• eClass code: 27-14-11-20
• Order code / Manufacturer SKU: 769-176
• Manufacturer product status: Commercialized
• Equivalent to: 769176
• EAN code: 4045454871697
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7626|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 14048 - certificate CQC14012115106|- CSA - CSA Group - C22.2 - certificate 1101144|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2190419.01|- UL - Underwriters Laboratories Inc. - UL 1977 - certificate E 45171|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Carrier feed-through/thru terminal block - 1-deck/level - WAGO (X-COM series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4045454871697
• Packaging type: box
• Product Group: 18 (X-COM-System)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 1
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm² / 12 AWG
• Connection 1 - Number of connection points: 1
• Connection 1 - Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Connection 2 - Number of connection points: 1
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Power Loss - Power loss, per pole (potential): 1.024W
• Power Loss - Rated current I_N for specified power loss: 32A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.101MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 5.3g

Mechanical data

• Design: horizontal type
• Marking level: Center marking
• Mounting type: DIN-35 rail

Notes

• Safety Information: A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM®-SYSTEM terminal strip.

Physical data

• Depth from upper-edge of DIN-rail: 28.5 mm / 1.122 inches
• Height: 52.5 mm / 2.067 inches
• Width: 5 mm / 0.197 inches
