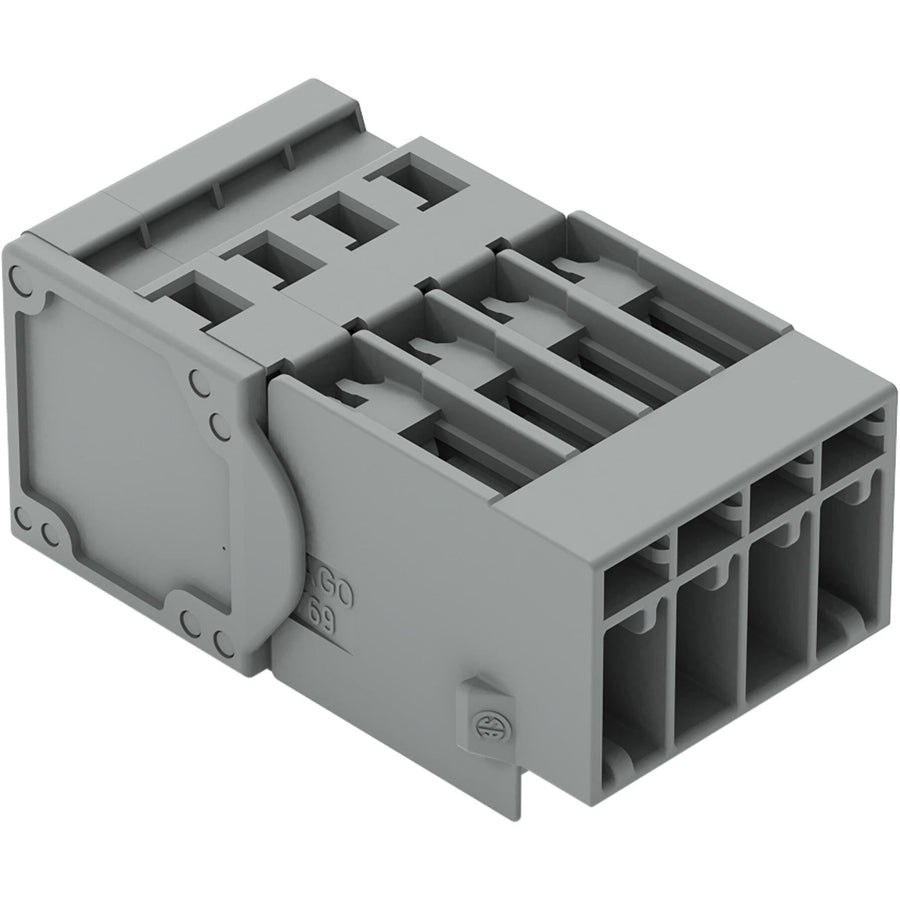

Male connector - pin spacing 5mm - WAGO (769 X-COM series) - 4-poles (4P) - 4mm2 nominal cross-section - for 0.08mm2...4mm2 / for #28AWG...#12AWG - Rated current 32A - Gray color - with CAGE CLAMP spring connections - Snap-in mounting - equivalent to 769604

Specifications

• Primary brand: WAGO
• Functions: Male connector
• Design: pin spacing 5mm
• Poles: 4-poles (4P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: 32A
• Color: Gray
• Rated operating voltage (Ue): (IEC) 500V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...4mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors|4mm2 nominal cross-section
• Mounting mode: Snap-in
• Dimensions: H18.3mm x W23.6mm x D40.2mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-06
• GTIN code: 4044918520898
• ETIM code: EC001284
• Customs Tariff Number: 85366930000
• Order code / Manufacturer SKU: 769-604
• Manufacturer product status: Commercialized
• Equivalent to: 769604
• EAN code: 4044918520898
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7626|- CCA - DEKRA Certification B.V. - EN 61984 - certificate 2190419.02|- CCA - DEKRA Certification B.V. - IEC 61984 - certificate NL-47799/A1|- CSA - CSA Group - C22.2 - certificate 1101144|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2190419.01|- UL - Underwriters Laboratories Inc. - UL 1977 - certificate 20151210-E45171|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Male connector - WAGO (X-COM series)

Commercial data

• Country of origin: PL
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4044918520898
• Packaging type: Box
• Product Group: 18 (X-COM-System)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm² / 12 AWG
• Connection 1 - Pole number: 4
• Connection 1 - Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Total number of potentials: 4

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.294MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 12.2g

Mechanical data

• Anti-rotation protection: Yes
• Direct ground contact to DIN-rail/drilled hole/housing: No
• Mounting type: Flying leads
• Variable coding: Yes

Physical data

• Depth: 40.2 mm / 1.583 inches
• Height: 18.3 mm / 0.72 inches
• Pin spacing: 5 mm / 0.197 inches
• Width: 23.6 mm / 0.929 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Male connector/plug
• Mismating protection: No
• Plugging without loss of pin spacing: No
