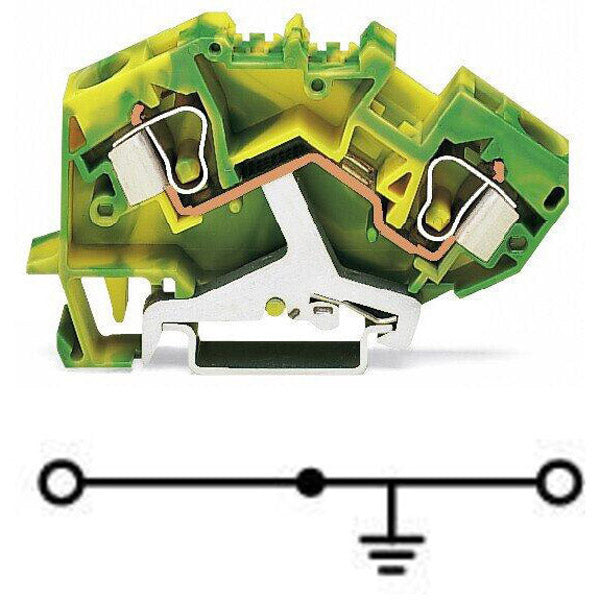

WAGO - 784-607

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (784 TOPJOB Classic series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...10mm2 / for #24AWG...#8AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (10mm width) - equivalent to 784607

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|center marking slot
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...10mm2 fine stranded or solid conductors|for #24AWG...#8AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H82.5mm x W10mm x D43.5mm
• Net Width (mm): 10mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-41
• GTIN code: 4045454084752
• ETIM code: EC000901
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 784-607
• Manufacturer product status: Commercialized
• Equivalent to: 784607
• EAN code: 4045454084752
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7379|- CSA - CSA Group - C22.2 - certificate 1536078|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2178517.01|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO (TOPJOB Classic series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454084752
• Packaging type: box
• PU (SPU): 25 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 91597e0c-0df8-4c90-af61-1ff5f33ab547
• SCIP notification number (Belgium): e2b9a668-ef36-45a8-b345-a87cca6bc503
• SCIP notification number (Bulgaria): c3031d2b-a975-4827-a63a-89fa1eea937a
• SCIP notification number (Czech Republic): 52af48f0-8991-4bc3-8fa3-611f3ba49736
• SCIP notification number (Denmark): 4ce39e9a-9d56-4e58-8642-a2daaafc0c60
• SCIP notification number (Finland): ab884eb3-3c8f-4de5-bef1-375a57278207
• SCIP notification number (France): 03366bb6-003f-442d-bef3-32dab5cf381c
• SCIP notification number (Germany): 1ebc7e41-9169-4cf7-a8a3-f1bd9c03324f
• SCIP notification number (Hungary): d89bf153-1c07-4a3b-bfe5-7947047cb806
• SCIP notification number (Italy): b59b6339-6e73-4c70-8b97-42e8e821feca
• SCIP notification number (Netherlands): 2b2444b3-327d-4f8f-8744-d719a1793f91
• SCIP notification number (Poland): 0abcfa68-0b0e-473d-af91-8ed9923d793d
• SCIP notification number (Romania): 3db53d7c-859d-412b-8cfc-e5d82b11b404
• SCIP notification number (Sweden): dc0869ac-b710-4e17-b169-709fdd872173

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.342MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 33.7g

Mechanical data

• Design: angled
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 43.5 mm / 1.713 inches
• Height: 82.5 mm / 3.248 inches
• Width: 10 mm / 0.394 inches
