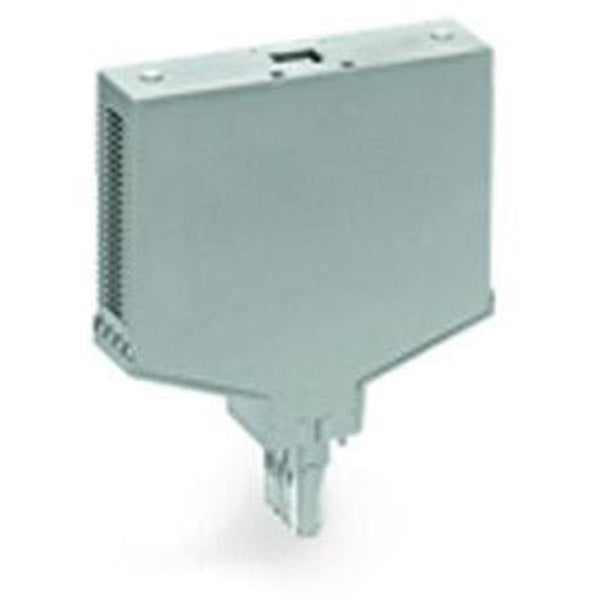

WAGO - 786-102

Empty component plug housing - type 15 - WAGO (786 series) - 8-poles (8P) - Rated current 6A - Gray color - Plug-in mounting - equivalent to 786102

Specifications

• Primary brand: WAGO
• Functions: Empty component plug housing
• Design: type 15
• Poles: 8-poles (8P)
• Rated current: 6A
• Color: Gray
• Rated operating voltage (Ue): 250V
• Mounting mode: Plug-in
• Dimensions: H84mm x W20mm x D82.5mm
• eClass code: 27-18-27-02
• GTIN code: 4050821082309
• Customs Tariff Number: 85366990990
• ETIM code: EC001031
• Order code / Manufacturer SKU: 786-102
• Manufacturer product status: Commercialized
• Equivalent to: 786102
• EAN code: 4050821082309
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Degree of pollution: 3
• Level 1 category: Electrical components
• Product title: Empty component plug housing - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-18-27-02
• eCl@ss 9.0: 27-18-27-02
• ETIM 8.0: EC001031
• ETIM 9.0: EC001031
• GTIN: 4050821082309
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Connection data

• Pole number: 8

Electrical data

• Rated continuous current: 6A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.878MJ
• Weight: 36.1g

Mechanical data

• Housing design: Plug for carrier terminal blocks
• Mounting type: Pluggable module for receptacle terminal blocks

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.243 inches
• Height: 84 mm / 3.307 inches
• Width: 20 mm / 0.787 inches

Safety and protection

• Pollution degree: 3
• Rated impulse withstand voltage: 4kV
• Rated voltage: 250V
