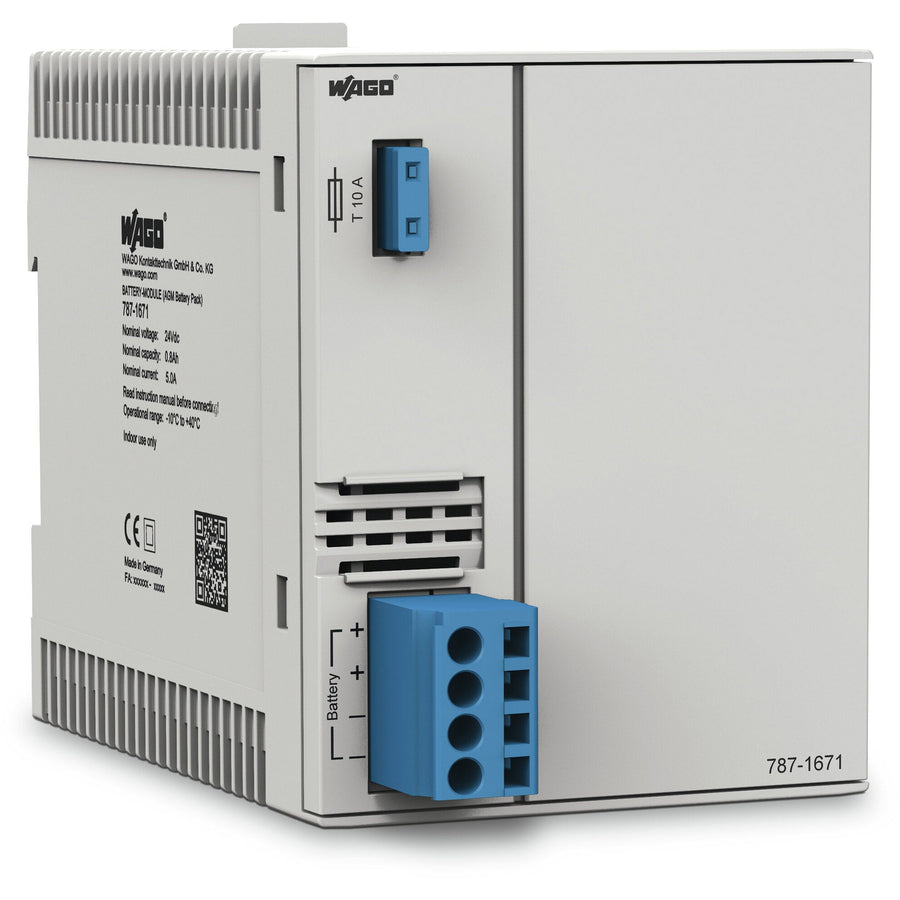

DC-to-DC Uninterruptible Power Supply (UPS) unit - WAGO (787 series) - 24Vdc / 5A output - Input voltage 24Vdc (DC) - with CAGE CLAMP spring connections - DIN-35 rail mounting (72mm width) - IP20 - rated for -15°C...+40°C ambient - equivalent to 7871671

Specifications

• Primary brand: WAGO
• Functions: DC-to-DC Uninterruptible Power Supply (UPS) unit|Parallel operation possible
• Supply voltage (DC): 24Vdc
• Type of network: DC
• Rated current: 5A
• Output voltage (DC): 24Vdc
• Connection type: CAGE CLAMP spring connections
• Protection functions: T 10A / 250Vac internal fuse
• Mounting mode: DIN-35 rail
• Dimensions: H97mm x W72mm x D124mm
• Net Width (mm): 72mm
• Ambient air temperature for operation: -15°C...+40°C
• Ambient air temperature for storage: -20°C...+40°C
• Humidity: 5-80% relative humidity (RH; non-condensing)
• GTIN code: 4055143535724
• eClass code: 27-05-04-03
• ETIM code: EC000357
• Customs Tariff Number: 85072080900
• Order code / Manufacturer SKU: 787-1671
• Manufacturer product status: Commercialized
• Equivalent to: 7871671
• EAN code: 4055143535724
• Compliant with standard(s): CE|EN 61010-1|EN 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• MTBF (Mean Time Between Failures): 500 000h
• Level 1 category: Electrical components
• Level 2 category: Uninterruptible Power Supply (UPS)
• Product title: DC-to-DC Uninterruptible Power Supply (UPS) unit - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85072080900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-05-04-03
• eCl@ss 9.0: 27-05-04-03
• ETIM 8.0: EC000357
• ETIM 9.0: EC000357
• GTIN: 4055143535724
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Cable length (max.): 3 m
• Connection technology: CAGE CLAMP^®
• Connection type 1: Input/Output/Battery control
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• WAGO connector: WAGO 721 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -15 … +40 °C (-20 … +40 °C (during discharge))
• Ambient temperature (storage): -20 … +40 °C
• Relative humidity: 5 … 80 % (no condensation permissible)

Material data

• Fire load: 0.124MJ
• Weight: 1000g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller.

Physical data

• Depth from upper-edge of DIN-rail: 124 mm / 4.882 inches
• Height: 97 mm / 3.819 inches
• Width: 72 mm / 2.835 inches

Safety and protection

• MTBF: > 500,000 h (per IEC 61709)
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Series operation: No
• Service life (typ.): 5 / 4 / 2 a (20 / 30 / 40 °C)

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 61010-1|EN 61010-2-201
• Standards/specifications (pending): UL 508

Technical data

• Circuit protection - Internal fuse: T 10 A / 250 VAC
• Energy storage systems - Charging current: 0.2 A (recommended)
• Energy storage systems - End-of-charge voltage: 27 VDC (25 °C)
• Energy storage systems - Storage type: Lead-acid (AGM)
• Input - Nominal input voltage U_{i nom}: 24 VDC
• Output - Nominal output current I_{o nom}: 5 A
• Output - Nominal output voltage U_{o nom}: 24 VDC
• Signaling and communication - Signaling: Battery control (C+; C-)
