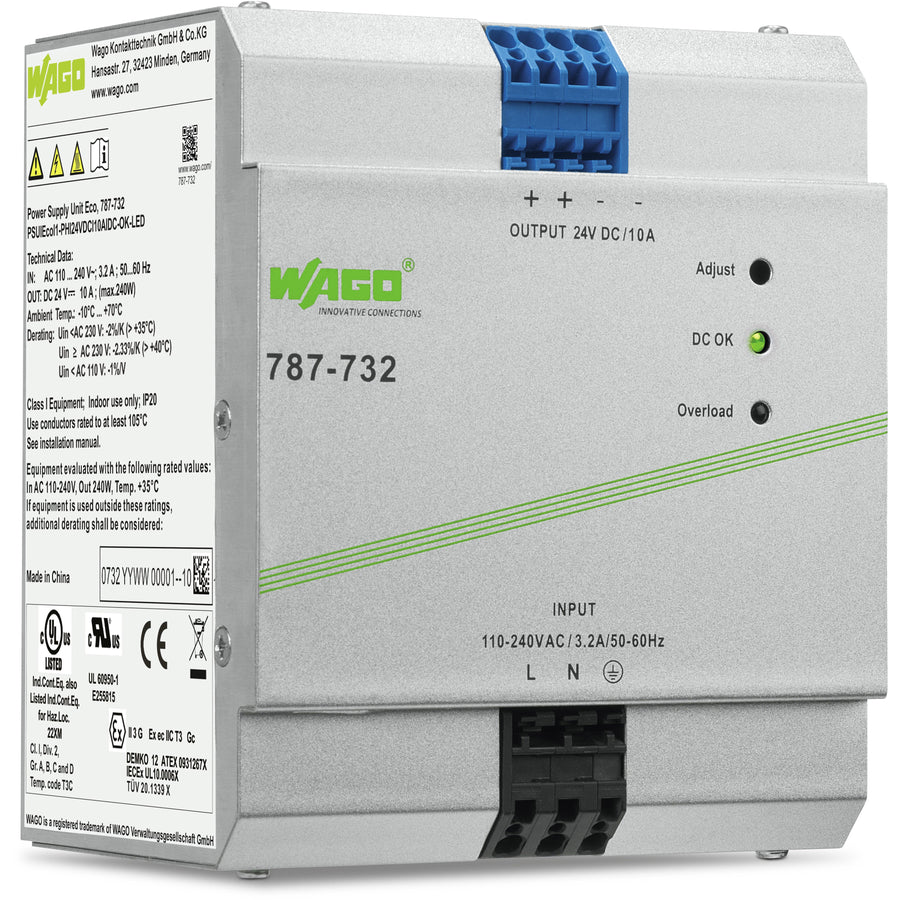

WAGO - 787-732

AC-to-DC Eco switch-mode power supply unit (SMPS PSU) - WAGO (Power supply units EPSITRON Eco series) - 24Vdc (SELV) / 10A / 240W output - Input voltage 100-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac) (Single-phase AC (1AC) or DC) - with CAGE CLAMP spring connections - DIN-35 rail mounting (110mm width) - IP20 - rated for -10°C...+70°C ambient - replaces obsolete component(s) 787-632 - equivalent to 787732

Specifications

• Primary brand: WAGO
• Network frequency: 47-63Hz
• Functions: AC-to-DC Eco switch-mode power supply unit (SMPS PSU)|Series operation possible|Parallel operation possible
• Supply voltage (AC): 100-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac)
• Display: LED status indication (DC OK -- green; Overload -- red)
• Type of network: Single-phase AC (1AC) or DC
• Rated current: 10A (-10...+40°C)|3.01A (70°C; input voltage < 230Vac; -2.33% output derating for every 1K temperature rise above 40°C)
• Rated power: 240W
• Output voltage (DC): 24Vdc (SELV)|22-28Vdc (adjustable)
• Hold time: 20ms (230Vac input)
• Connection type: CAGE CLAMP spring connections
• Protection functions: F 5A / 250Vac internal fuse|Constant power (in overload range 1.15...1.4 x Io nom)|Shutdown and automatic restart in the event of a short circuit|Short-circuit protection|Open circuit protection
• Efficiency: 0.86
• Mounting mode: DIN-35 rail
• Measurement accuracy: ≤ 1% (output error)
• Dimensions: H136mm x W110mm x D92mm
• Net Width (mm): 110mm
• Ambient air temperature for operation: -10°C...+70°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 10-95% relative humidity (RH; non-condensing)
• Current consumption: 1.2A (230Vac)|3.2A (115Vac)|30A inrush
• ETIM code: EC002540
• eClass code: 27-04-07-01
• GTIN code: 4045454908140
• Customs Tariff Number: 85044083900
• Order code / Manufacturer SKU: 787-732
• Manufacturer product status: Commercialized
• Equivalent to: 787732
• Replaces: 787-632
• EAN code: 4045454908140
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|- Isolation voltage (pri.-sec.; AC) -- 3000V|- Isolation voltage (pri.-PE; AC) -- 1500V|CE|UKCA|EN 61010-1|EN 61204-3|EN IEC 61010-2-201|SEMI F47|UL 121201|UL 61010-1|UL 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- MFD for SEMI F47 - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: China
• Degree of pollution: 2
• Ripple: 100mVpp (output voltage)
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: AC-to-DC Eco switch-mode power supply unit (SMPS PSU) - WAGO (EPSITRON Eco series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4045454908140
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Connection type 1: Input/output
• Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Note (conductor cross-section): 12 AWG: THHN, THWN
• Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• WAGO connector: WAGO 745 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Bulgaria): b5b34780-c0ef-484a-854d-ba54299bc271
• SCIP notification number (Czech Republic): 7739d817-9f87-4c79-add7-5f7cb472e792

Environmental requirements

• Ambient temperature (operation): -10 … +70 °C
• Ambient temperature (storage): -25 … +85 °C
• Climatic category: 3K3 (per EN 60721)
• Derating: -2.33 %/K (> 40 °C; 230 VAC)
• Relative humidity: 10 … 95 % (no condensation permissible)

Material data

• Fire load: 10.1MJ
• Weight: 1200g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 92 mm / 3.622 inches
• Height: 136 mm / 5.354 inches
• Width: 110 mm / 4.331 inches

Safety and protection

• Isolation voltage (pri.-PE, AC): 1,500V
• Isolation voltage (pri.-sec., AC): 3,000V
• Open-circuit-proof: Yes
• Overvoltage category: II
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: I
• Protection type: IP20; per EN 60529
• Series operation: Yes
• Short-circuit-protected: Yes
• Transient suppression (primary): Varistor

Standards and specifications

• Conformity marking: CE; UKCA
• Standards/specifications: EN 61010-1|EN 61204-3|UL 61010-1|UL 61010-2-201|UL 121201|SEMI F47|EN IEC 61010-2-201

Technical data

• Circuit protection - Backup fusing (recommended): Circuit breaker: 10 A, 16 A; Tripping characteristic: B or C
• Circuit protection - Internal fuse: F 5 A / 250 VAC
• Efficiency/power losses - Efficiency (typ.): 86 % (230 VAC)
• Efficiency/power losses - Power loss (max.) P_{l (max.)}: 53 W (110 VAC / 24 VDC; 11 A)
• Efficiency/power losses - Power loss P_l: ≤ 37.5 W (230 VAC; nominal load)
• Input - Input current I_i: ≤ 1.2 A (230 VAC); ≤ 3.2 A (115 VAC)
• Input - Input voltage range: 1 x 100 … 264 VAC
• Input - Nominal input voltage U_{i nom}: 1 x 110 … 240 VAC
• Input - Nominal mains frequency range: 47 … 63 Hz; 0 Hz
• Input - Phases: 1
• Input - Power factor correction (PFC): Active
• Output - Default setting: DC 24 V
• Output - Deviation: ≤ 1 %
• Output - Nominal output current I_{o nom}: 10 A (24 VDC)
• Output - Nominal output power: 240W
• Output - Nominal output voltage U_{o nom}: 24 VDC (SELV)
• Output - Overload behavior: Constant power (in overload range: 1.15 … 1.4 x I_{o nom}); Shutdown and automatic restart in the event of a short circuit
• Signaling and communication - Operation status indicator: Green LED (24 VDC OK)|Red LED (overload)
• Signaling and communication - Signaling: 1 x LED DC OK (green)|1 x Overload LED (red)
