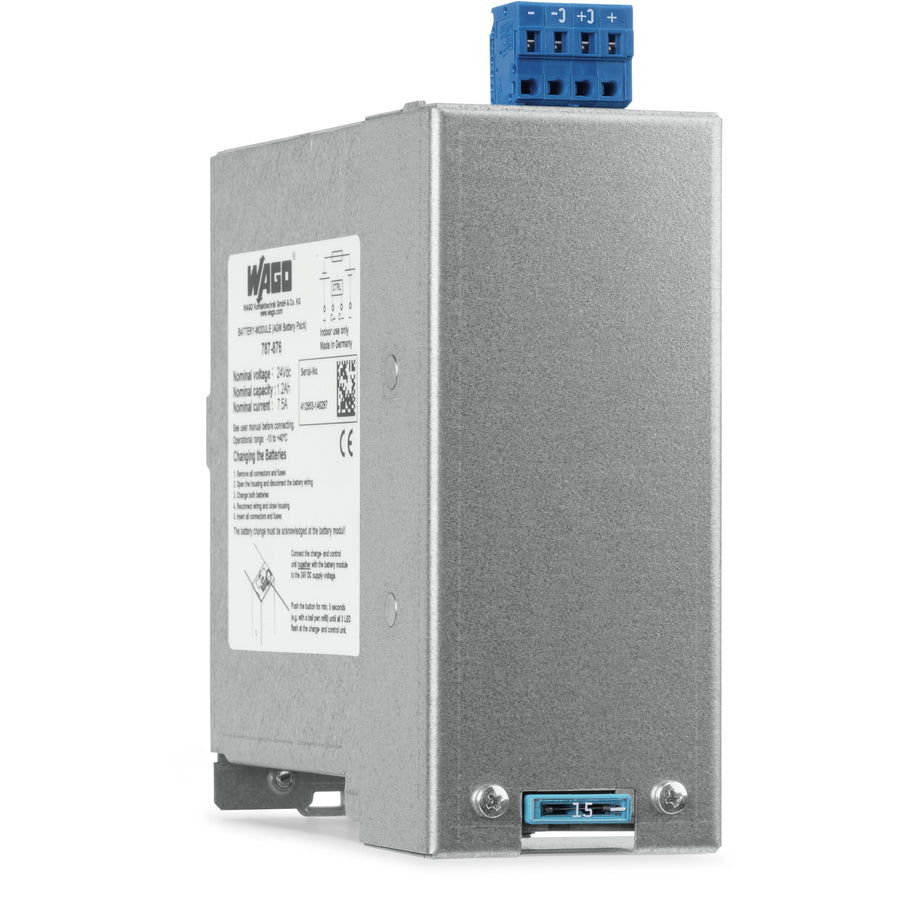

Lead-acid AGM battery module - WAGO (787 series) - 24Vdc / 7.5A output - 1.2Ah battery storage capacity - Input voltage 24Vdc - with CAGE CLAMP spring connections - DIN-35 rail mounting - IP20 - rated for -10°C...+40°C ambient - equivalent to 787876

Specifications

• Primary brand: WAGO
• Functions: Lead-acid AGM battery module|Parallel operation possible
• Design: service life -- 5yrs (20°C) / 4yrs (30°C) / 2yrs (40°C)
• Supply voltage (DC): 24Vdc
• Rated current: 7.5A
• Output voltage (DC): 24Vdc
• Connection type: CAGE CLAMP spring connections
• Protection functions: T 15A internal fuse
• Mounting mode: DIN-35 rail
• Dimensions: H153mm x W55mm x D126.6mm|H6.024" x W2.165" x D4.984"
• Ambient air temperature for operation: -10°C...+40°C
• Ambient air temperature for storage: -20°C...+40°C
• Humidity: 5-80% relative humidity (RH; non-condensing)
• Current consumption: 0.3A charging current
• GTIN code: 4050821298243
• ETIM code: EC000357
• eClass code: 27-05-04-03
• Customs Tariff Number: 85072080900
• Order code / Manufacturer SKU: 787-876
• Manufacturer product status: Commercialized
• Equivalent to: 787876
• Storage capacity: 1.2Ah
• EAN code: 4050821298243
• Compliant with standard(s): CE|UL 508|VdS-tested battery|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. - UL 508 - certificate E255817 UR|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• MTBF (Mean Time Between Failures): 500 000h
• Level 1 category: Electrical components
• Level 2 category: Uninterruptible Power Supply (UPS)
• Product title: Lead-acid AGM battery module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85072080900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-05-04-03
• eCl@ss 9.0: 27-05-04-03
• ETIM 8.0: EC000357
• ETIM 9.0: EC000357
• GTIN: 4050821298243
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Cable length (max.): 3 m (Input, Output, Battery Control)
• Connection technology: CAGE CLAMP^®
• Connection type 1: Input/Output/Battery control
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• WAGO connector: WAGO 231 Series

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 35ab2e59-bacb-4392-9887-576ff84b6de5
• SCIP notification number (Belgium): e4c5e777-34dc-4ce1-8ff5-b0c8c6a29bca
• SCIP notification number (Bulgaria): e7bd2258-d862-47b1-b90f-94af976b385a
• SCIP notification number (Czech Republic): 1cadbc50-db83-42ed-9bae-9cafc51d73f8
• SCIP notification number (Denmark): f08b16c7-5e67-4830-bdc2-847555db677b
• SCIP notification number (Finland): 4f9f0273-73f8-4987-9908-fab577177f3f
• SCIP notification number (France): 120ad21d-5464-4f71-8b04-64430d335c9c
• SCIP notification number (Germany): 72bdfcdf-039a-4903-a04f-647d7a66dbd3
• SCIP notification number (Hungary): 3c7304ff-e68d-4940-a26c-031c28a3a9ba
• SCIP notification number (Italy): 65f71f76-8ea5-46d5-9032-31844fa05d8f
• SCIP notification number (Netherlands): 27b8a7a0-71f4-4953-a258-df1fb592c439
• SCIP notification number (Poland): a39e1dfa-494b-46e3-ab0c-a5f0e54f8fa2
• SCIP notification number (Romania): ebab566d-d028-4149-83d8-c24378ed2007
• SCIP notification number (Sweden): 31dbd2a0-4e36-455c-98b1-4241963e568c

Environmental requirements

• Ambient temperature (operation): -10 … +40 °C
• Ambient temperature (storage): -20 … +40 °C
• Relative humidity: 5 … 80 % (no condensation permissible)

Material data

• Weight: 1980g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller.

Physical data

• Depth from upper-edge of DIN-rail: 126.6 mm / 4.984 inches
• Height: 153 mm / 6.024 inches
• Note (dimensions): Height with connector
• Width: 55 mm / 2.165 inches

Safety and protection

• MTBF: > 500,000 h (per IEC 61709)
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Series operation: No
• Service life (typ.): 5 / 4 / 2 a (20 / 30 / 40 °C)

Standards and specifications

• Conformity marking: CE
• Standards/specifications: VdS‑tested battery|UL 508

Technical data

• Circuit protection - Internal fuse: T 15 A
• Energy storage systems - Charging current: ≤ 0.3 A
• Energy storage systems - End-of-charge voltage: 27 VDC (25 °C)
• Energy storage systems - Storage type: Lead-acid (AGM)
• Input - Nominal input voltage U_{i nom}: 24 VDC
• Output - Nominal output current I_{o nom}: 7.5 A
• Output - Nominal output voltage U_{o nom}: 24 VDC
• Signaling and communication - Signaling: Battery control (C+; C-)
