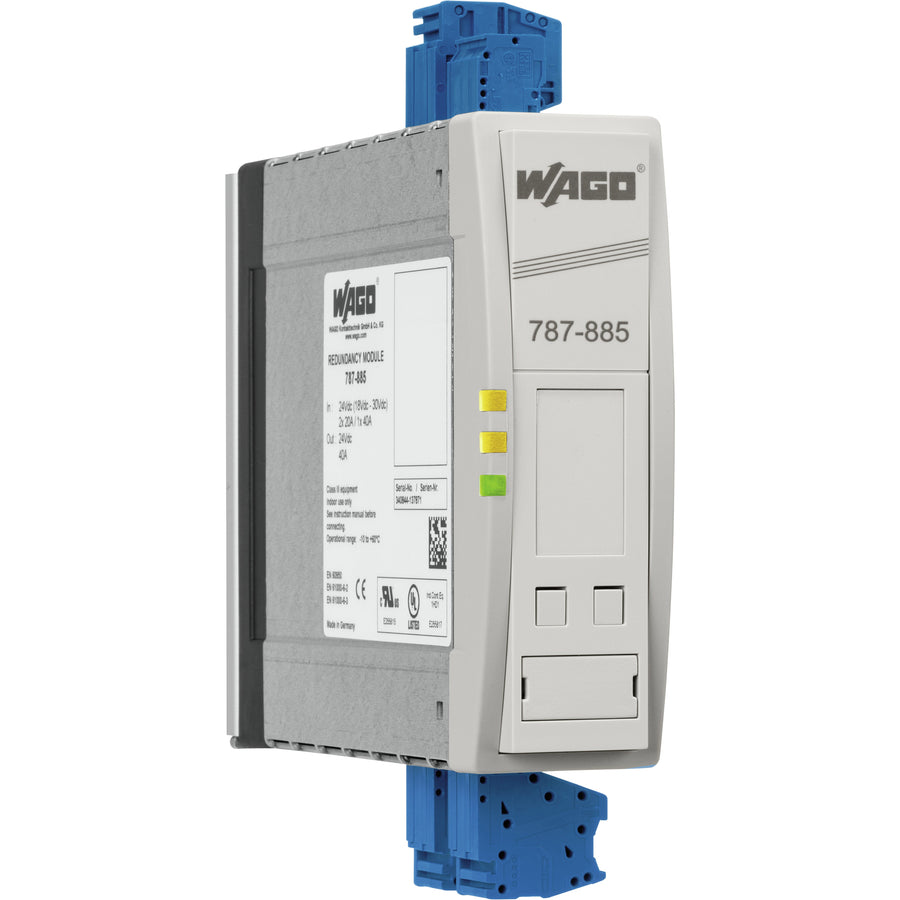

WAGO - 787-885

Redundancy module - WAGO (787 series) - 24Vdc / 40A output - Input voltage 18-30Vdc x 2 - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (40mm width) - IP20 - equivalent to 787885

Specifications

• Primary brand: WAGO
• Functions: Redundancy module|Parallel operation possible
• Supply voltage (DC): 18-30Vdc x 2
• Display: LED status indication (IN1 -- yellow; IN2 -- yellow; OUT -- green)
• Rated current: 40A
• Output voltage (DC): 24Vdc
• Connection type: Push-in CAGE CLAMP spring connections
• Efficiency: 0.97
• Mounting mode: DIN-35 rail
• Dimensions: H181mm x W40mm x D163mm
• Net Width (mm): 40mm
• Ambient air temperature for operation: -10°C...+60°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 5-96% relative humidity (RH; non-condensing)
• ETIM code: EC002540
• Customs Tariff Number: 85044095900
• GTIN code: 4045454909802
• eClass code: 27-04-07-01
• Order code / Manufacturer SKU: 787-885
• Manufacturer product status: Commercialized
• Equivalent to: 787885
• EAN code: 4045454909802
• Compliant with standard(s): Safety and protection|- Isolation voltage (connectors - housing) -- 0.5kVDC|CE|EN 60950|EN 61000-6-2|EN 61000-6-3|UL 508|UL 60950|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. - UL 508 - certificate E255817|- UR - Underwriters Laboratories Inc. - UL 60950-1 - certificate E255815|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• MTBF (Mean Time Between Failures): 500 000h
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Level 3 category: Redundancy units for power supply circuits
• Product title: Redundancy module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85044095900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4045454909802
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®|CAGE CLAMP^®
• Connection type: Relay
• Connection type 1: Input/output
• Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG|0.08 … 2.5 mm² / 28 … 12 AWG
• Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG|0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 13 … 15 mm / 0.51 … 0.59 inches|8 … 9 mm / 0.31 … 0.35 inches
• WAGO connector: WAGO 831 Series
• WAGO connector 2: WAGO 231 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -10 … +60 °C
• Ambient temperature (storage): -25 … +85 °C
• Relative humidity: 5 … 96 % (no condensation permissible)

Material data

• Weight: 972g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 163 mm / 6.417 inches
• Height: 181 mm / 7.126 inches
• Note (dimensions): Height with connector|Height with connector
• Width: 40 mm / 1.575 inches

Safety and protection

• Isolation voltage (connectors – housing): 0.5 kVDC
• MTBF: > 500,000 h (per IEC 61709)
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Resistance to reverse feed: ≤ 33 VDC
• Reverse voltage protection: Yes
• Series operation: Yes

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 60950|UL 60950|UL 508|EN 61000-6-2|EN 61000-6-3

Technical data

• Circuit protection - Internal fuse: No
• Efficiency/power losses - Efficiency (typ.): 97 %
• Efficiency/power losses - Power loss P_l: ≤ 1.5 W; ≤ 14 W (24 VDC; 20 A); ≤ 26 W (48 VDC; 40 A)
• Input - Input current I_i: ≤ 20 A (per path); ≤ 40 A (in total)
• Input - Input voltage range: 2 x 18 … 30 VDC
• Input - Nominal input voltage U_{i nom}: 2 x 24 VDC|2 x DC 24 V
• Input - Nominal mains frequency range: 0 Hz
• Output - Nominal output current I_{o nom}: 20 A (redundancy operation); 40 A (Parallel operation)
• Output - Nominal output power: 960W
• Output - Nominal output voltage U_{o nom}: 24 VDC
• Output - Output voltage range: 18 … 30 VDC (U_e − voltage drop)
• Output - Voltage drop: ≤ 0.6 V (Input/output)
• Signaling and communication - Operation status indicator: Green LED (U_o)|2 x Yellow LED (U_i)
• Signaling and communication - Signaling: 1 x OUT LED (green)|1 x IN1 LED (yellow)|1 x IN2 LED (yellow)|1 x Isolated relay contact (max. 30 VDC; 1 A)
