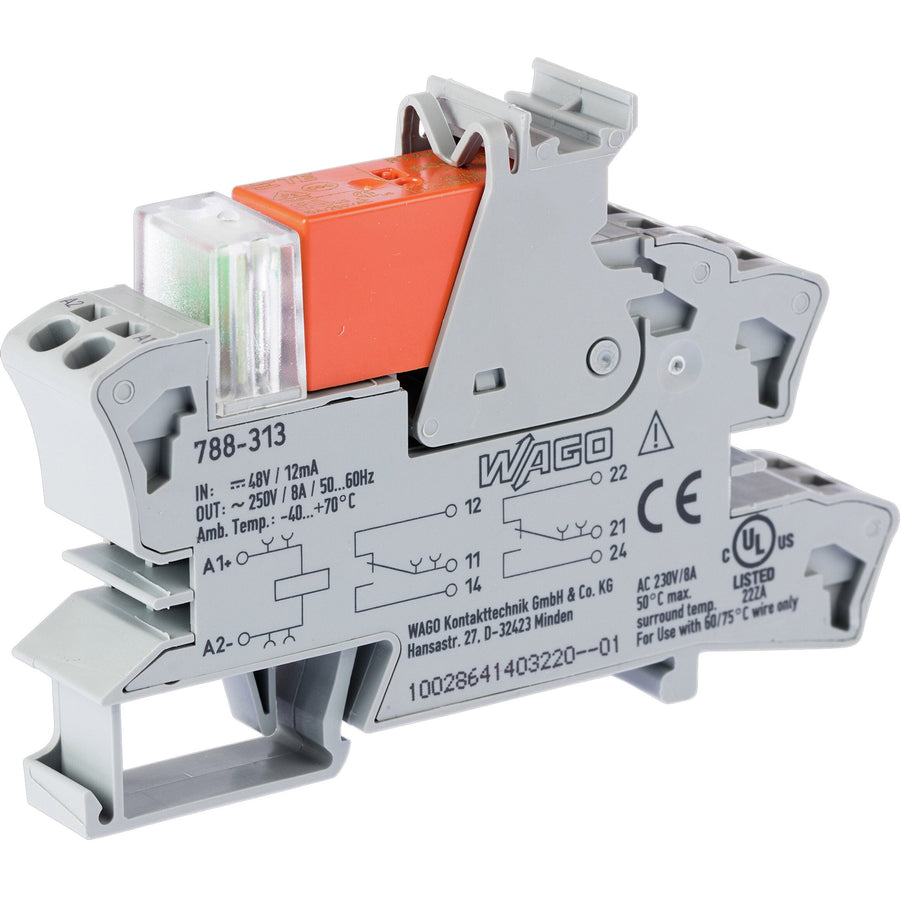

WAGO - 788-313

Plug-in relay assembly with socket base + red LED - WAGO (788 series) - 2-poles (2P) - control voltage 43.2-52.8Vdc (48Vdc nom.; 0.9...1.1 x Uc) - 2C/O / DPDT (Double Pole Double Throw) contact - Electromechanical design - Rated current 8A (continuous) / 3A (250Vac; AC-15) / 2A (24Vdc; DC-13) - with Push-in CAGE CLAMP connections - DIN-35 rail mounting (15mm width) - IP20 - material Silver-Nickel (AgNi 90/10) contacts - equivalent to 788313

Specifications

• Primary brand: WAGO
• Functions: Plug-in relay assembly
• Design: socket base|red LED|Electromechanical design|12V / 10mA recommended minimum switching load
• Poles: 2-poles (2P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 8A (continuous)|3A (250Vac; AC-15)|2A (24Vdc; DC-13)|15A (4s) AC inrush maximum current
• Rated operating voltage (Ue): 250V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 4kV
• Connection type: Push-in CAGE CLAMP connections
• Control Voltage (DC): 43.2-52.8Vdc (48Vdc nom.; 0.9...1.1 x Uc)
• Mounting mode: DIN-35 rail
• Response time: (OFF=>ON / contacts closing) 8ms / 0.008s|(ON=>OFF / contacts opening) 13ms / 0.013s
• Contacts type: 2C/O / DPDT (Double Pole Double Throw) contact
• Dimensions: H86mm x W15mm x D54mm|15mm width
• Material: Silver-Nickel (AgNi 90/10) contacts
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+70°C
• Electrical durability (with load): 10 000operations
• Mechanical durability (at no load): 30 000 000operations
• GTIN code: 4045454550370
• ETIM code: EC001437
• Customs Tariff Number: 85364900990
• eClass code: 27-37-16-01
• Order code / Manufacturer SKU: 788-313
• Manufacturer product status: Commercialized
• Equivalent to: 788313
• EAN code: 4045454550370
• Compliant with standard(s): Safety and protection|Safety information -- A separator plate must be used for voltages greater than 250V between adjacent relay modules|and for compliance with the reinforced insulation requirements.|EN 61010-2-201|EN 61373|EN 61810-1|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Vol.1 Sec.6|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (7(a))
• Location of origin: Germany
• Degree of pollution: 3
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Plug-in relay assembly - WAGO

Basic relay

• WAGO Basic Relay: 788-160

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4045454550370
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 20 (1) pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7|80-05-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)
• SCIP notification number (Bulgaria): 73d5cb2e-d36a-4445-9941-623ea07679bc
• SCIP notification number (Czech Republic): 4f74200c-b4fd-4a10-be4f-76bc8b610bf8

Environmental requirements

• Ambient temperature (operation at U_N): -40 … +70 °C
• Ambient temperature (storage): -40 … +70 °C
• Ambient temperature UL (operation at U_N): -40 … +50 °C
• Processing temperature: -25 … +50 °C
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.66MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 45.6g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: Reinforced insulation between coil and contacts|To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
• Safety Information: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.

Physical data

• Depth from upper-edge of DIN-rail: 54 mm / 2.126 inches
• Height: 86 mm / 3.386 inches
• Width: 15 mm / 0.591 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 5 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min): 2.5 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Pollution degree: 3
• Protection type: IP20
• Rated impulse withstand voltage: 4kV
• Rated voltage: 250V
• Safety Information: A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61810-1|EN 61373|UL 508

Technical data

• Control circuit - Input voltage range: ±10 %
• Control circuit - Nominal input current at U_N: 11 mA
• Control circuit - Nominal input voltage U_N: 48 VDC
• Load circuit - Bounce time (typ.): 10ms
• Load circuit - Contact material (relay): AgNi 90/10
• Load circuit - Drop-out time (typ.): 13ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 10 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 15 A / 4 s
• Load circuit - Limiting continuous current: 8 A
• Load circuit - Mechanical life: 30 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 2
• Load circuit - Pull-in time (typ.): 8ms
• Load circuit - Recommended minimum load: 12 V / 10 mA
• Load circuit - Switching capacity: AC-15: 3 A / 250 VAC; DC-13: 2 A / 24 VDC
• Load circuit - Switching frequency with/without load (max.): 6 min^-1 / 1200 min^-1
• Load circuit - Switching power (resistive) max.: AC 2000 VA; DC (see load limit curve)
• Load circuit - Switching Voltage, Max.: 250 VAC
• Signaling - Status indicator: Red LED
