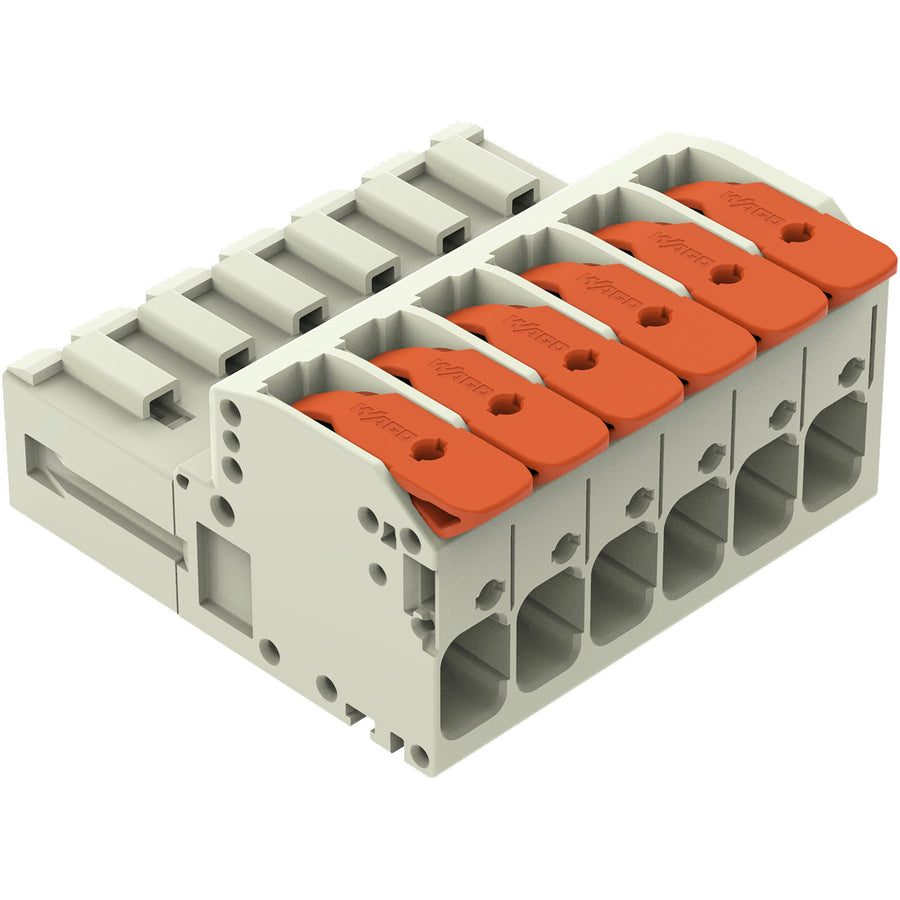

WAGO - 831-1206

WAGO component - equivalent to 8311206

Specifications

• Primary brand: WAGO
• GTIN code: 4055143986991
• Order code / Manufacturer SKU: 831-1206
• Manufacturer product status: Commercialized
• Equivalent to: 8311206
• EAN code: 4055143986991
• Manufacturer description: 1-conductor male connector; lever; Push-in CAGE CLAMP; 10mm2; Pin spacing 7.62mm; 6-pole; 100% protected against mismating; 10mm2; light gray
• Location of origin: Germany
• Manufacturer product specifications: Notes - Safety Information -- The MCS - MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended; these connectors must not be connected/disconnected when live or under load.When used as intended; these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins; which can be touched; are not live when unmated.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 800V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 8kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 8kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 8kV|Electrical data - Ratings per IEC/EN - Rated current -- 41A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 37A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 5A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group C) -- 35A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 5A|Connection data - Clamping units -- 6|Connection data - Total number of potentials -- 6|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Lever|Connection data - Connection 1 - Solid conductor -- 0.5...10mm2 / 20...8 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.5...10mm2 / 20...8 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.5...6mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.5...6mm2|Connection data - Connection 1 - Strip length -- 11...13mm / 0.43...0.51"|Connection data - Connection 1 - Pole number -- 6|Connection data - Connection 1 - Conductor entry direction to mating direction -- 0°|Physical data - Pin spacing -- 7.62mm / 0.3"|Physical data - Width -- 48.6mm / 1.9"|Physical data - Height -- 25mm / 0.984"|Physical data - Depth -- 49.2mm / 1.937"|Mechanical data - Variable coding -- Yes|Mechanical data - Anti-rotation protection -- Yes|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for conductor|Plug-in connection - Mismating protection -- Yes|Plug-in connection - Plugging without loss of pin spacing -- No|Plug-in connection - Locking of plug-in connection -- none|Material data - Color -- light gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.757MJ|Material data - Actuator color -- orange|Material data - Weight -- 37.8g|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Processing temperature -- -35...+60°C|Commercial data - ETIM 9.0 -- EC001284|Commercial data - ETIM 8.0 -- EC001284|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 24 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4055143986991|Commercial data - Customs tariff number -- 85366930000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: DE
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4055143986991
• Packaging type: box
• PU (SPU): 24 pcs

Connection data

• Clamping units: 6
• Connection 1 - Actuation type: Lever
• Connection 1 - Conductor entry direction to mating direction: 0°
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.5 … 6 mm²
• Connection 1 - Pole number: 6
• Connection 1 - Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Connection 1 - Strip length: 11 … 13 mm / 0.43 … 0.51 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 6

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group C): 35A
• Ratings per CSA - Rated current CSA (Use Group D): 5A
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per CSA - Rated voltage CSA (Use Group D): 600V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 41A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 8kV
• Ratings per IEC/EN - Rated voltage (III/2): 1000V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group C): 37A
• Ratings per UL - Rated current UL (Use Group D): 5A
• Ratings per UL - Rated voltage UL (Use Group C): 600V
• Ratings per UL - Rated voltage UL (Use Group D): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +105 °C
• Processing temperature: -35 … +60 °C

Material data

• Actuator color: orange
• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: light gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.757MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 37.8g

Mechanical data

• Anti-rotation protection: Yes
• Variable coding: Yes

Notes

• Safety Information: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other colors|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Physical data

• Depth: 49.2 mm / 1.937 inches
• Height: 25 mm / 0.984 inches
• Pin spacing: 7.62 mm / 0.3 inches
• Width: 48.6 mm / 1.9 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Male connector/plug
• Locking of plug-in connection: none
• Mismating protection: Yes
• Plugging without loss of pin spacing: No
