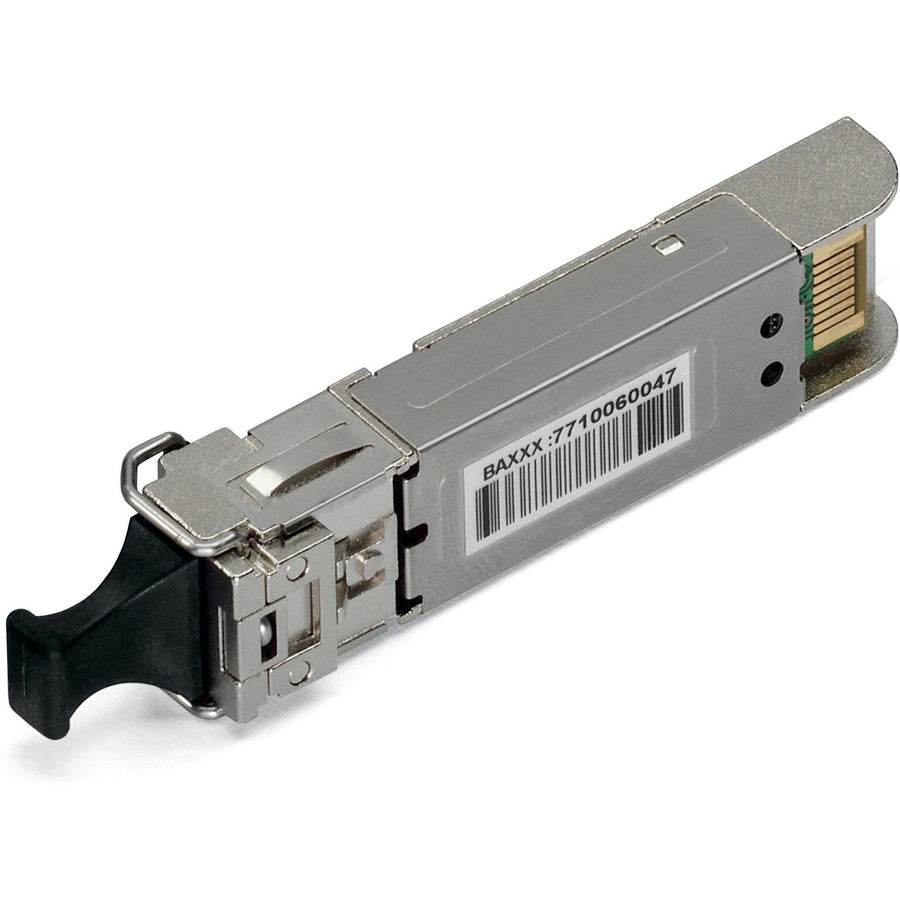

Wago - 852-1210

WAGO

WAGO - 852-1210

Part number: 60284944

$165.20

Ships in manufacturer lead time. Contact us for an ETA.

60284944

Request a quote

WAGO datasheet (PDF) View on wago.com PDF is served by WAGO's official datasheet service (wago.priintcloud.com).

Need help selecting this part? Contact an applications specialist →

Small form-factor pluggable (SFP) package transceiver with diagnostic monitoring support + 9/125μm (single-mode fiber) - WAGO (852 series) - SFP Module 1000BASE; LX Single-Mode 1310 nm LC; 10km; EXT; DDM - rated for -40°C...+85°C ambient - equivalent to 8521210

Specifications

  • Primary brand: WAGO
  • Functions: Small form-factor pluggable (SFP) package transceiver
  • Design: diagnostic monitoring support|9/125μm (single-mode fiber)
  • Wavelength: 1310nm
  • Dimensions: H13.3mm x W13.4mm x D56.6mm
  • Ambient air temperature for operation: -40°C...+85°C
  • Ambient air temperature for storage: -40°C...+85°C
  • ETIM code: EC000309
  • GTIN code: 4055143394185
  • eClass code: 19-17-01-30
  • Customs Tariff Number: 85176200000
  • Order code / Manufacturer SKU: 852-1210
  • Manufacturer product status: Commercialized
  • Equivalent to: 8521210
  • EAN code: 4055143394185
  • Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-SFP852|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
  • Location of origin: Taiwan
  • Level 1 category: Automation components
  • Level 2 category: Communication infrastructure
  • Level 3 category: Fiber optic transceiver modules
  • Product title: Small form-factor pluggable (SFP) package transceiver - WAGO

Commercial data

  • Country of origin: TW
  • Customs tariff number: 85176200000
  • ECCN: 5A992.C
  • eCl@ss 10.0: 19-17-01-30
  • eCl@ss 9.0: 19-17-01-06
  • ETIM 8.0: EC000309
  • ETIM 9.0: EC000309
  • GTIN: 4055143394185
  • Packaging type: box
  • PU (SPU): 1 pcs

Connection data

  • Connection requirement (permissible cable length): 10,000m
  • Connection requirement (permissible cable type): Single-mode fiber 9/125 µm; Wavelength: 1310 nm
  • Connection technology: communication/fieldbus: 1 x SFP; LC fiber-optic connector

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

  • Ambient temperature (operation): -40 … +85 °C
  • Ambient temperature (storage): -40 … +85 °C

Mechanical data

  • Color: silver-colored
  • Weight: 17g

Physical data

  • Depth: 56.6 mm / 2.228 inches
  • Height: 13.3 mm / 0.524 inches
  • Width: 13.4 mm / 0.528 inches

Technical data

  • Optical fiber type: Single-mode
