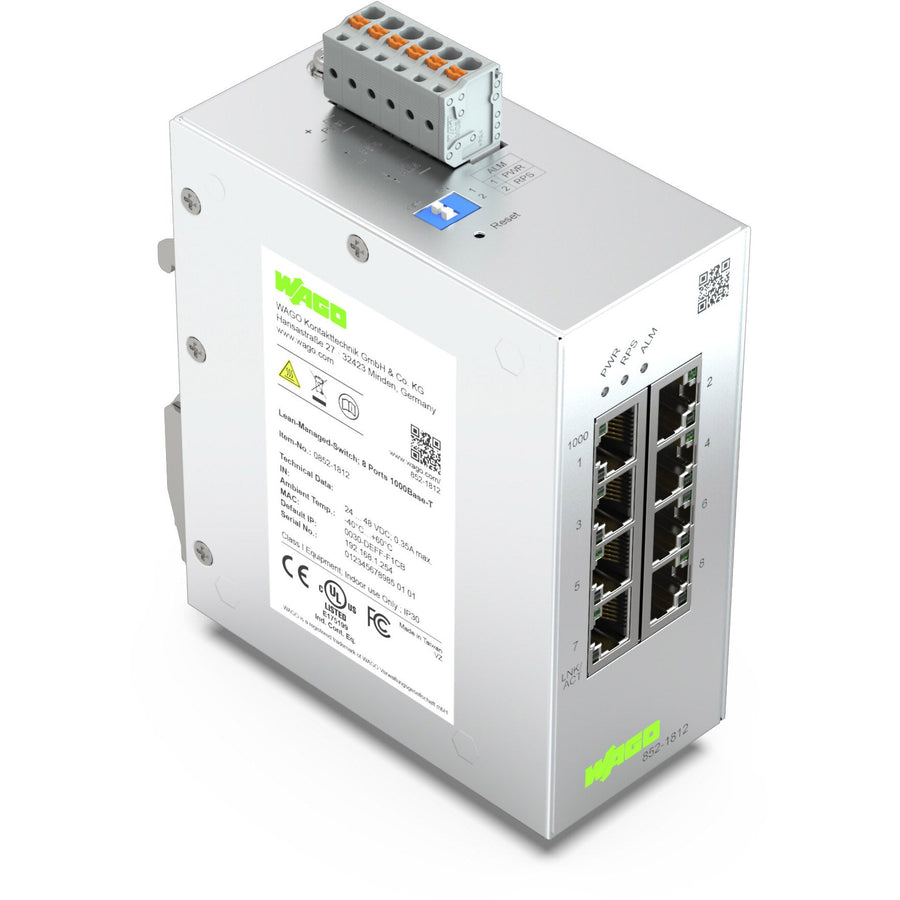

WAGO - 852-1812

8-ports Lean Gigabit (GbE/GigE) managed Ethernet network switch with redundant DC pwr. suppl. - WAGO (852 series) - Lean Managed Switch; 8Port 1000BASE-T - with Ethernet/IP communication capability - supply voltage 24-48Vdc - with 8 x RJ45 ports (1000BASE-T) - DIN-35 rail / wall mounting (50mm width) - IP30 - rated for -40°C...+60°C ambient - equivalent to 8521812

Specifications

• Primary brand: WAGO
• Functions: Lean Gigabit (GbE/GigE) managed Ethernet network switch|Configuration options|- DIP switch for signal contact|- Web-Based Management|- Command Line Interface|- SNMPv1/v2c/v3|IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX/FX|IEEE 802.3ab 1000BASE-T|IEEE 802.3x Flow Control|IEEE 802.1d Spanning Tree Protocol (STP)|IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)|IEEE 802.1Q VLAN Tagging|IEEE 802.1p Prioritization|IEEE 802.1X Port Authentication|IEEE 802.1ab Link Layer Discovery Protocol (LLDP)|IEEE 802.3az Energy Efficient Ethernet|ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)
• Design: redundant DC pwr. suppl.
• Supply voltage (DC): 24-48Vdc
• Connection capacity: 8-ports|can manage up to 8000 connections
• Connection type: 8 x RJ45 ports (1000BASE-T)
• Mounting mode: DIN-35 rail|wall
• Dimensions: H116mm x W50mm x D100mm
• Net Width (mm): 50mm
• Ambient air temperature for operation: -40°C...+60°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Current consumption: 350mA max.
• Power consumption: 10W
• Customs Tariff Number: 85176200000
• ETIM code: EC000734
• GTIN code: 4066966073003
• Order code / Manufacturer SKU: 852-1812
• Manufacturer product status: Commercialized
• Equivalent to: 8521812
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-ISW852|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Taiwan
• Level 1 category: Automation components
• Level 2 category: Communication infrastructure
• Level 3 category: Switches
• Product title: Lean Gigabit (GbE/GigE) managed Ethernet network switch - WAGO

Commercial data

• Country of origin: TW
• Customs tariff number: 85176200000
• ECCN: 5A992.C
• ETIM 8.0: EC000734
• ETIM 9.0: EC000734
• GTIN: 4066966073003
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +60 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Mounting type: DIN-35 rail
• Protection type: IP30
• Relative humidity (without condensation): 95%
• Shock resistance: per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Mechanical data

• Conformity marking: CE
• Weight: 550g

Physical data

• Depth: 100 mm / 3.937 inches
• Height: 116 mm / 4.567 inches
• Width: 50 mm / 1.969 inches

Technical data

• Communication standards: IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX/FX|IEEE 802.3ab 1000BASE-T|IEEE 802.3x Flow Control|IEEE 802.1d Spanning Tree Protocol (STP)|IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)|IEEE 802.1Q VLAN Tagging|IEEE 802.1p Prioritization|IEEE 802.1x Port Authentication|IEEE 802.1ab Link Layer Discovery Protocol (LLDP)|IEEE 802.3az Energy Efficient Ethernet|ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)
• Configuration options: DIP switch for signal contact|Web-Based Management|Command Line Interface|SNMPv1/v2c/v3
• Current consumption (max.): 350mA
• Diagnostics: Signal contact; Modbus TCP; port status; port statistics; port load; traffic monitor; syslog; SNMP traps; loop detection; diagnostics dashboard; topology map
• ESD (contact/air discharge): 8 KV / 15 KV
• Jumbo frame size: 10000.Byte
• MAC table (size): 8000 addresses
• Number of 1 Gb/s ports: 8
• Power consumption (max.): 10W
• Redundancy function: Redundant DC power supply; STP; RSTP; ERPSv1/v2 (max. 2 rings per switch, max. 16 switches per ring, switching time < 800 ms)
• Safety: Access-control list with max. 32 entries; port security; IEEE 802.1X authentication
• Supply voltage: 24 … 48 VDC; (±15 %); 24 … 48 VDC (UL)
• Switching mode: Store-and-forward; non-blocking
• Transmission rate: Copper cable: 10/1000 Mbit/s
• VLAN: Port-based and tag-based (max. 5 VLANs)
