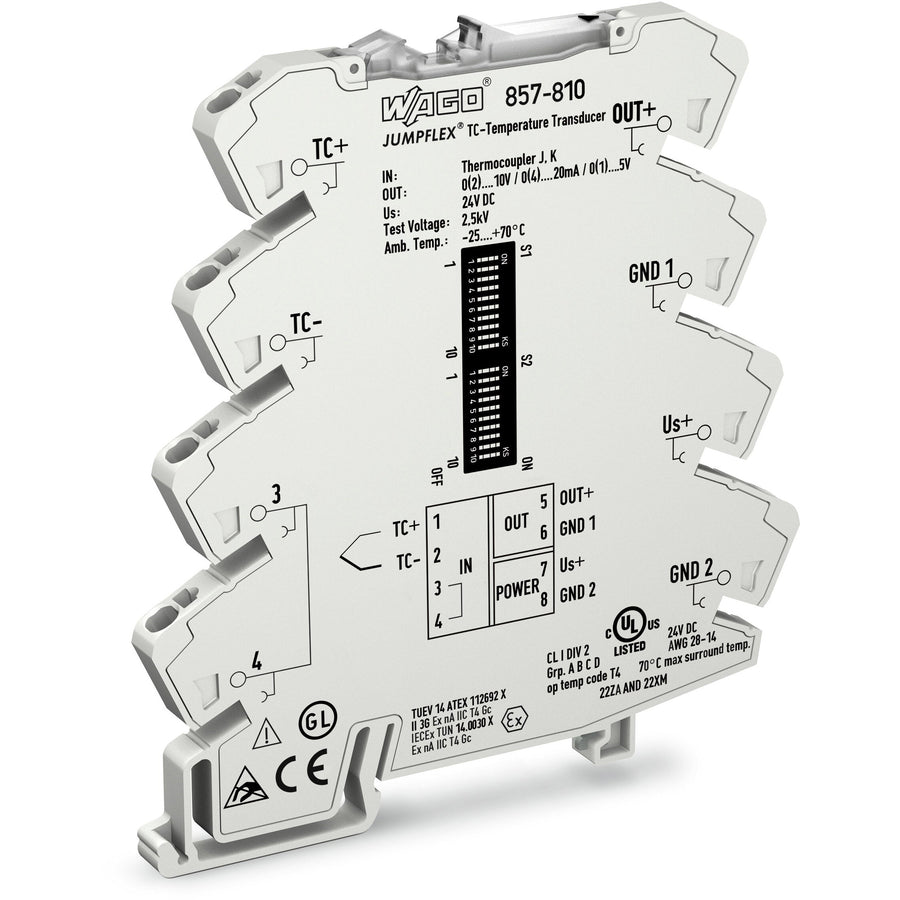

WAGO - 857-810

Temperature signal conditioner with DIP switch - WAGO (857 series) - with 1 x analog input (Thermocouples types J; K) + 1 x analog output (0-10mA / 2-10mA / 0-20mA / 4-20mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc) - supply voltage 16.8-31.2Vdc (24Vdc nom.) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for -25°C...+70°C ambient - equivalent to 857810

Specifications

• Primary brand: WAGO
• Functions: Temperature signal conditioner
• Design: DIP switch
• Supply voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
• Connection type: Push-in CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Analog inputs: 1 x analog input (Thermocouples types J; K)
• Analog outputs: 1 x analog output (0-10mA / 2-10mA / 0-20mA / 4-20mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
• Dimensions: H94mm x W6mm x D97.8mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Current consumption: 40mA (24Vdc; at nominal load)
• GTIN code: 4045454470135
• Customs Tariff Number: 85437090300
• eClass code: 27-21-01-29
• ETIM code: EC002919
• Order code / Manufacturer SKU: 857-810
• Manufacturer product status: Commercialized
• Equivalent to: 857810
• EAN code: 4045454470135
• Compliant with standard(s): CE|DNV|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 40179_B0|- DNV - DNV Germany GmbH - DNV-CG-0339 / Aug.2021 - certificate TAA00001D1|Approvals for hazardous areas|- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000210 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - certificate IECEX TUN14.0030X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX004X|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Temperature signal conditioner - DIP switch - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85437090300
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-21-01-29
• eCl@ss 9.0: 27-20-02-06
• ETIM 8.0: EC002919
• ETIM 9.0: EC002919
• GTIN: 4045454470135
• Packaging type: bag
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 694a8dfe-c43e-47d6-ad52-996c633f9655
• SCIP notification number (Belgium): 296545de-031d-4d5e-a5a5-dfddc192cdf7
• SCIP notification number (Bulgaria): c1b7b523-92f8-47da-850c-8c4c882c490d
• SCIP notification number (Czech Republic): e269576b-40b6-4b8e-a730-b20f6c4642ba
• SCIP notification number (Denmark): adf6ed2d-abff-4125-bf6c-c121e8fca395
• SCIP notification number (Finland): 5021c540-639b-4fdb-88aa-4c5ba154c53e
• SCIP notification number (France): ca2c2545-875b-4634-b7a2-589c69c41520
• SCIP notification number (Germany): ba87344e-9f0c-4f92-8d9b-a3c90deeb4cc
• SCIP notification number (Hungary): 62c2d5b3-a430-476c-810d-c2bfb1e4d555
• SCIP notification number (Italy): 7dccf9c7-af48-427e-8cf4-62ec1cfc9737
• SCIP notification number (Netherlands): 9d300dab-2d6b-4501-8a24-bc26ad68f589
• SCIP notification number (Poland): 0dd42d60-44a1-435a-b52e-47b29f5d6be4
• SCIP notification number (Romania): 64b5849a-efc7-4fa8-9d9c-d6e400e9cc32
• SCIP notification number (Sweden): be28f513-6c89-4361-b6f3-1dba6122eca2

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 2000m
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Color: light gray
• Fire load: 0.365MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 35.5g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Protection type: IP20
• Test voltage - Test voltage (input/output/supply): 2.5 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-4
• EMC immunity to interference: EN 61000-6-2
• Standards/specifications: DNV|DNV

Technical data

• Configuration - Configuration options: DIP switch
• Input - Input signal type: TC sensors
• Input (TC sensors) - Cold junction compensation: On/Off (Default: On)
• Input (TC sensors) - Cold junction error: 3 K (typ. 2 K )
• Input (TC sensors) - Measurement span (TC) min.: 100K
• Input (TC sensors) - Sensor types (TC): Type J|Type K
• Input (TC sensors) - Temperature measurement range (TC): -200 … 1200 °C (Type J)|-200 … 1350 °C (Type K)
• Measurement error - Temperature coefficient: ≤ 0.04 %/K
• Measurement error - Transmission error (typ.): ≤ 0.1% at max. measurement span (type J, K)
• Measurement error - Transmission error for the set measurement range: ≤ (150 K/set measurement range [K]) %
• Output (analog) - Load impedance (current output): ≤ 600 Ω
• Output (analog) - Load impedance (voltage output): ≥ 2 kΩ
• Output (analog) - Output signal (current): 0 … 10 mA|2 … 10 mA|0 … 20 mA|4 … 20 mA
• Output (analog) - Output signal (voltage): 0 … 5 V|1 … 5 V|0 … 10 V|2 … 10 V
• Output (analog) - Output signal type: Current|Voltage
• Power supply - Current consumption at nominal supply voltage: ≤ 40 mA
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Power supply type: 24 VDC
• Power supply - Supply voltage range: ±30 %
• Signal processing - Step response (typ.): 60 ms (cold junction compensation Off)|120 ms (cold junction compensation On)
