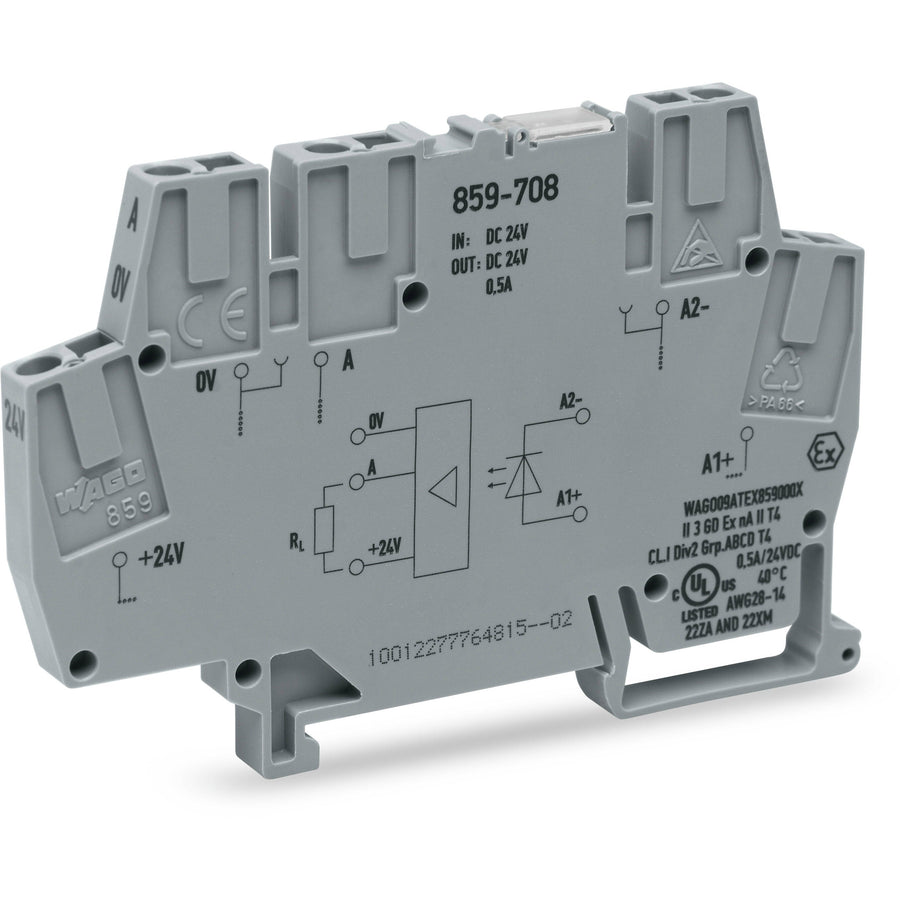

Wago - 859-708

WAGO

WAGO - 859-708

Part number: 60335614

$50.14

Ships in manufacturer lead time. Contact us for an ETA.

60335614

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

Fixed-type solid-state / static relay (SSR) with red LED - 3-wire connection - low-side switching - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 19-30Vdc (24Vdc nom.) - Rated voltage 14Vdc-30Vdc (24Vdc nom.) output - Rated current 1A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859708

Specifications

  • Primary brand: WAGO
  • Functions: Fixed-type solid-state / static relay (SSR)
  • Design: red LED|3-wire connection|low-side switching
  • Poles: single-pole / single-phase / 1-pole (1P)
  • Frequency: 15kHz switching frequency
  • Temperature: Processing temperature -25°C...+50°C
  • Rated current: 1A (continuous)
  • Rated Voltage (DC): 14Vdc-30Vdc (24Vdc nom.) output
  • Connection type: CAGE CLAMP connections
  • Control Voltage (DC): 19-30Vdc (24Vdc nom.)
  • Mounting mode: DIN-35 rail
  • Response time: (switching ON) 7μs / 0.000007s|(switching OFF) 14μs / 0.000014s
  • Dimensions: H91mm x W6mm x D56mm|6mm width
  • Material: Polyamide (PA) 66
  • Ambient air temperature for operation: -40°C...+40°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Humidity: 5-95% relative humidity (RH; non-condensing)
  • eClass code: 27-26-15-03
  • Customs Tariff Number: 85365005000
  • ETIM code: EC001504
  • GTIN code: 4055143604727
  • Order code / Manufacturer SKU: 859-708
  • Manufacturer product status: Commercialized
  • Equivalent to: 859708
  • EAN code: 4055143604727
  • Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Approvals for hazardous areas|- CCC - CNEX - CNCA-C23-01 - certificate 2021312304000982 (Ex ec IIC T4 Gc)|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX007X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant with exemption (7(a) / 7(c)-I)|material group I|V-0 flammability rating
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Automation components
  • Level 2 category: Control components
  • Level 3 category: Control relays
  • Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85365005000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-26-15-03
  • eCl@ss 9.0: 27-26-15-03
  • ETIM 8.0: EC001504
  • ETIM 9.0: EC001504
  • GTIN: 4055143604727
  • Packaging type: Box
  • Product Group: 6 (INTERFACE ELECTRONIC)
  • PU (SPU): 1 pcs

Connection data

  • Connection technology: CAGE CLAMP®
  • Fine-stranded conductor: 0.14 … 2.5 mm² / 26 … 14 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.14 … 1.5 mm² / 26 … 16 AWG
  • Solid conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
  • Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

  • CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8|79-94-7
  • REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 7(a)|7(c)-I
  • SCIP notification number (Austria): f5d8c893-72b4-47d3-bfb8-25286d16375d
  • SCIP notification number (Belgium): e466a4e7-a5db-4a87-9eed-29db5f29edb6
  • SCIP notification number (Bulgaria): df74fea2-cd3a-4d23-abaf-f1eb6fb122b7
  • SCIP notification number (Czech Republic): 0813c877-68d9-44eb-be8d-9e925d6b3ed2
  • SCIP notification number (Denmark): 9dda3256-8840-4bf0-aab3-24cb655a8970
  • SCIP notification number (Finland): aa125b3b-c76d-43ed-bc70-b9485beb7504
  • SCIP notification number (France): 9fc971a1-b627-43f6-aadd-2e7f56cf1d2e
  • SCIP notification number (Germany): 3ad47a8b-2c64-4e0e-94e0-e2c39a9b12f0
  • SCIP notification number (Hungary): 48a3ceea-d41f-4664-a126-3a7915249ef1
  • SCIP notification number (Italy): de135a20-bffa-4b95-abdd-b7336ffdaa6f
  • SCIP notification number (Netherlands): 36e278be-026c-4782-a24e-aa1a54eaef51
  • SCIP notification number (Poland): 34cff21e-d35f-4780-8f86-150ab828bb92
  • SCIP notification number (Romania): 17950ad7-e814-4615-98c6-c7158a2aa5a6
  • SCIP notification number (Sweden): 2e5d9a36-de77-4c49-be5e-35148f1c8202

Environmental requirements

  • Ambient temperature (operation at UN): -40 … +70 °C
  • Ambient temperature (storage): -40 … +85 °C
  • Ambient temperature UL (operation at UN): -40 … +40 °C
  • Operating altitude (max.): 2000m
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 95 % (no condensation permissible)
  • Temperature range of connection cable: ≥ (Tambient + 20 K)

Material data

Mechanical data

  • Mounting position: horizontal (standing/lying); vertical
  • Mounting type: DIN-35 rail

Notes

  • Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

  • Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
  • Height: 91 mm / 3.583 inches
  • Width: 6 mm / 0.236 inches

Safety and protection

  • Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
  • Insulation type (adjacent devices): Reinforced insulation (safe isolation)
  • Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
  • Insulation type (control/load circuit): Basic insulation
  • Insulation type (to adjacent devices of different types): Basic insulation
  • Overvoltage category: II
  • Pollution degree: 2
  • Protection type: IP20; in connected state or when using 859-525 end plate
  • Rated voltage: 300V

Standards and specifications

  • Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|EN 61373|UL 508

Technical data

  • Control circuit - Input current range: 5.5 … 10.7 mA
  • Control circuit - Input voltage range: 22 … 30 VDC
  • Control circuit - Input voltage range (high level): 22 … 30 VDC
  • Control circuit - Input voltage range (low level): 0 … 10 VDC
  • Control circuit - Nominal input current at UN: 9 mA
  • Control circuit - Nominal input voltage UN: 24 VDC
  • Load circuit - Circuit type: 3-wire connection|Low-side switching
  • Load circuit - Drop-out time (t90-10): 3µs
  • Load circuit - Leakage current at rated voltage: ≤ 5 µA
  • Load circuit - Limiting continuous current: 1 A
  • Load circuit - Nominal output voltage: 24 VDC
  • Load circuit - Output voltage range: 15 … 30 VDC
  • Load circuit - Peak output current: 4A
  • Load circuit - Rise time (t10-90): 3µs
  • Load circuit - Switching frequency: ≤ 15 kHz
  • Load circuit - Turn-off time: ≤ 14 µs
  • Load circuit - Turn-on time: ≤ 7 µs
  • Load circuit - Voltage drop: ≤ 1.4 VDC
  • Signaling - Status indicator: Red LED
