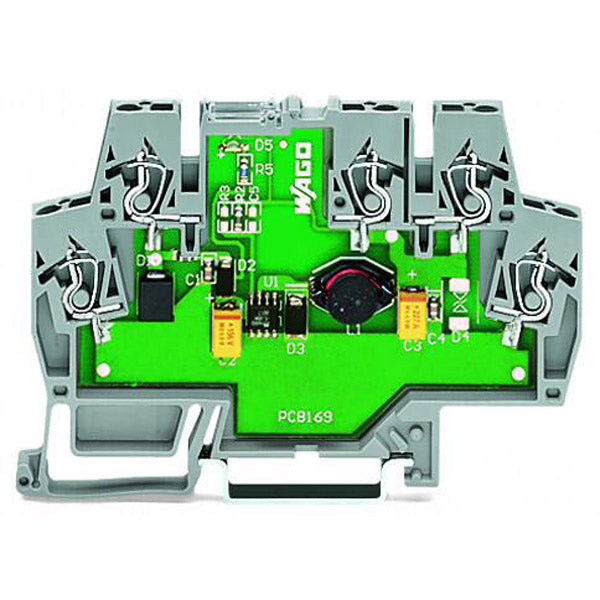

DC-to-DC power supply unit (PSU) / converter module - WAGO (859 series) - 5Vdc / 0.5A / 2.5W output - Input voltage 10-30Vdc (24Vdc nom.) (DC) - with CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for 0°C...+40°C ambient - equivalent to 859801

Specifications

• Primary brand: WAGO
• Functions: DC-to-DC power supply unit (PSU) / converter module
• Supply voltage (DC): 10-30Vdc (24Vdc nom.)
• Display: LED status indication
• Type of network: DC
• Rated current: 0.5A
• Rated power: 2.5W
• Output voltage (DC): 5Vdc|4.9-5.1Vdc
• Hold time: 1ms
• Connection type: CAGE CLAMP spring connections
• Protection functions: TVS diode|Temporary no damage (short circuit of the output for 1 minute)
• Efficiency: 0.7
• Mounting mode: DIN-35 rail
• Dimensions: H91mm x W6mm x D91mm
• Net Width (mm): 6mm
• Ambient air temperature for operation: 0°C...+40°C
• GTIN code: 4050821021568
• ETIM code: EC002540
• eClass code: 27-04-07-01
• Customs Tariff Number: 85044083900
• Order code / Manufacturer SKU: 859-801
• Manufacturer product status: Commercialized
• Equivalent to: 859801
• EAN code: 4050821021568
• Compliant with standard(s): CE|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- CCC - CNEX - CNCA-C23-01 - certificate 2021312304000982 (Ex ec IIC T4 Gc)|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX007X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant
• Location of origin: United States of America
• Degree of pollution: 2
• Ripple: 150mVpp (output voltage)
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: DC-to-DC power supply unit (PSU) / converter module - WAGO

Commercial data

• Country of origin: US
• Customs tariff number: 85044083900
• ECCN: EAR99
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4050821021568
• Packaging type: box
• PU (SPU): 10 (1) pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Number of jumper slots: 2
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector: WAGO 859 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): 0 … +40 °C

Material data

• Color: gray
• Fire load: 0.48MJ
• Weight: 20g

Mechanical data

• Housing design: Rail-mount terminal block
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Reverse voltage protection: yes
• Series operation: No

Standards and specifications

• Conformity marking: CE

Technical data

• Circuit protection - Internal fuse: TVS diode
• Efficiency/power losses - Efficiency (typ.): 70 %
• Input - Input voltage range: 10 … 30 VDC
• Input - Mains failure hold-up time: ≥ 1 ms
• Input - Nominal input voltage U_{i nom}: 24 VDC
• Input - Nominal mains frequency range: 0 Hz
• Output - Nominal output current I_{o nom}: 0.5 A (Single, 10 mm spacing); 0.4 A (in a row)
• Output - Nominal output voltage U_{o nom}: 5 VDC
• Output - Output voltage range: ±2 %
• Output - Overload behavior: Temporary no damage (short circuit of the output for 1 minute)
• Output - Residual ripple: ≤ 150 mV
• Output - Switching frequency: 20 kHz (nominal)
• Signaling and communication - Signaling: 1 x LED
