WAGO - 862-1632

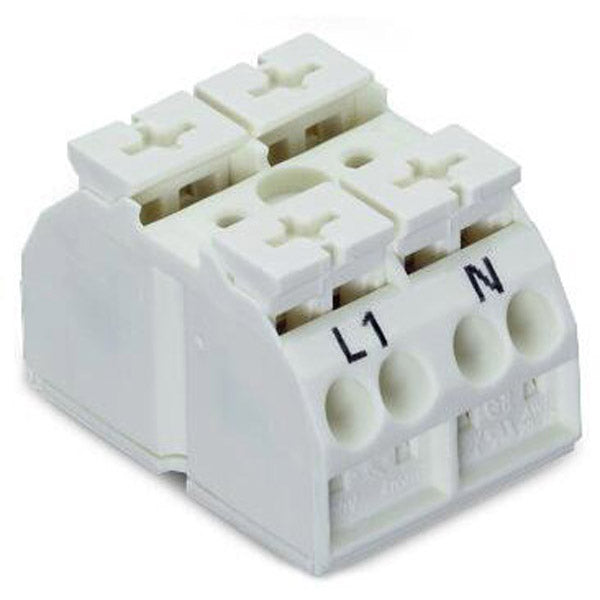

Feed-through/thru + neutral-through chassis-mount terminal strip with 1-deck/level + btn. on both sides + 1 snap-in foot per pole - with "L1-N" marking - WAGO (862 series) - White - 1 feed-through pole + neutral-through (1P+N) / 8-wires (4 push-in + 4 push-in) (4+4) - for 0.5mm2...4mm2 / for #20AWG...#12AWG - Rated current 32A - with Push-in CAGE CLAMP spring connections - Mounts on DIN rail or surface via accessory snap-in foot mounting - equivalent to 8621632

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru + neutral-through chassis-mount terminal strip
• Design: 1-deck/level|btn. on both sides|1 snap-in foot per pole
• Poles: 1 feed-through pole + neutral-through (1P+N)
• Rated current: (IEC) 32A
• Color: White
• Connection capacity: 8-wires (4 push-in + 4 push-in) (4+4)
• Rated operating voltage (Ue): (IEC) 500V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...4mm2 fine stranded or solid conductors|for 0.5mm2...1.5mm2 fine stranded conductors with insulated ferrule|for 0.75mm2...1.5mm2 fine stranded conductors with ferrule; push-in termination|for 0.75mm2...4mm2 solid conductors; push-in termination|for #20AWG...#12AWG fine stranded or solid conductors|for #20AWG...#16AWG fine stranded conductors with insulated ferrule|for #18AWG...#16AWG fine stranded conductors with ferrule; push...in termination|for #18AWG...#12AWG solid conductors; push-in termination
• Mounting mode: Mounts on DIN rail or surface via accessory snap-in foot
• Dimensions: H22.3mm x W24mm x D35mm
• Material: Polyamide (PA) 66|Halogen-free materials
• GTIN code: 4044918509718
• eClass code: 27-14-11-06
• Customs Tariff Number: 85369010000
• ETIM code: EC001284
• Order code / Manufacturer SKU: 862-1632
• Manufacturer product status: Commercialized
• Equivalent to: 8621632
• EAN code: 4044918509718
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 6912|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2146425.01|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003009925|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1505030|- ENEC 15 - UL International Germany GmbH - EN 60998 - certificate 143856-01|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Marking: "L1-N"
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru + neutral-through chassis-mount terminal strip - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4044918509718
• Packaging type: bag
• Product Group: 9 (Std Chassis Mt Blocks)
• PU (SPU): 500 pcs

Connection data

• Clamping units: 8
• Connection 1 - Actuation type: Push-button
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 0.75 … 1.5 mm² / 18 … 16 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.5 … 1.5 mm² / 20 … 16 AWG
• Connection 1 - Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Connection 1 - Pole number: 2
• Connection 1 - Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Connection 1 - Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Strip length: 10 … 11 mm / 0.39 … 0.43 inches
• Connection 1 - Wiring direction: Side-entry wiring
• PE function: without PE contact
• Total number of potentials: 2

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: white
• Fire load: 0.266MJ
• Flammability class per UL94: V0
• Halogen-free: Yes
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 14.2g

Mechanical data

• Marking: L1-N
• Mounting type: Snap-in foot

Physical data

• Depth: 35 mm / 1.378 inches
• Height from the surface: 22.3 mm / 0.878 inches
• Pin spacing: 12 mm / 0.472 inches
• Width: 24 mm / 0.945 inches
