WAGO - 869-102

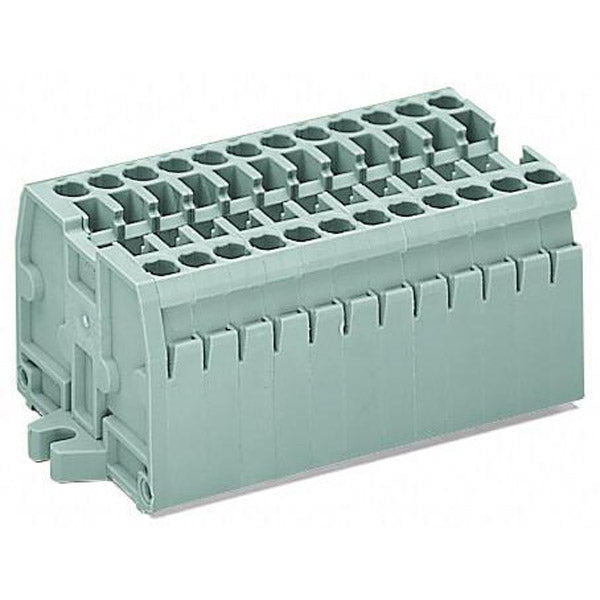

Feed-through/thru terminal strip with 1-deck/level + M3 fixing flanges - WAGO (869 series) - Gray - 2 feed-through poles (2P) / 4-wires (2 clamps + 2 clamps) (2+2) - for 0.08mm2...4mm2 / for #28AWG...#12AWG - Rated current 24A - with CAGE CLAMP spring connections - 3.2mm fixing hole mounting - equivalent to 869102

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal strip
• Design: 1-deck/level|M3 fixing flanges
• Poles: 2 feed-through poles (2P)
• Rated current: (IEC) 24A|(UL) 20A
• Color: Gray
• Connection capacity: 4-wires (2 clamps + 2 clamps) (2+2)
• Rated operating voltage (Ue): (IEC) 500V|(UL) 300V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...4mm2 fine stranded conductors|for 0.08mm2...2.5mm2 solid conductors|for 0.08mm2...1.5mm2 fine stranded conductors with insulated ferrule|for #28AWG...#12AWG fine stranded or solid conductors|for #28AWG...#14AWG fine stranded conductors with insulated ferrule
• Mounting mode: 3.2mm fixing hole
• Dimensions: H27.6mm x W24.5mm x D33.4mm
• Material: Polyamide (PA) 66|Halogen-free materials
• ETIM code: EC001284
• eClass code: 27-14-11-06
• GTIN code: 4044918480550
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 869-102
• Manufacturer product status: Commercialized
• Equivalent to: 869102
• EAN code: 4044918480550
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 6827/A1|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2143311.02|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal strip - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4044918480550
• Packaging type: box
• PU (SPU): 100 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 14 AWG
• Connection 1 - Pole number: 2
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 6 … 7 mm / 0.24 … 0.28 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.201MJ
• Flammability class per UL94: V0
• Halogen-free: Yes
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 10g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: Mounting flange M3

Notes

• Safety Information: Max. insulation diameter: 4.4 mm

Physical data

• Depth: 33.4 mm / 1.315 inches
• Height from the surface: 27.6 mm / 1.087 inches
• Module width: 5 mm / 0.197 inches
• Width: 24.5 mm / 0.965 inches
