Wago - 870-405

WAGO

WAGO - 870-405

Part number: 870-405

$1.80

Ships in manufacturer lead time. Contact us for an ETA.

870-405

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

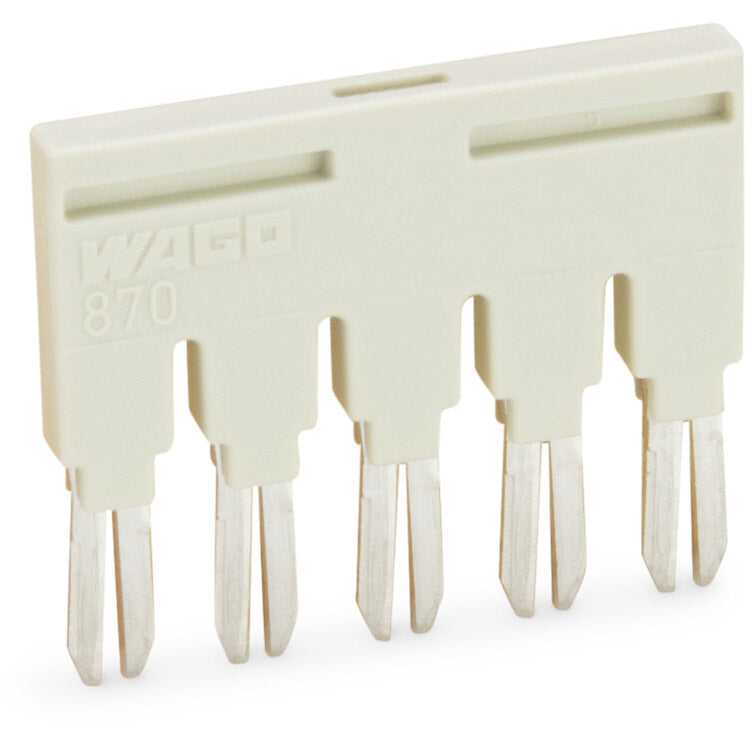

Insulated push-in type comb-style jumper bar - 5-way - WAGO (870 X-COM series) - 5-poles (5P) - Rated current 18A - Light Gray color - Dimensions W24mm x D2.5mm - equivalent to 870405

Specifications

  • Primary brand: WAGO
  • Functions: Insulated push-in type comb-style jumper bar
  • Design: 5-way
  • Poles: 5-poles (5P)
  • Rated current: 18A
  • Color: Light Gray
  • Dimensions: W24mm x D2.5mm
  • Customs Tariff Number: 85366990990
  • ETIM code: EC000489
  • GTIN code: 4066966271737
  • eClass code: 27-14-11-40
  • Order code / Manufacturer SKU: 870-405
  • Manufacturer product status: Commercialized
  • Equivalent to: 870405
  • EAN code: 4044918508162
  • Compliant with standard(s): RoHS compliant
  • Location of origin: Germany
  • Level 1 category: Electrical components
  • Product title: Insulated push-in type comb-style jumper bar - WAGO (X-COM series)

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85366990990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-40
  • eCl@ss 9.0: 27-14-11-40
  • ETIM 8.0: EC000489
  • ETIM 9.0: EC000489
  • GTIN: 4066966271737
  • Packaging type: Bag
  • Product Group: 16 (Rail Mounted Terminal Blocks with CCC)
  • PU (SPU): 25 (25) pcs

Electrical data

  • Ex information - Rated current (Ex e II): 13.5A
  • Ratings per IEC/EN - Rated current: 18A

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Material data

Physical data

  • Height: 2.5 mm / 0.098 inches
  • Jumper assignment: 1-2-3-4-5
  • Width: 24 mm / 0.945 inches
