Logic & control

Panasonic FP Series
Programmable Controllers

From the world's smallest class ultra-compact PLC to mid-range controllers with 300 I/O and 6-axis motion — Panasonic FP Series delivers advanced performance in minimal footprints. Programmed with FPWIN GR7 or FPWIN Pro7 on Windows 10/11.

10 ns/step processingUp to 300 I/ODual EthernetBattery-less FeRAMModbus RTU/TCPEtherNet/IP

Build from the control requirement.

Search an exact manufacturer part number, or refine the full list below with the filters.

Refine this collection ↓

PLC Series

Choose from six Panasonic PLC families. Start with a family, then narrow by product type or specifications.

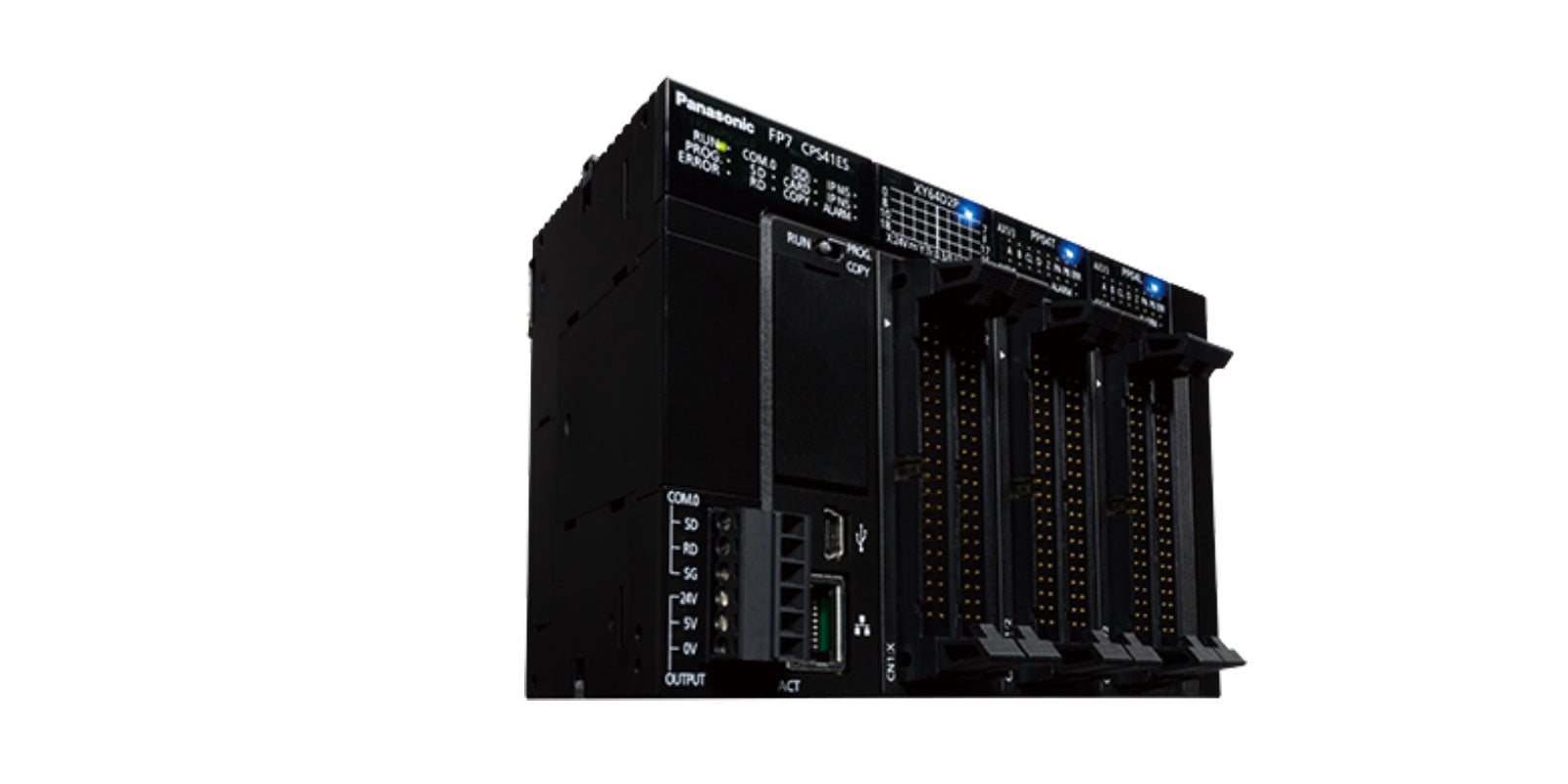

Panasonic FP7 modular programmable controller

FP7Modular controller family

Modular PLC · product-type selection

FP7 Series

Choose the FP7 product type first (CPU, I/O, power supply, communication, motion, positioning or another module type), then compare exact parts.

View FP7 guide Select FP7 parts Request quote

Panasonic FP-X0 compact programmable controller family

FP-X0Compact I/O controller

Compact PLC · I/O selection

FP-X0 Series

Choose digital-input and digital-output counts to narrow the FP-X0 controller parts.

View FP-X0 guide Select FP-X0 parts Request quote

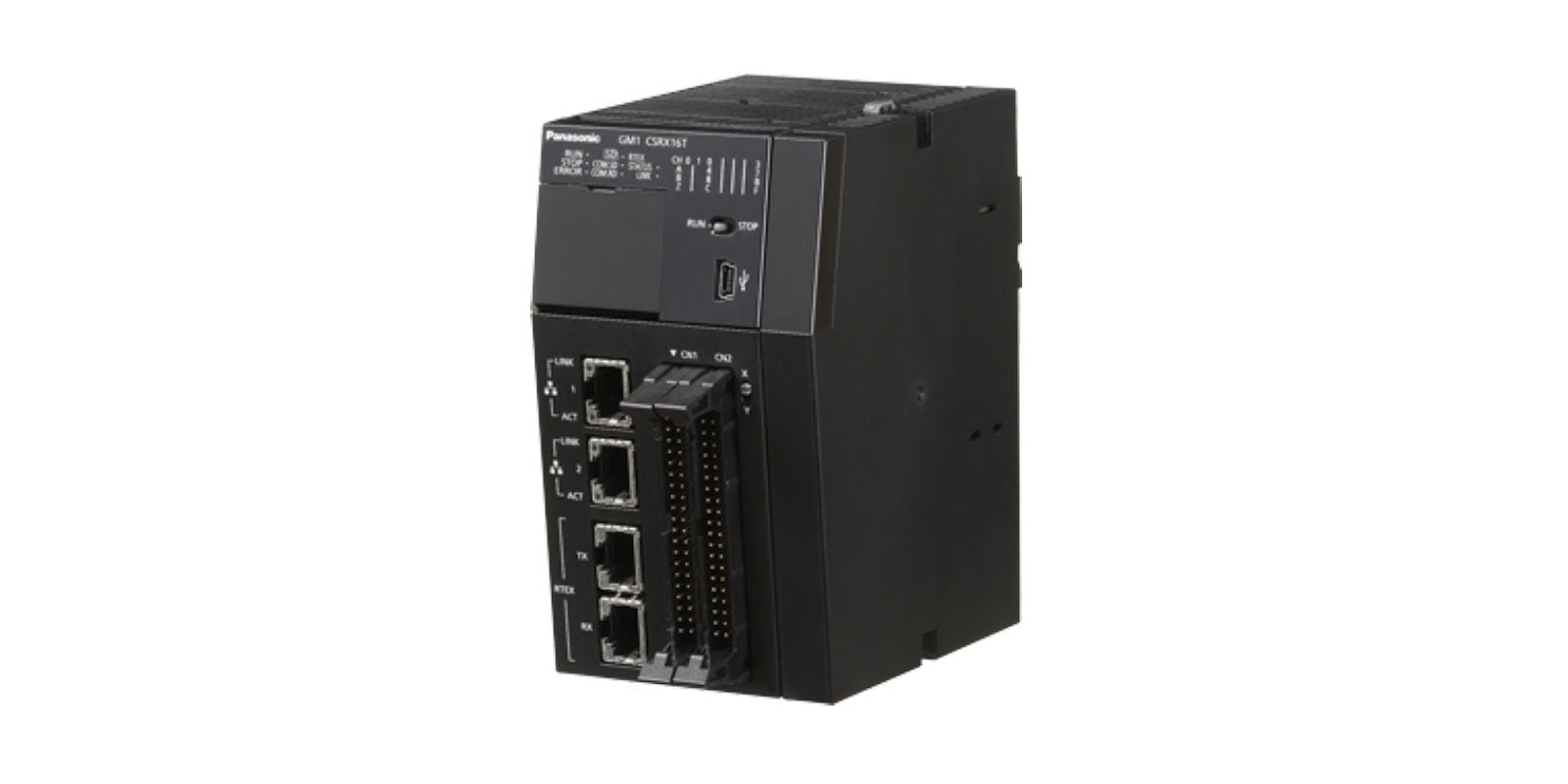

GM1Motion controller

Motion control · technical selection

GM1 Motion Controller

Choose a GM1 controller or expansion module by unit type, I/O counts, and output type, then review the exact Panasonic part number.

View GM1 guide Select GM1 parts Motion controllers

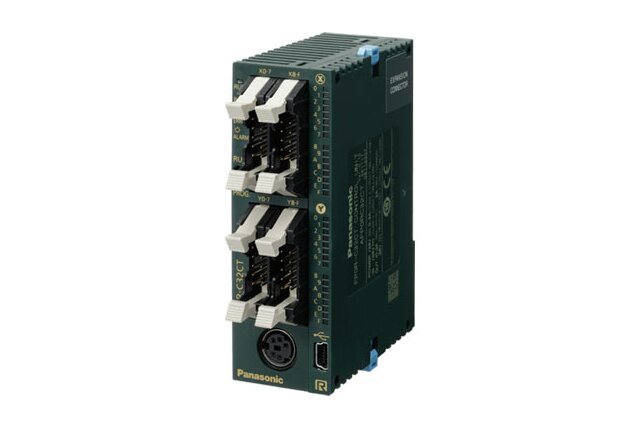

Panasonic FP0R compact programmable controller

FP0RUltra-compact controller

Ultra-compact · smallest class

FP0R Series

The pioneer of ultra-compact PLCs. 25 mm wide, 90 mm tall, expands to 128 I/O with three expansion units. Battery-less FeRAM model eliminates data loss concerns. 80 ns/step processing, 4-axis built-in pulse output, Modbus RTU.

80 ns/step (ST instructions, first 3k steps)
32 k steps program / 32 k words data
10–128 I/O (with 3 expansion units)
4-axis built-in pulse output (50 kHz)
Battery-less FeRAM option (F32 model)
Push-in terminal block variant available

View FP0R guide Select FP0R parts Request quote

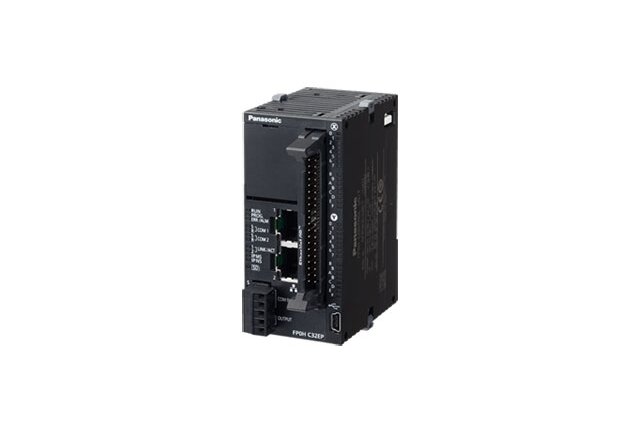

Panasonic FP0H ultra-compact programmable controller

FP0HNetworked compact controller

Ultra-compact · dual Ethernet

FP0H Series

Ultra-compact PLC with dual built-in Ethernet ports — enabling distributed control without a hub via serial wiring. EtherNet/IP, Modbus-TCP, MC protocol. SD card logging, FTP client/server, up to 384 I/O with expansion.

10 ns/step (first 10k steps)
Up to 64 k steps program (Ethernet type)
Dual Ethernet ports (single IP, no hub needed)
EtherNet/IP, Modbus-TCP, MC protocol
SD card slot — logging, project copy
Up to 384 I/O with FP0H/FPΣ/FP0R expansion

View FP0H guide Select FP0H parts Request quote

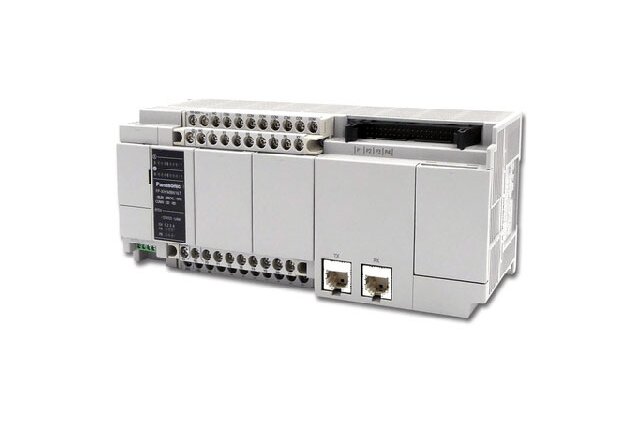

Panasonic FP-XH compact terminal-block programmable controller

FP-XHMid-range controller

Mid-range · up to 300 I/O

FP-XH Series

Mid-range terminal-block PLC with superior instruction throughput and rich motion capability. Up to 300 I/O (382 with FP0R units), 6-axis 100 kHz pulse output, 5 communication channels, Modbus RTU master/slave, PLC link up to 16 units.

0.04 μs/step (ST instruction, first 7k steps)
Up to 40 k steps program (C30/C60)
Up to 300 I/O (382 with FP0R expansion)
6-axis 100 kHz built-in pulse output (C60)
Up to 5 communication channels
PNP output type now available

View FP-XH guide Select FP-XH parts Request quote

Quick Comparison

Use this overview to choose the right controller family before reviewing an exact model.

Specification	FP0R	FP0H	FP-XH
Form factor	Ultra-compact (25 mm W)	Ultra-compact (30.4 mm W)	Compact terminal block
Processing speed	80 ns/step	10 ns/step	0.04 μs/step (ST)
Program capacity	32 k steps	Up to 64 k steps	Up to 40 k steps
Maximum I/O	128 points	384 points	300–382 points
Pulse output	4-axis, 50 kHz	4-axis, 100 kHz	Up to 6-axis, 100 kHz
Ethernet	Via FP7 web server	Dual built-in ports	Via COM5 cassette
EtherNet/IP	—	✓ (Ethernet type)	Via cassette
Modbus RTU	Master & slave	Master & slave	Master & slave
Battery-less option	✓ (F32 FeRAM model)	—	—
SD card slot	—	✓ (Ethernet type)	—
PLC link	Up to 16 units	Via Ethernet	Up to 16 units
Programming tool	FPWIN GR7 / Pro7	FPWIN GR7 / Pro7	FPWIN GR7 / Pro7

Why Panasonic FP Series

Common programming environment

FPWIN GR7 and FPWIN Pro7 work across all FP Series models — reduce training costs and simplify multi-model sites.

Multi-axis motion built in

Up to 6-axis pulse output built into the CPU — no separate motion card needed for most applications.

Distributed control

FP0H's dual Ethernet with serial wiring eliminates hubs. Multiple controllers share data across a line without a central high-performance PLC.

Compact panel footprint

FP0R at 25 mm and FP0H at 30.4 mm wide — even fully expanded systems fit in panels where traditional PLCs won't.

Battery-free operation

FP0R's FeRAM model saves all data automatically — no batteries to replace, no data loss after shutdowns or long idle periods.

Broad industry compatibility

Modbus RTU, EtherNet/IP, MC protocol, CC-Link slave — connects to robots, HMIs, drives, and other PLCs from any vendor.

Need help selecting the right PLC?

Share your I/O count, communications, motion, and panel requirements. US Automation Controls can help identify the right family and exact model without assuming unsupplied specifications.

Contact our PLC specialists

Choose a Panasonic PLC family

Select a family above to see its product types and specification filters.

239 products
