Leuze

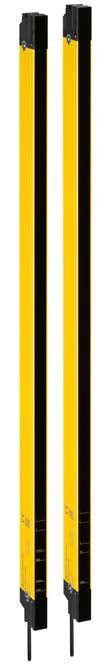

Leuze 68601051 MLC520-S-14-510 Safety sensor set
Part number: 68601051
$3,265.62
/ Default Title
Ships in manufacturer lead time. Contact us for an ETA.
Sold as Default Title: 0 pieces per package · per piece.
Ships by truck freightThis package is heavy or oversized and ships by LTL truck freight instead of parcel. Contact us with delivery questions (liftgate, loading dock, lead time).
Need help selecting this part? Contact an applications specialist →
Type: 4, IEC/EN IEC 61496
SIL: 33, IEC 61508, IEC/EN IEC 62061
Performance Level (PL): e, EN ISO 13849-1
Category: 4, EN ISO 13849
Resolution: 14 mm
Protective field height: 510 mm
Operating range: 0.2 ... 6 m
Response time: 11 ms
Connection: Cable with connector, M12, Plastic, 5 -pin, 160 mm, PUR
Dimensions: 15.4 mm x 510 mm x 32.6 mm
SIL: 33, IEC 61508, IEC/EN IEC 62061
Performance Level (PL): e, EN ISO 13849-1
Category: 4, EN ISO 13849
Resolution: 14 mm
Protective field height: 510 mm
Operating range: 0.2 ... 6 m
Response time: 11 ms
Connection: Cable with connector, M12, Plastic, 5 -pin, 160 mm, PUR
Dimensions: 15.4 mm x 510 mm x 32.6 mm
