Wago - 2009-110

WAGO

WAGO - 2009-110

Part number: 2009-110

$375.90

Ships in manufacturer lead time. Contact us for an ETA.

2009-110

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

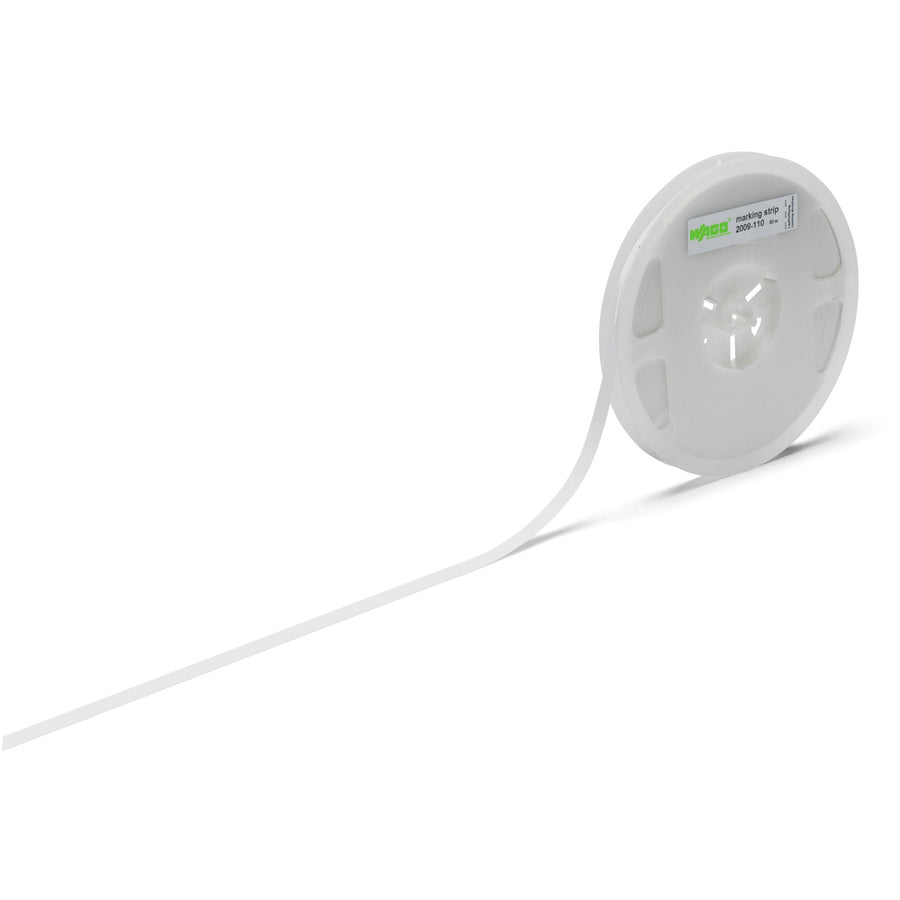

Plain marking strips on reel - WAGO (2009 series) - White color - Snap-on mounting - contains 1 continuous strip (20m long) on a roll - equivalent to 2009110

Specifications

  • Primary brand: WAGO
  • Functions: Plain marking strips on reel
  • Color: White
  • Mounting mode: Snap-on
  • Material: Halogen-free materials
  • Ambient air temperature for operation: -40°C...+150°C
  • Humidity: 40-50% relative humidity (RH)
  • Contents: 1 continuous strip (20m long) on a roll
  • Technical compatibility with: Smart printer
  • ETIM code: EC000761
  • eClass code: 27-14-11-37
  • GTIN code: 4044918102483
  • Customs Tariff Number: 39206219888
  • Order code / Manufacturer SKU: 2009-110
  • Manufacturer product status: Commercialized
  • Equivalent to: 2009110
  • EAN code: 4044918102483
  • Compliant with standard(s): Declarations of conformity and manufacturer's declarations|- Railway - WAGO GmbH & Co. KG - certificate Railway Ready|RoHS compliant
  • Location of origin: Luxembourg
  • Level 1 category: Cabling systems
  • Level 2 category: Labelling
  • Level 3 category: Terminal blocks labelling
  • Product title: Plain marking strips on reel - WAGO

Commercial data

  • Country of origin: LU
  • Customs tariff number: 39206219888
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-37
  • eCl@ss 9.0: 27-14-11-37
  • ETIM 8.0: EC000761
  • ETIM 9.0: EC000761
  • GTIN: 4044918102483
  • Packaging type: bag
  • Product Group: 2 (Terminal Block Accessories)
  • PU (SPU): 1 pcs

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

  • Ambient temperature (operation): -40 … +150 °C
  • Ambient temperature (storage): +10 … +21 °C
  • Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
  • Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
  • Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
  • Environmental Testing (Environmental Conditions) - Frequency: f1 = 5 Hz to f2 = 150 Hz|f1 = 5 Hz to f2 = 150 Hz
  • Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
  • Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
  • Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
  • Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
  • Environmental Testing (Environmental Conditions) - Shock form: Half sine
  • Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
  • Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
  • Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
  • Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
  • Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
  • Environmental Testing (Environmental Conditions) - Test procedure
    Railway applications –
    Rolling stock equipment –
    Shock and vibration tests:     DIN EN 61373 (VDE 0115-0106):2011-04
  • Environmental Testing (Environmental Conditions) - Test specification
    Railway applications –
    Rolling stock –
    Electronic equipment:     DIN EN 50155 (VDE 0115-200):2022-06
  • Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
  • Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
  • Relative humidity: 40 … 50 %

Material data

  • Adhesive information: without adhesive
  • Color: white
  • Fire load: 7.8MJ
  • Halogen-free: Yes
  • UV resistance: EN 60068-2-5:2010 Procedure B
  • Weight: 260g

Mechanical data

  • Mounting type: Snapping on
  • Smear resistance: EN 60998-1:2004

Physical data

  • Strip width: 11mm
  • Width: 11 mm

Technical data

  • Delivery form: Strip
  • Delivery form configuration: 50 m; 1 line
  • Marking: plain
  • Marking method: Thermal transfer
  • Printing device: Smart Printer (Thermal Transfer Printer)
  • Suitable: for WAGO Rail-Mount Terminal Blocks TOPJOB® S, X-COM®S-SYSTEM, X-COM®S-SYSTEM-MINI and 285/788/857/2857 Series
