Wago - 248-578

WAGO

WAGO - 248-578

Part number: 248-578

$7.02

Ships in manufacturer lead time. Contact us for an ETA.

248-578

Request a quote

Datasheet (PDF)

Need help selecting this part? Contact an applications specialist →

WAGO component - equivalent to 248578

Specifications

  • Primary brand: WAGO
  • GTIN code: 4055143695145
  • Order code / Manufacturer SKU: 248-578
  • Manufacturer product status: Commercialized
  • Equivalent to: 248578
  • EAN code: 4055143695145

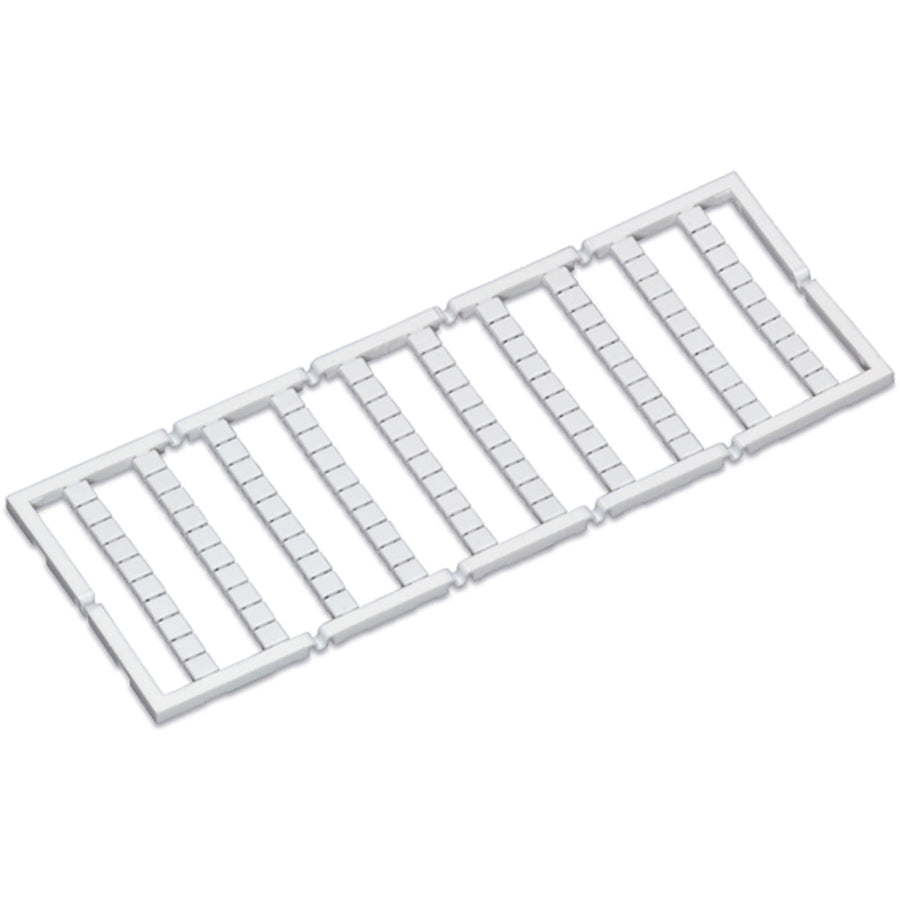

  • Manufacturer description: Mini-WSB marking card; as card; MARKED; PE (100x); not stretchable; Horizontal marking; snap-on type; white
  • Location of origin: Germany
  • Manufacturer product specifications: Technical data - Marking method -- Thermal transfer|Technical data - Marking -- PE|Technical data - Marking (number) -- 100|Technical data - Marking direction -- Horizontal marking|Technical data - Marking color -- black|Technical data - Marking type -- Symbol|Technical data - Marking differentiation -- Same symbols per strip|Technical data - Delivery form -- Marker card|Technical data - Delivery form configuration -- 10 strips with 10 markers per card|Physical data - Height -- 152mm / 5.984"|Physical data - Width -- 56.8mm / 2.236"|Physical data - Depth -- 3.2mm / 0.126"|Physical data - Marker/strip width -- 5mm|Physical data - Marker width -- 5mm|Mechanical data - Smear resistance -- EN 60998-12004|Material data - Color -- white|Material data - UV resistance -- EN 60068-2-52010 Procedure B|Material data - Halogen-free -- Yes|Material data - Weight -- 6.2g|Material data - Fire load -- 0.185MJ|Commercial data - Product Group -- 2 (Terminal Block Accessories)|Commercial data - eClass 10.0 -- 27-14-11-37|Commercial data - eClass 9.0 -- 27-14-11-37|Commercial data - ETIM 9.0 -- EC000761|Commercial data - ETIM 8.0 -- EC000761|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 5 pcs|Commercial data - Packaging type -- bag|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4055143695145|Commercial data - Customs tariff number -- 49119900000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
  • Level 1 category: Cabling systems
  • Level 2 category: Labelling

Commercial data

  • Country of origin: DE
  • Customs tariff number: 49119900000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-14-11-37
  • eCl@ss 9.0: 27-14-11-37
  • ETIM 8.0: EC000761
  • ETIM 9.0: EC000761
  • GTIN: 4055143695145
  • Packaging type: bag
  • Product Group: 2 (Terminal Block Accessories)
  • PU (SPU): 5 pcs

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Material data

  • Color: white
  • Fire load: 0.185MJ
  • Halogen-free: Yes
  • UV resistance: EN 60068-2-5:2010 Procedure B
  • Weight: 6.2g

Mechanical data

  • Smear resistance: EN 60998-1:2004

Physical data

  • Depth: 3.2 mm / 0.126 inches
  • Height: 152 mm / 5.984 inches
  • Marker width: 5mm
  • Marker/strip width: 5 mm
  • Width: 56.8 mm / 2.236 inches

Technical data

  • Delivery form: Marker card
  • Delivery form configuration: 10 strips with 10 markers per card
  • Marking: PE
  • Marking (number): 100
  • Marking color: black
  • Marking differentiation: Same symbols per strip
  • Marking direction: Horizontal marking
  • Marking method: Thermal transfer
  • Marking type: Symbol
