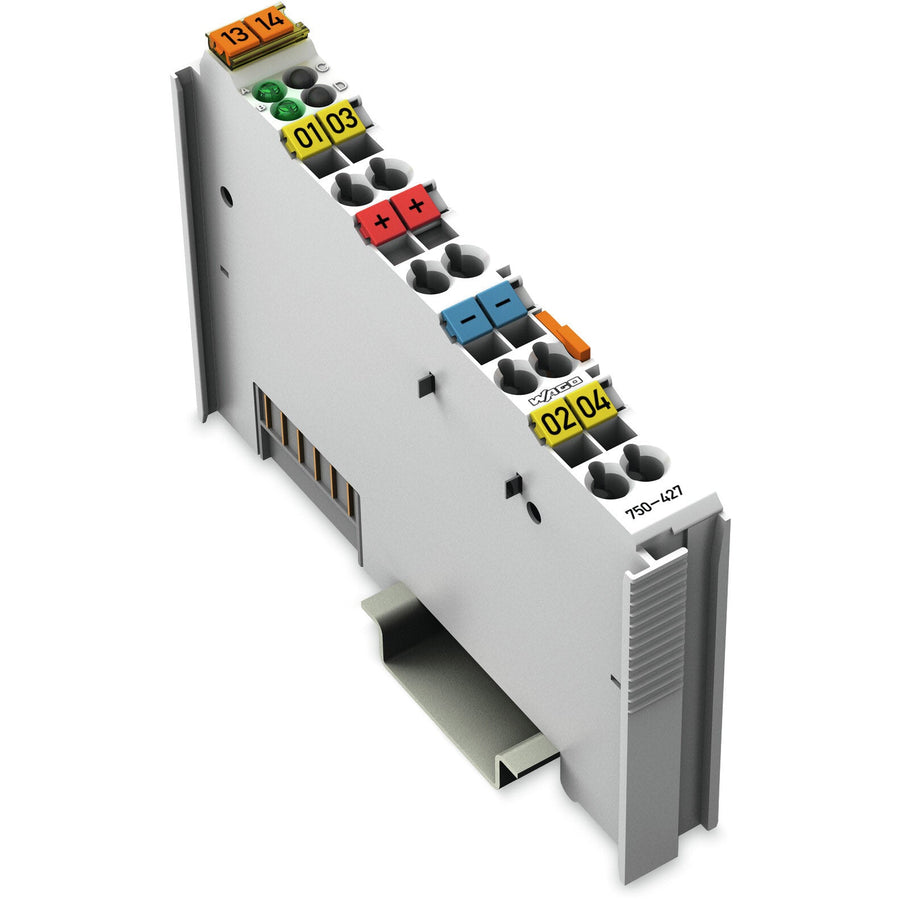

Standard DC digital input slice unit module - WAGO (750 series) - 2DI; 110Vdc - 2I/O [2DI (2 x digital inputs (110Vdc transistor; configurable high-side / low-side switching; 2-wire; 3ms filter))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750427

Specifications

• Primary brand: WAGO
• Functions: Standard DC digital input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|88-137.5Vdc adjustable suppl. to field sensing devices
• Display: LED (A/B) green -- Status DI 1 / DI 2
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Digital inputs: 2 x digital inputs (110Vdc transistor; configurable high-side / low-side switching; 2-wire; 3ms filter)|Digital input voltage ranges -14...+50Vdc (OFF) / -70...+143Vdc (ON)
• Dimensions: H100mm x W12mm x D69.8mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 2.5mA (5Vdc; system supply)
• Customs Tariff Number: 85389099990
• eClass code: 27-24-26-04
• ETIM code: EC001599
• Order code / Manufacturer SKU: 750-427
• Manufacturer product status: Commercialized
• Equivalent to: 750427
• EAN code: 4045454540180
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-3|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03080|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (7(a) / 7(c)-I)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard DC digital input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 8 x CAGE CLAMP^® (inputs)
• Connection type 1: Input
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1317-36-8|7439-92-1|79-94-7|7439-92-1|79-94-7
• REACH Candidate List Substance: Lead monoxide|Diboron trioxide|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I
• SCIP notification number (Austria): cf1aa558-52fe-4131-bb0f-5b7e854caae7
• SCIP notification number (Belgium): 351890c6-81a1-4982-9495-8d068138e1f7
• SCIP notification number (Bulgaria): 621a3245-5613-4e84-a98c-e5fe76d8da31
• SCIP notification number (Czech Republic): 17f70fa7-b851-460b-bad6-1a1c2f95222f
• SCIP notification number (Denmark): c56468b7-d25e-42a3-b680-3d40c9d50af6
• SCIP notification number (Finland): cfb5f3d7-ba33-476c-91de-b9de79e96819
• SCIP notification number (France): f0989ef2-e262-4b4b-8aea-e4c914ecbdae
• SCIP notification number (Germany): cab925c4-9c24-49c7-ac73-030b9fad111f
• SCIP notification number (Hungary): 11d05b7a-6d31-4340-b8e3-9b0c05873ee6
• SCIP notification number (Italy): 306c58e4-21c1-4299-9eba-c81689f19261
• SCIP notification number (Netherlands): 961810cc-470c-483a-bf4b-87920b095b00
• SCIP notification number (Poland): 8094b10e-6252-423a-bde0-024d514c70e3
• SCIP notification number (Romania): ce7052f8-cbe2-4b0a-a5e2-c7eb7f498646
• SCIP notification number (Sweden): b8817650-f051-4582-983b-113487fd7e0c

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3
• EMC immunity to interference: per EN 61000-6-2
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 1.017MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 47.4g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: fixed

Physical data

• Depth: 69.8 mm / 2.748 inches
• Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Current carrying capacity (power jumper contacts): 10A
• Current consumption (5 V system supply): 2.5mA
• Indicators: LED (A, B) green: Status DI 1, DI 2
• Input characteristic: high-side/low-side switching, configurable
• Input current per channel for signal (1) typ.: 2.5mA
• Input data width (internal) max.: 2bits
• Input filter (digital): 3ms
• Isolation: 1500 V (system/field)
• Number of digital inputs: 2
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Sensor connection: 2 x (2-wire)
• Sensor supply: 110 VDC
• Signal type: Digital
• Signal type (voltage): 110 VDC
• Supply voltage (field): 110 VDC (-20 … +25 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Total number of channels (module): 2
• Voltage range for signal (0): −14 … +50 VDC
• Voltage range for signal (1): 70 … 143 VDC
