WAGO - 750-486

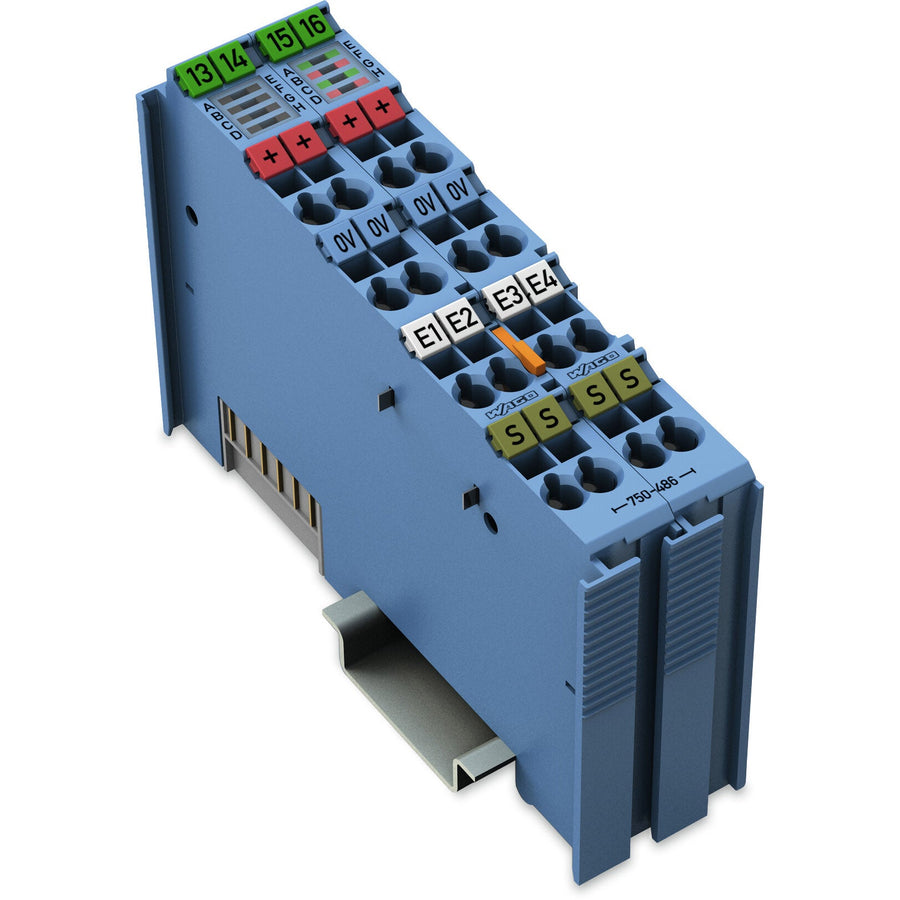

Intrinsically-safe analog input slice unit module - WAGO (750 series) - 4AI; 0/4-20mA; NE43; Ex i - 4I/O [4AI (4 x analog inputs (0-20mA / 4-20mA; Single-ended; 12-bits / 10ms conversion; 2-wire))] - supply voltage 5Vdc (supplied by system) - with spring CAGE CLAMP connections - DIN-35 rail mounting (24mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 750486

Specifications

• Primary brand: WAGO
• Functions: Intrinsically-safe analog input slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|24Vdc fixed suppl. to field sensing devices
• Display: LED (A/E/C/G) green -- Function AI 1...AI 4|LED (B/F/D/H) red -- Error AI 1...AI 4
• Connection type: spring CAGE CLAMP connections
• Mounting mode: DIN-35 rail
• Analog inputs: 4 x analog inputs (0-20mA / 4-20mA; Single-ended; 12-bits / 10ms conversion; 2-wire)
• Measurement accuracy: +-0.1% (measuring error)|+-0.01% (temperature error)
• Dimensions: H100mm x W24mm x D67.8mm
• Net Width (mm): 24mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 45mA (5Vdc; system supply)|19mA (field supply; no external load)
• Power consumption: 2.7W
• ETIM code: EC001596
• Customs Tariff Number: 85389099990
• eClass code: 27-24-26-01
• Power dissipation/losses: 1.5W
• Order code / Manufacturer SKU: 750-486
• Manufacturer product status: Commercialized
• Equivalent to: 750486
• EAN code: 4055143516044
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-AIM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Ex-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Ex-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV12ATEX106032X (Ex ec[iaGa] IIC T4 Gc / [Ex iaDa] IIIC / [Ex iaMa] I)|- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000211 (Ex ec[iaGa] IIC T4 Gc / [Ex iaDa] IIIC / [Ex iaMa] I)|- IECEx - TUV Nord Cert GmbH - IEC 60079 / IEC 60079-0 - certificate IECEx TUN12.0039X (Ex ec[iaGa] IIC T4 Gc / [Ex iaDa] IIIC / [Ex iaMa] I)|- INMETRO - TUV Rheinland do Brasil Ltda. - certificate TUV_14.1911_X|- KTL - Korea Testing Laboratory - KOSHA Article 34 / IEC60079-0 - certificate 20-KA4BO-0606X|- UKEx - Element Materials Technology UK - certificate EMA21UKEX0069X|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Intrinsically-safe analog input slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-01
• eCl@ss 9.0: 27-24-26-01
• ETIM 8.0: EC001596
• ETIM 9.0: EC001596
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: inputs/outputs: 16 x CAGE CLAMP^®
• Connection type 1: Inputs/outputs
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 549055d6-6f9f-4c9d-b855-7486a1d6cb3a
• SCIP notification number (Belgium): 7c5e0ec5-4b5c-495e-85ab-8c4b17d0b137
• SCIP notification number (Bulgaria): 485c2c34-1cda-4cc4-a49f-bdbe01d8d580
• SCIP notification number (Czech Republic): 474cd881-197a-4e7f-9d9d-56ae52483311
• SCIP notification number (Denmark): 7f8cc8a2-4c17-4246-901a-f36a098de931
• SCIP notification number (Finland): 7602d62b-94b5-44a6-8da6-ccfea8ef5ecf
• SCIP notification number (France): 60a2160b-b980-4efb-ba16-b12cd1cabb0d
• SCIP notification number (Germany): 9e11c3b8-9702-4919-a91b-bda35f90810c
• SCIP notification number (Hungary): 8119bf7f-3b21-48b7-ab84-a594bf80a530
• SCIP notification number (Italy): 40b21ee0-9bc8-486f-9958-c6e22e9afb1b
• SCIP notification number (Netherlands): 97e4e9f6-cc3f-4289-9a68-d071c0e6fa99
• SCIP notification number (Poland): f0ea8734-9828-4e42-86bd-3c858df8aa95
• SCIP notification number (Romania): 8d08dea9-f978-4ce4-9dc1-dcf3e759b55f
• SCIP notification number (Sweden): c378fdab-274a-422c-a91c-1e8be031c67d

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -25 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Explosion protection

• Ex standard: EN IEC 60079-0, -7, -11
• Identification: ATEX
  II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
  II (1) D [Ex ia Da] IIIC
  I (M1) [Ex ia Ma] I|IECEx/ INMETRO
  Ex ec [ia Ga] IIC T4 Gc
  [Ex ia Da] IIIC
  [Ex ia Ma] I
• Reactances (note): Reactances without accounting for the concurrence of capacitance (C_o) and inductance (L_o)
• Reactances Ex ia I: L_o = 31 mH; C_o = 3.6 µF
• Reactances Ex ia IIA: L_o = 22 mH; C_o = 2.28 μF
• Reactances Ex ia IIB: L_o = 13 mH; C_o = 683 nF
• Reactances Ex ia IIC: L_o = 970 µH; C_o = 88 nF
• Safety-relevant data (circuit): U_o = 27.3 V; I_o = 98.4 mA; P_o = 0.672 W; linear characteristic curve

Material data

• Color: blue
• Conformity marking: CE
• Fire load: 2.033MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 116g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note:

  The analog input module must only be operated via 24 VDC Ex i!

  General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Physical data

• Depth: 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
• Height: 100 mm / 3.937 inches
• Width: 24 mm / 0.945 inches

Technical data

• Conversion time (typ.): 10ms
• Current carrying capacity (power jumper contacts): 1A
• Current consumption (5 V system supply): 45mA
• Current consumption, field supply (module with no external load): 19mA
• Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
• Indicators: LED (A, E, C, G) green: Function AI 1 … AI 4; LED (B, F, D, H) red: Error AI 1 … AI 4
• Input resistance (max.): 200Ω
• Intrinsically safe Ex i: Yes
• Isolation: UM = 375 V system/supply
• Item description: 4-Channel Analog Input; 0/4 … 20 mA; NAMUR NE43
• Measurement error (reference temperature): 25°C
• Measurement error, deviation (max.) from the upper-range value: ±0.1%
• Number of analog inputs: 4
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Power consumption P_max.: 2.7 W (at 4 x 21 mA signal current)
• Power loss P_l: 1.5 W (at 4 x 21 mA signal current)
• Resolution [bit]: 12bits
• Sensor connection: 2 x (3-wire)
• Sensor supply: 15 VDC
• Signal characteristics: Single-ended
• Signal type: Current
• Signal type (current): 0 … 20 mADC; 4 … 20 mADC; 3.6 … 21 mADC
• Supply voltage (field): 24 VDC; (Ex i power supply: U_o = max. 26.8 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Supply voltage (system): 5 VDC; via data contacts
• Temperature error (max.) of the upper-range value: ±0.01%/K
• Total number of channels (module): 4
