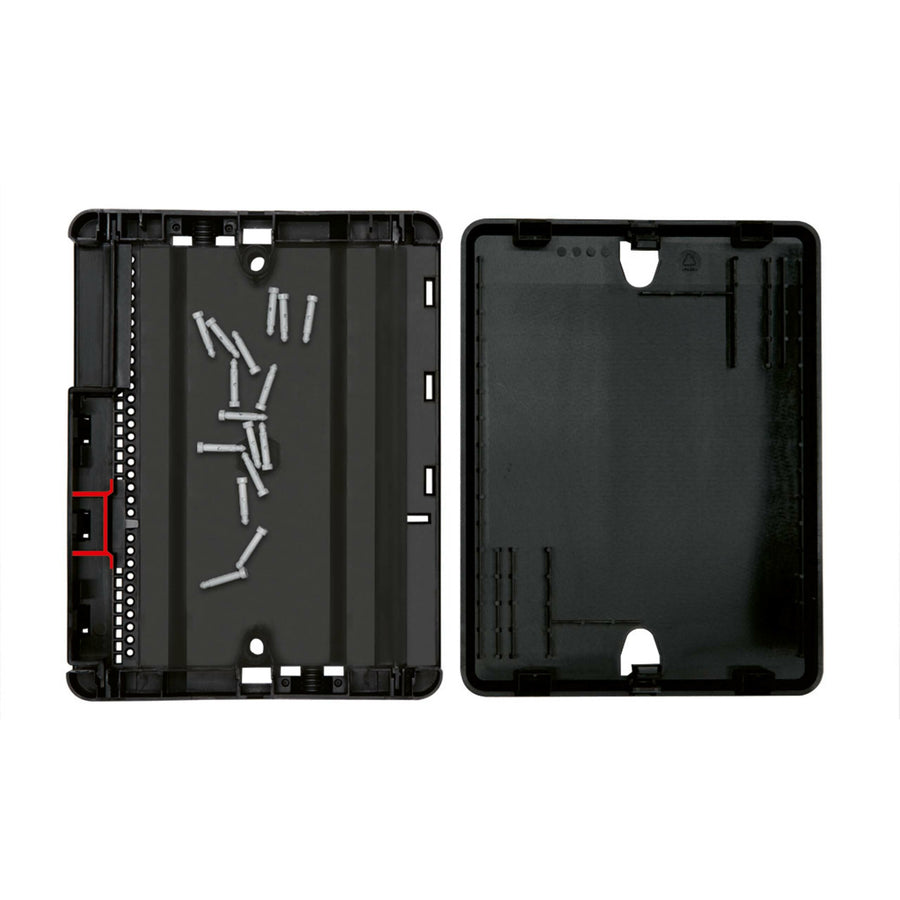

WAGO - 899-632

WAGO component - equivalent to 899632

Specifications

• Primary brand: WAGO
• GTIN code: 4055143315623
• Order code / Manufacturer SKU: 899-632
• Manufacturer product status: Commercialized
• Equivalent to: 899632
• EAN code: 4055143315623
• Manufacturer description: Distribution box; for self-assembly; black
• Manufacturer product specifications: Notes - Note -- For easy cable connection; do not arrange the connectors directly next to each other in the distribution box.|Physical data - Width -- 190mm / 7.48"|Physical data - Height -- 30mm / 1.181"|Physical data - Depth -- 145mm / 5.709"|Mechanical data - Use -- Self-assembly|Mechanical data - Design -- with integrated DIN-rail|Mechanical data - Mounting type -- Wall; screw mount / Installation on mounting plate|Material data - Color -- black|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Fire load -- 5.763MJ|Material data - Weight -- 186.8g|Environmental requirements - Processing temperature -- -5...+40°C|Environmental requirements - Continuous operating temperature -- -35...+85°C|Environmental requirements - Note on continuous operating temperature -- Insulating parts for temperatures ≤ 105°C|Commercial data - eClass 10.0 -- 27-44-06-03|Commercial data - eClass 9.0 -- 27-44-06-03|Commercial data - ETIM 9.0 -- EC002567|Commercial data - ETIM 8.0 -- EC002567|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 1 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4055143315623|Commercial data - Customs tariff number -- 85366990990|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Germany
• Level 1 category: Electrical components

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-06-03
• eCl@ss 9.0: 27-44-06-03
• ETIM 8.0: EC002567
• ETIM 9.0: EC002567
• GTIN: 4055143315623
• Packaging type: box
• PU (SPU): 1 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C
• Processing temperature: -5 … +40 °C

Material data

• Color: black
• Fire load: 5.763MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Note (material data):
  Information on material specifications can be found here

• Weight: 186.8g

Mechanical data

• Design: with integrated DIN-rail
• Mounting type: Wall, screw mount|Installation on mounting plate
• Use: Self-assembly

Notes

• Note: For easy cable connection, do not arrange the connectors directly next to each other in the distribution box.

Physical data

• Depth: 145 mm / 5.709 inches
• Height: 30 mm / 1.181 inches
• Width: 190 mm / 7.48 inches
